YB-JG4 Peanut Butter Sauce Honey Jar Filling and Capping Machine

暂无价格
收藏
  • 商品说明

YB-JG4 Peanut Butter Sauce Honey Jar Filling and Capping Machine


Usage: This machine is mainly used for peanut butter, honey, sauce, jam, mayonnaise, fruit jam, or oil filling and capping.
Function and features:

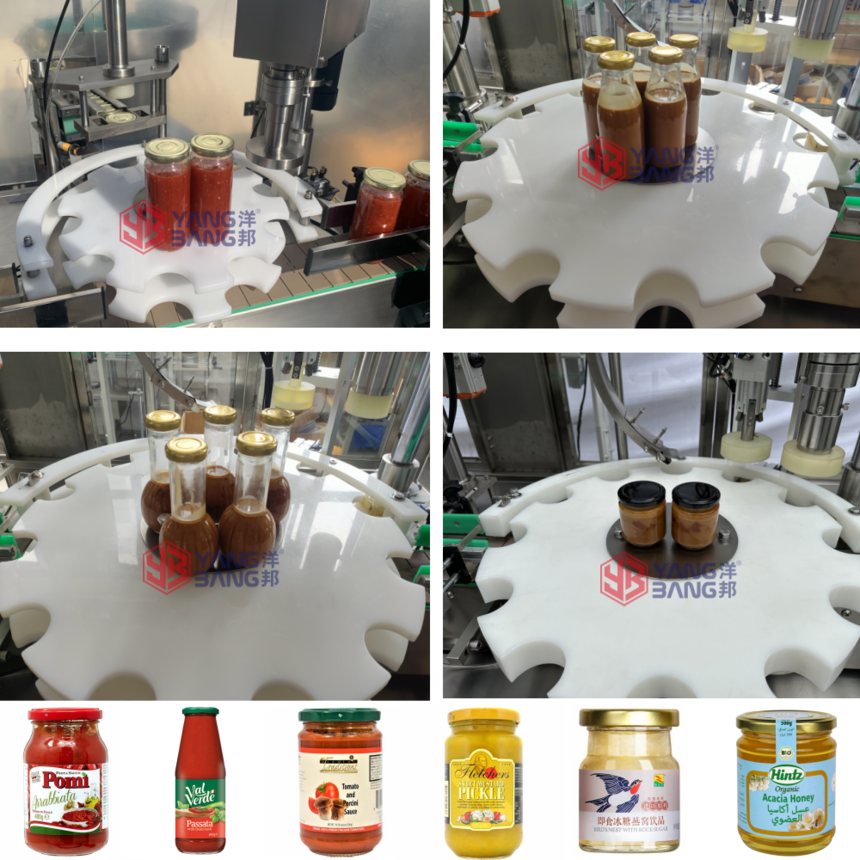

1.Suitable for various shapes container (round, flat, oval, etc).

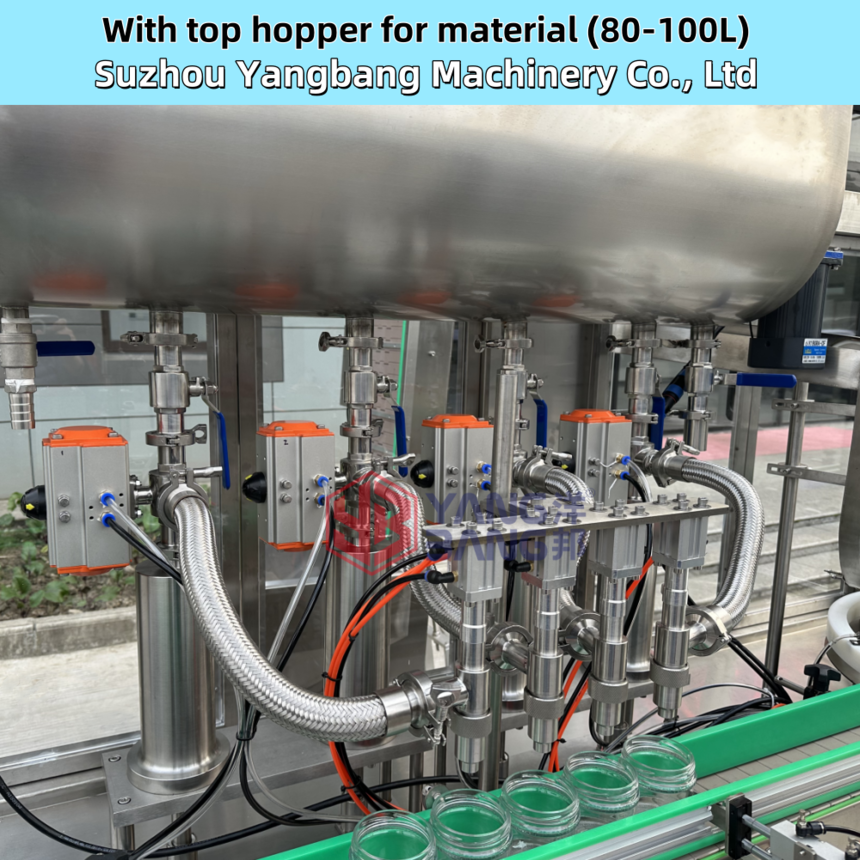

2.Adopts plunger type metering pump filling, servo motor control working, high precision;
3.PLC control system, color touch screen display.
4.Filling volume can be adjusted by touch screen, more convenient and easy to operate.
5.Machine body and product contact parts are made by high quality SS316 and SS304 material.

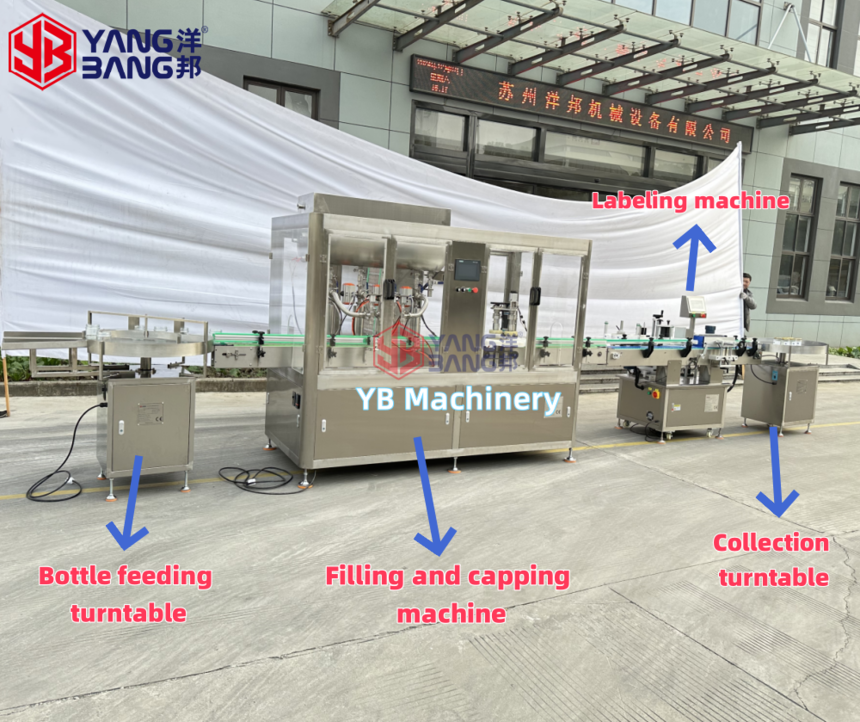

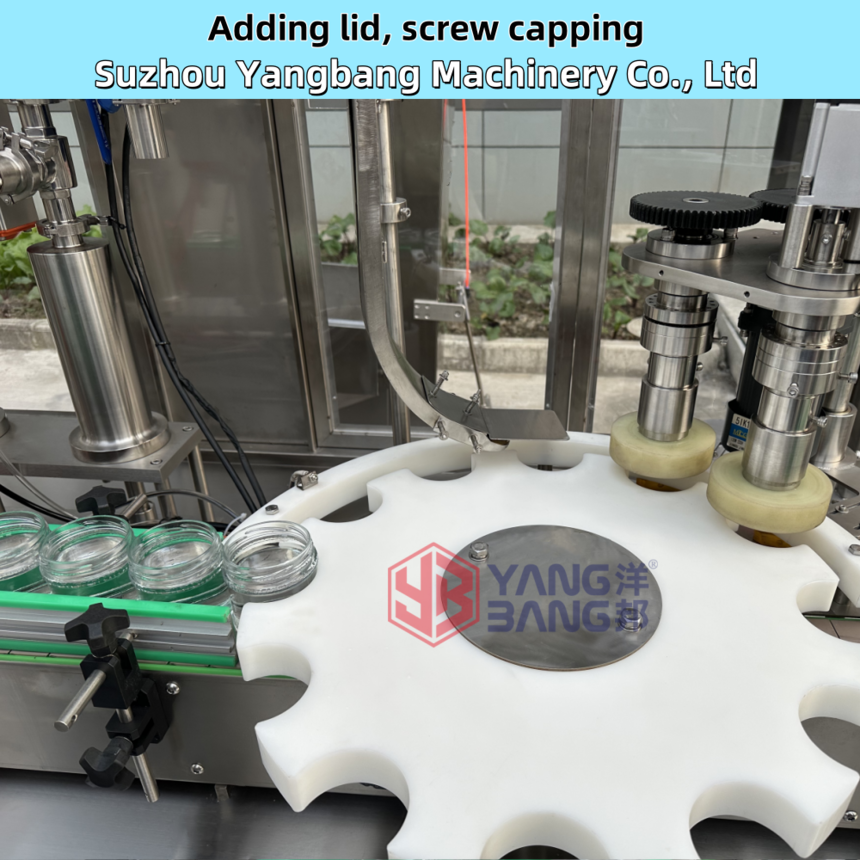

6.Automatic filling product, feed caps/lids and screw/press capping for bottles.
7.Full compliance with GMP standard.


Technical parameters:

Model

YB-JG4

Filling nozzle

4

Capping head

1

Filling volume

200-800g (can be customized)

Filling speed

About 20-25 bottles/min

Filling accuracy

≤ ±1% (depends on product)

Capping rate

≥ 99%

Total power

8.5 KW

Power supply

3 Phase 380V, 50/60Hz

Machine size

L3000 × W1800 × H2250mm

Net weight

About 800kg






×
