YB-Y4 Automatic eye drop bottle filling line

暂无价格
收藏
  • 商品说明

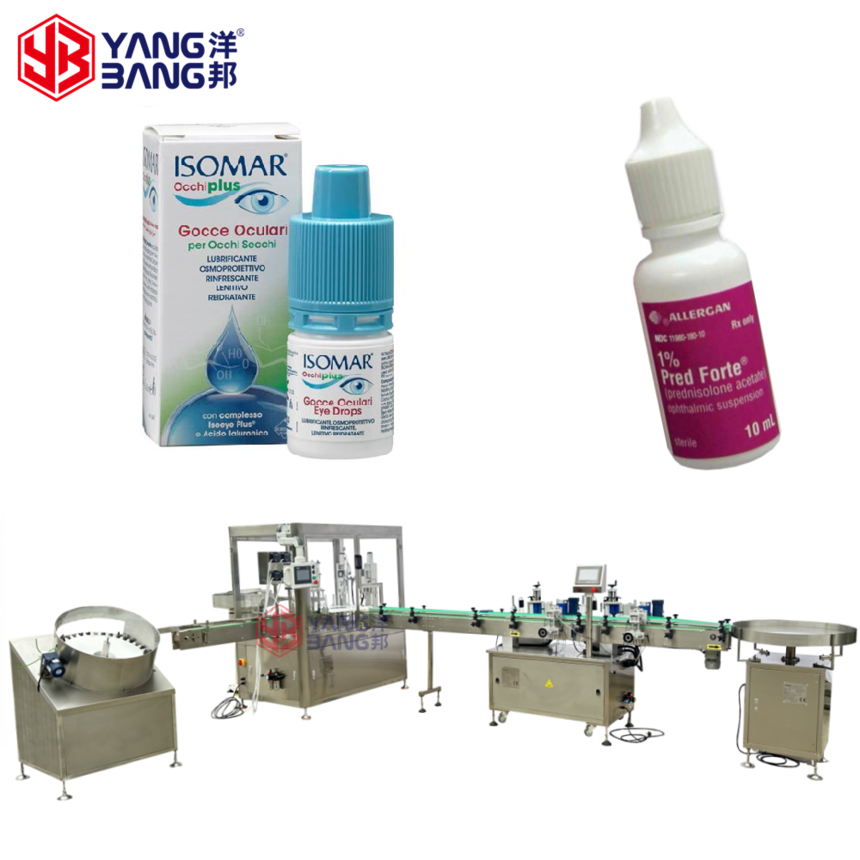

YB-Y4 Automatic eye drop bottle filling line



Usage:

This machine is mainly used for automatic filling and capping eye drop, nasal spray, e-liquid, essential oil, nail polish, eyeliner, mascara, etc.



Machine features:

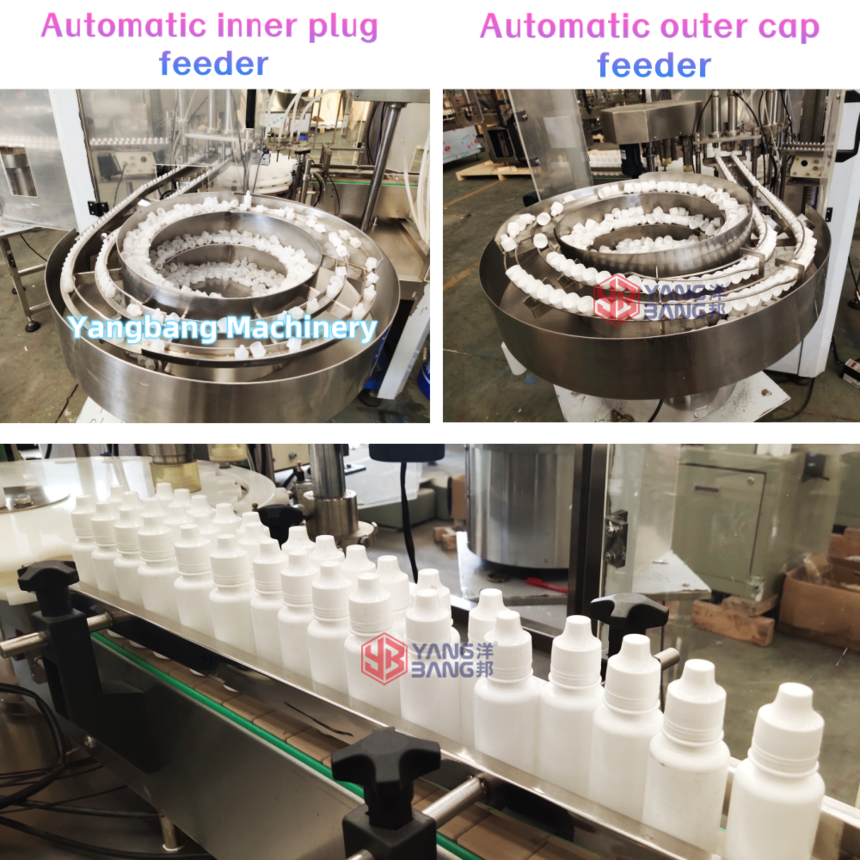

1. Workflow: bottle feedingfillingadding inner plug and outer capcapping→self adhesive labeling→ribbon printing /inkjet printing (optional)→bottle collecting.

2. This machine use a mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.

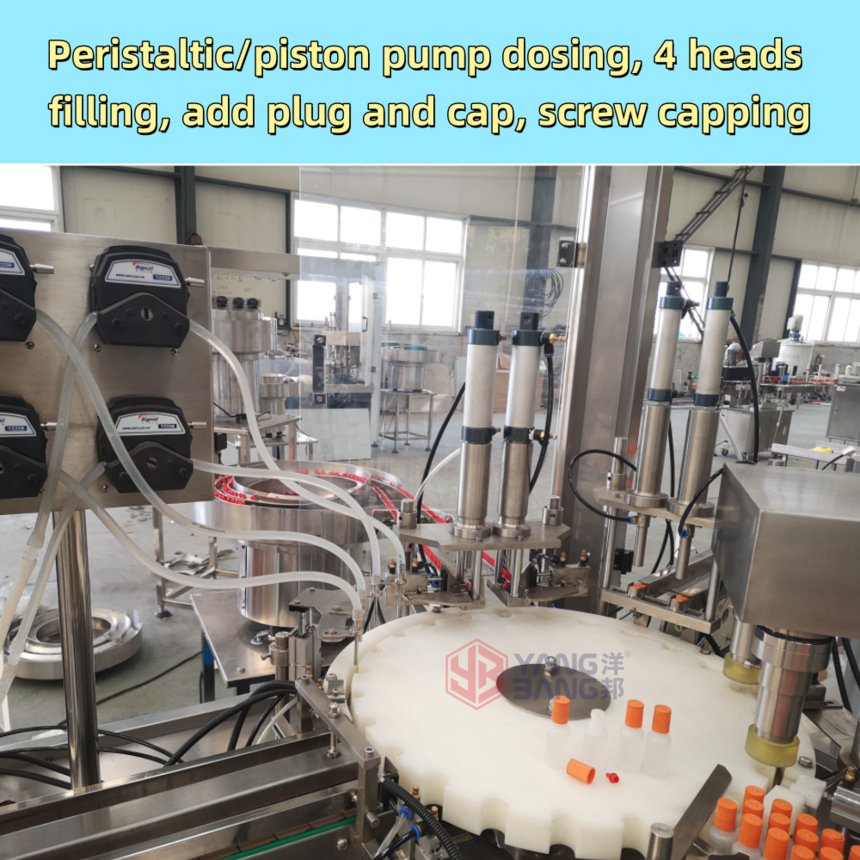

3. Piston pump measuring, accurate measurement, easy to control.

4. Color touch screen display, PLC control system, no bottle no filling, no bottle no capping.

5. The whole line is compact, high speed, high degree of automation, save the manpower cost.

6. Machine with plex-glass safety door.

7. Main electrical elements adopt foreign well-known brands.

8. Filling nozzles are made by 316 stainless steel.

9. Machine body is made of 304 stainless steel, easy to clean, machine, meets GMP requirements.



jisTechnical parameters:


Filing nozzle

4

Capping head

2

Filling volume

5-100ml

Filling speed

About 20-55 bottles/min

Filling accuracy

≤ ±1% (depends on product)

Capping rate

≥ 98%

Total power

2.5 KW

Power supply

1 Ph. AC220V, 50/60Hz

Overall dimension

L2800 × W1800 ×H1850mm

Net weight

About 750kg







×
