YB-ZXB Automatic Grabbing Type Packing Machine for Box
收藏

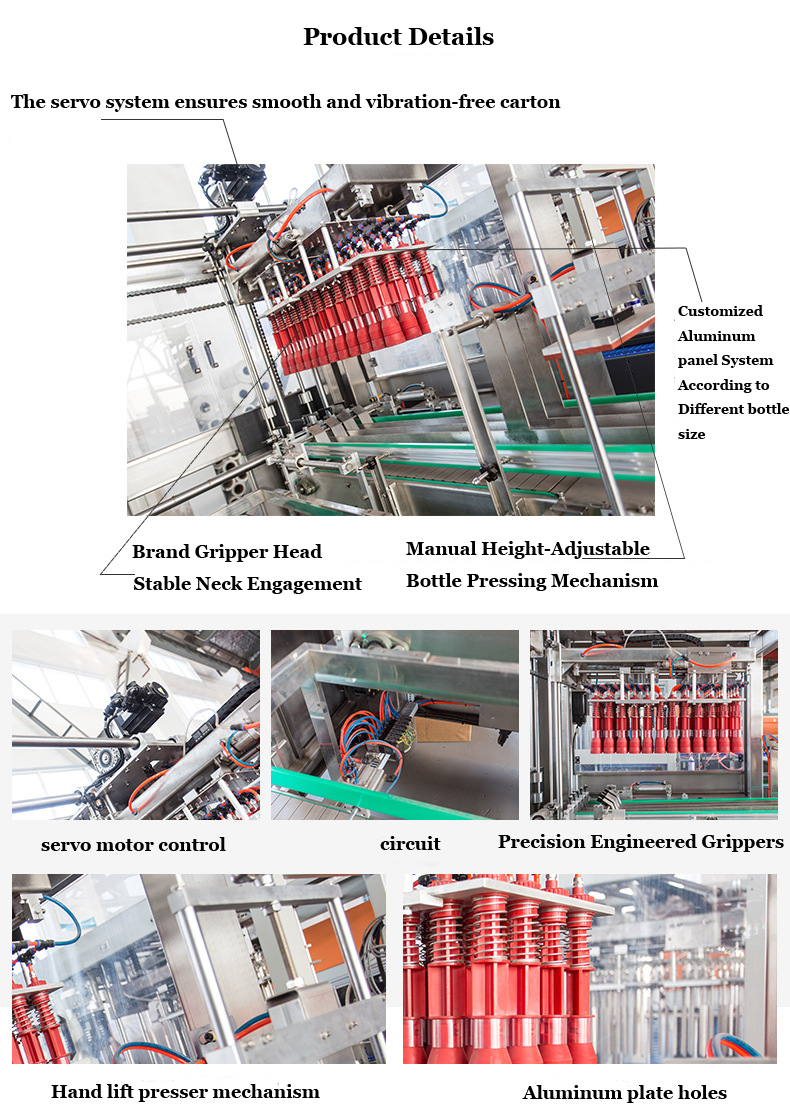

Product specification 1.Bottle Gripper Custom-designed gripping mechanisms tailored to different bottle shapes. Mechanical grippers with high-strength plastic contact surfaces ensure scratch-free handling of bottle necks. 2.Lifting Mechanism for Gripper Assembly Driven by symmetrical dual swing arms moving along precision-engineered arc-shaped tracks for bottle pickup and placement. Compact design with high precision and stability. 3.Conveyor System Bottles are fed via an infeed conveyor to a staging area. Dividing plates arrange bottles into rows, which are then transported to the pickup position. 4.Carton Stopper Unit Cartons remain stationary during loading; empty cartons are fed simultaneously post-loading to maximize efficiency. 5.Servo Motor Variable frequency motor with inverter control enables stepless speed adjustment. 6.Bottle/Carton Conveyors Asynchronous motors drive conveyors, with inverter or contactor control for automated bottle/carton feeding and discharging. 7.Gripper Assembly Comprises multiple gripper sets, each handling a specified number of bottles. Pneumatic cylinders adjust spacing between gripper groups. 8.Safety Features Equipped with safety doors and protective sensors to ensure operator safety. 9.PLC Troubleshooting Function Open-architecture touchscreen interface for intuitive operation. Built-in fault codes and solutions displayed on the HMI for rapid maintenance. Adjustable runtime parameters to enhance operational efficiency. Features and advantages: ① Equipped with safety guards compliant with national standards. ② Side-loading bottle feeding: Saves floor space and simplifies the conveyor system before the cartoning machine, reducing overall production line costs. ③ Swing-arm mechanism: Advanced and optimized structure for smoother, lighter, and more stable operation with lower power consumption. ④ Four-stage pressure reduction system: 1st stage: Speed difference between the infeed conveyor and front-end conveyor. 2nd stage: Pneumatic bottle stopper. 3rd & 4th stage: Dual pneumatic cylinder buffering at the conveyor end. Ensures precise bottle alignment and pressure-free transfer, minimizing bottle tipping during loading. ⑤ German IGUS linear positioning system: High-precision positioning and accurate motion control, reducing impact and vibration during operation. Maintenance-free, lubrication-free, with excellent hygiene and long service life, enhancing machine stability and reliability.
|
