YB-FS800 Automatic PE Film Heat Shrink Wrap Packing Machine for Beverage Water Bottle Jars Daily Necessities Wrapping Tunnel

YB-FS800 Automatic PE Film Heat Shrink Wrap Packing Machine for Beverage Water Bottle Jars Daily Necessities Wrapping Tunnel

Submit
Product Specifications
Technical parameter
Details Images

YB-FS800 Automatic PE Film Heat Shrink Wrap Packing Machine for Beverage Water Bottle Jars Daily Necessities Wrapping Tunnel

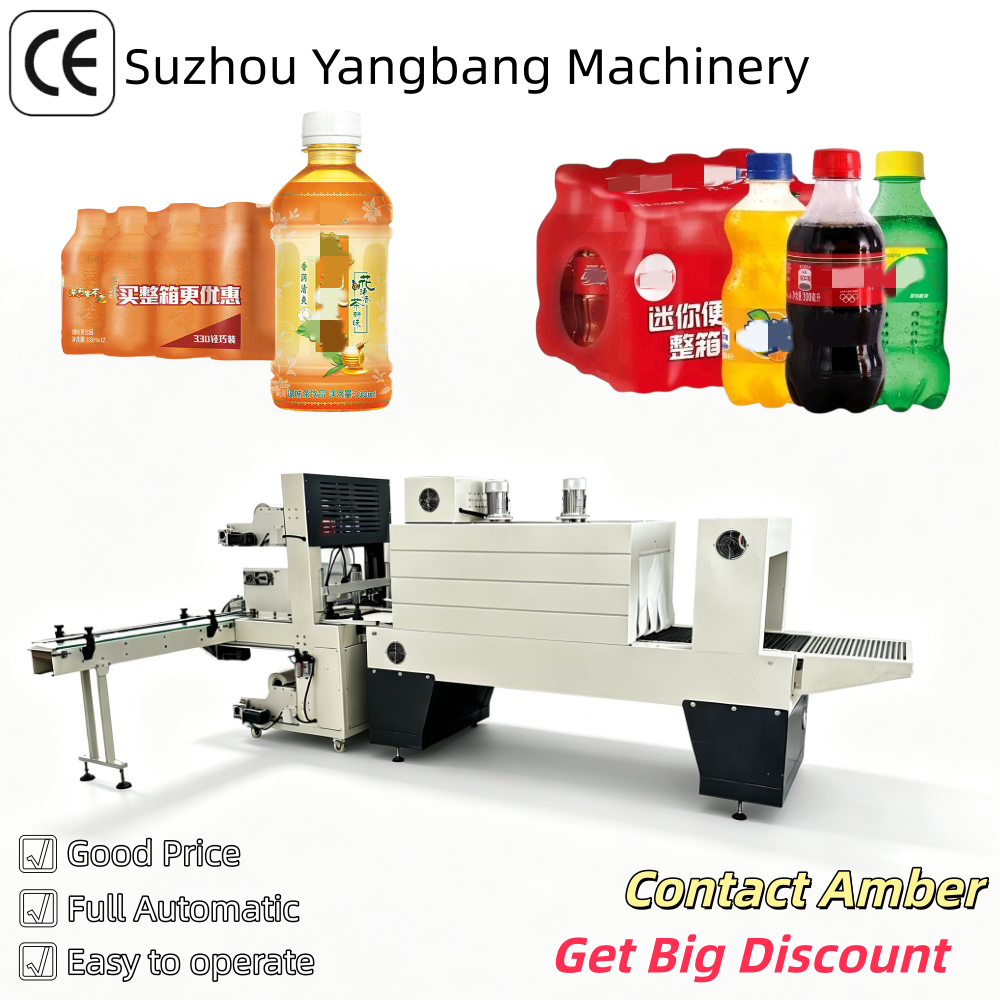

FS800 Main Picture 3_Copy

Usage

This machine is mainly used for fully automatic shrink packaging of beer, beverages, purified water, fruit juice, jam, dairy products, cosmetics and other products.

Machine features
1. Workflow: entering the bottle→quantitative measurement→pushing bottle→wrapping film→ sealing and cutting→shrinking→cooling and
shaping→output.
2.PLC control, color touch screen display, machine has function of counting automatically.
3. The fully automatic cuff type shrink packaging machine is designed for individual objects or products without bottom support, it can be packaged in various forms such as 6 bottles, 9 bottles, 12 bottles, 15 bottles, 18 bottles, 20 bottles, 24 bottles, etc.
4.The induction switch controls the film delivery system, reliably regulating the length of the film delivery and reducing losses.
5. Unique contraction channel, two sets of centrifugal hot air circulation systems, evenly balanced heat, tight contraction, and beautiful
appearance.
6.Three layers insulation treatment, good insulation performance, fast heating, and energy-saving.
7.Equipped with reinforced cooling and shaping channels.
8. It is convenient to adjust when change the packaging combination and bottle type, can achieve the function of one machine for multiple purposes.
9. Main electrical components adopt foreign well-known brands.
10.Machine frame is made of carbon steel/spray plastic material.


Technical parameter
Model
YB-FS800
Sealing Method
Cuff type
Film material
PE
Maximum packing size
L:420mm W:320mm H:320mm
Maximum film size
W: 800mm Outer diameter:280mm
Speed
10-15 packages/min
Voltage
3Ph. 380V, 50/60Hz
Power
21KW
Heat shrink furnace body size
L:1500mm W:600mm H:400mm
Net weight
700kg
Heat shrink machine conveyor speed
850-950mm


1788445046954141442284126208.png@!w400

1788445047954141443894738944.png@!w400

1788445049954141453692633088.jpg@!w400


About Us

Our Suzhou Yangbang Machinery Co., Ltd factory covers an area of over 20 acres, with modern factories covering nearly 20000 square meters and more than 100 employees. Our factory has established the engineering technology research center for complete filling and packaging machines, with a team of over 20 R&D engineers. Our filling and production lines are widely used for eye drop, oral liquid, injection, disinfectant, capsules, tablets, health care products, protein powder, water, juice, energy drink, wine, medicinal wine, honey, food paste, yogurt, essential oil, perfume, mosquito repellent liquid, nail Polish, mascara, eyeliner liquid, lip gloss, lipstick, face cream, shampoo, bath cream, detergent, veterinary medicine, pesticide and other products. Our packaging and production lines are widely used for food, commodity, medince and cosmetic products. Over the years, Yangbang people have grown and grown in difficult environment, relying on the spirit of hard work, perseverance, and optimism, and have gradually formed a corporate culture with Yangbang characteristics.

Pictures of the gate of Yangbang Machinery Factory
稿定设计-2
Exterior view of Yangbang Machinery factory workshop

Production and Equipment

  • Yangbang Machinery Production Workshop
  • Packaging Machinery Workshop
  • Yangbang Machinery Workshop
  • machine tool
  • Machine Tool Machining
  • Milling
  • CNC Machine Tool Milling
  • Yangbang Machinery Product Showcase
  • Packaging Machinery Workshop

FAQ

Q1: Are you a factory or trading company?
A:Suzhou Yangbang Machinery is a factory who has 25 years experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 25 years, and now we have our own brands and own designed machines for sale!
Q2: How long you need to ship the machines after order?
A: All machines can be ready and shipped in 15 or 30 days after order!
Q3: What's the payment you prefer?
A: We accept TT/Western union/Cash/LC, Trade assurance order.
Q4:Why should I choose your packing and filling machine ?
A:We have been specialized in filling and packing machine for more then ten years,and until now have exported machines to more than 100 countries.
Q5:What is your warranty and after-sale service?
A:One year warranty and lifelong after-sale service via skype/email/mobile/whatsapp/etc. Also technical service overseas is available.
Q6:Can I visit your factory and send team for learning and inspect?
A: Yes sure no problem.We will do our best to teaching you how to use the machine.
Q7:What is our advantages?
1. Competitive price.
2. Excellent technical support.
3. Best service and best after-sale service.
4. Over 25 years experience.
