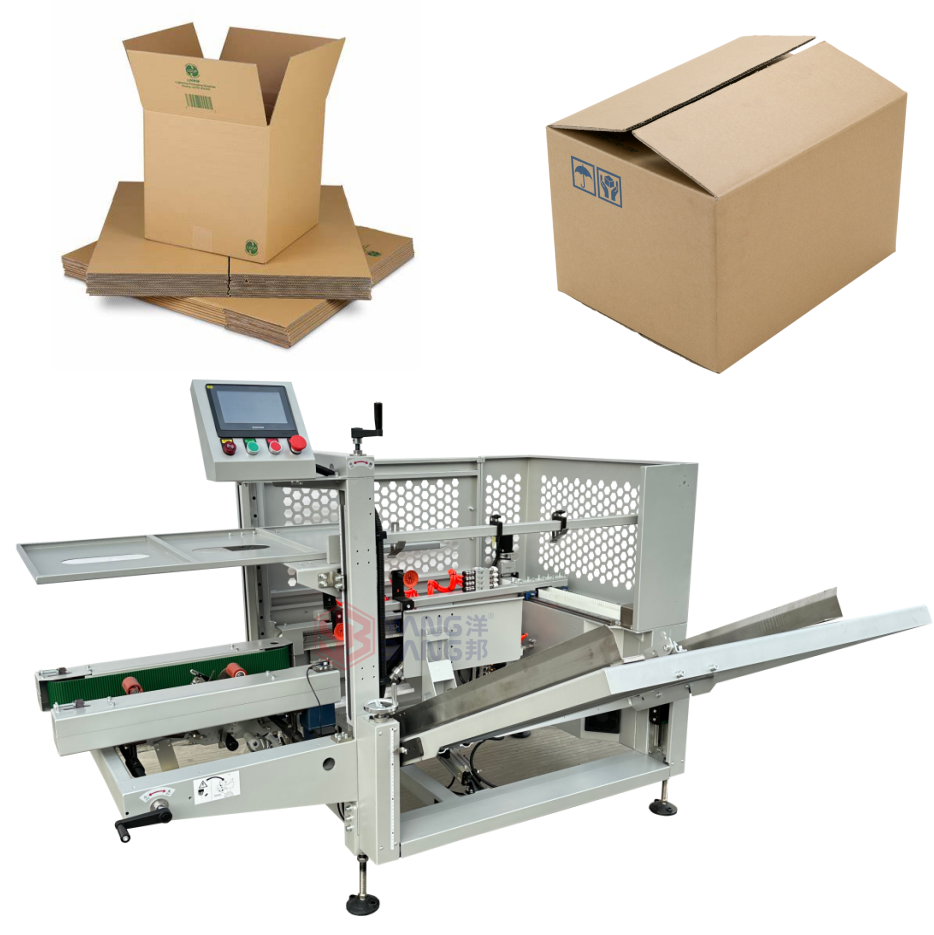

Multi Function YB-DK500 Automatic Case Erector Machine Box Taping Machine Automatic Carton Erector Packing Machine

Multi Function YB-DK500 Automatic Case Erector Machine Box Taping Machine Automatic Carton Erector Packing Machine

  • Multi Function YB-DK500 Automatic Case Erector Machine Box Taping Machine Automatic Carton Erector Packing Machine
  • Multi Function YB-DK500 Automatic Case Erector Machine Box Taping Machine Automatic Carton Erector Packing Machine
  • Multi Function YB-DK500 Automatic Case Erector Machine Box Taping Machine Automatic Carton Erector Packing Machine
  • Multi Function YB-DK500 Automatic Case Erector Machine Box Taping Machine Automatic Carton Erector Packing Machine
  • Multi Function YB-DK500 Automatic Case Erector Machine Box Taping Machine Automatic Carton Erector Packing Machine
  • Multi Function YB-DK500 Automatic Case Erector Machine Box Taping Machine Automatic Carton Erector Packing Machine

Automatic case erector and box taping machine with servo drive, low noise, easy operation, and seamless integration for packaging lines.
Submit
PRODUCT SPECIFICATIONS
Technical parameter
Details Images

Machine feature and function:

1.This machine has a simple structure, convenient operation, easy maintenance, and is widely used in various industries.

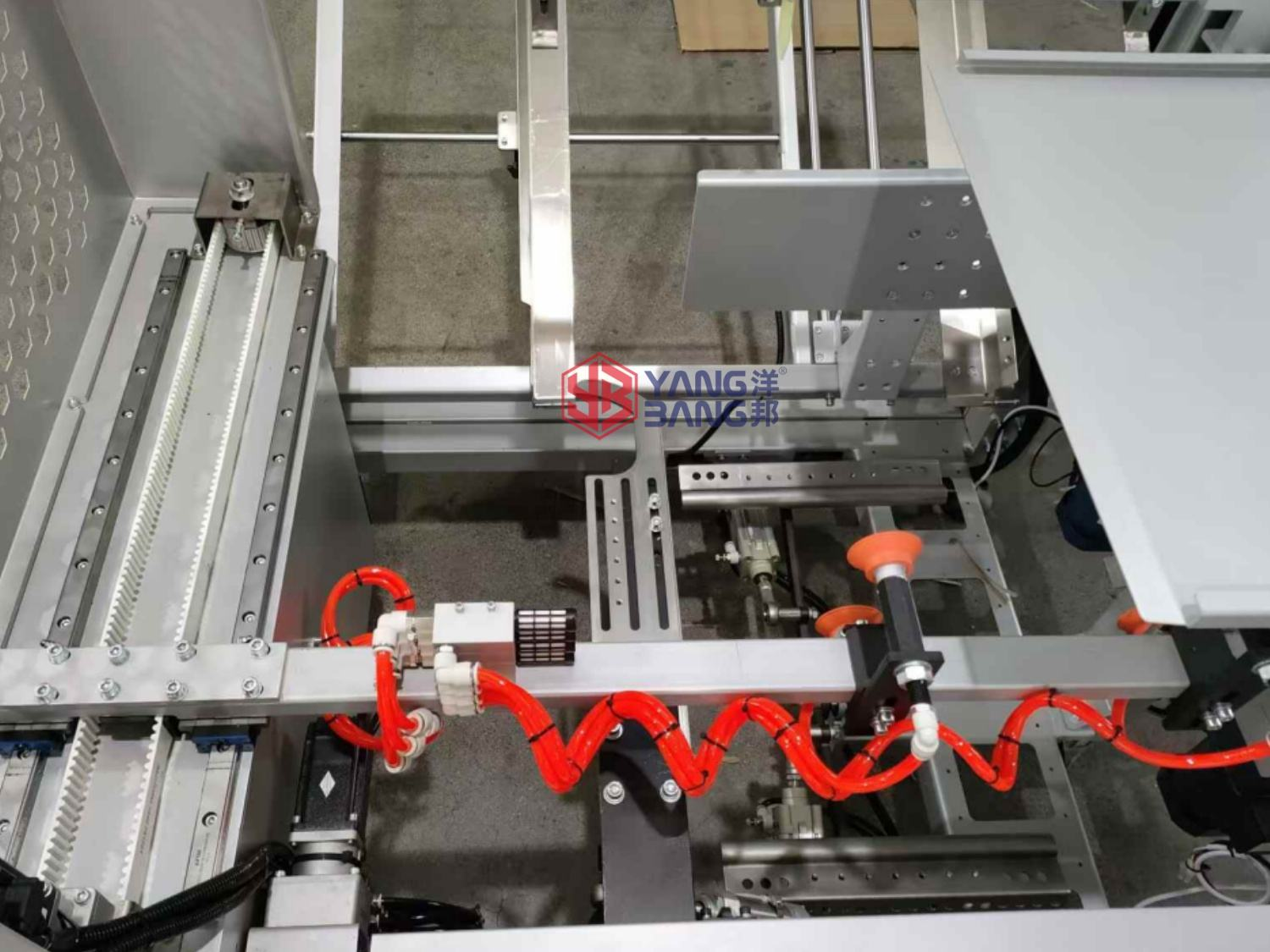

2.The box adopts two servo motors to drive the belts on both sides, which can better ensure the synchronous operation of the belts on both sides and ensure that the cardboard box is square.

3.The two sides of the box adopt an open structure, which provides better visibility and more convenient operation for the operator.

4.The whole machine is highly automated when paired with a robotic arm, reducing manual labor.

5.Low noise, smooth operation, and does not damage the cardboard box.

6.The box storage adopts a tilted unpowered box storage design, which can replenish cardboard boxes at any time without stopping the machine.

7.It can achieve seamless docking with front-end and back-end devices.

8.The standard model is carbon steel spray painted (frosted silver), which can be customized according to customer needs.


NoModelYB-DK500
1Packing speed5-15 boxes/min
2Carton length280-500mm
3Carton width150-400mm
4Carton height150-400mm
5Air supply6kgf/cm虏
6Voltage1 Phase. 220V
7Power1.0 KW
8Machine weightAbout 400kg
9Machine dimensionL2000mm, W1900mm, H1500mm
