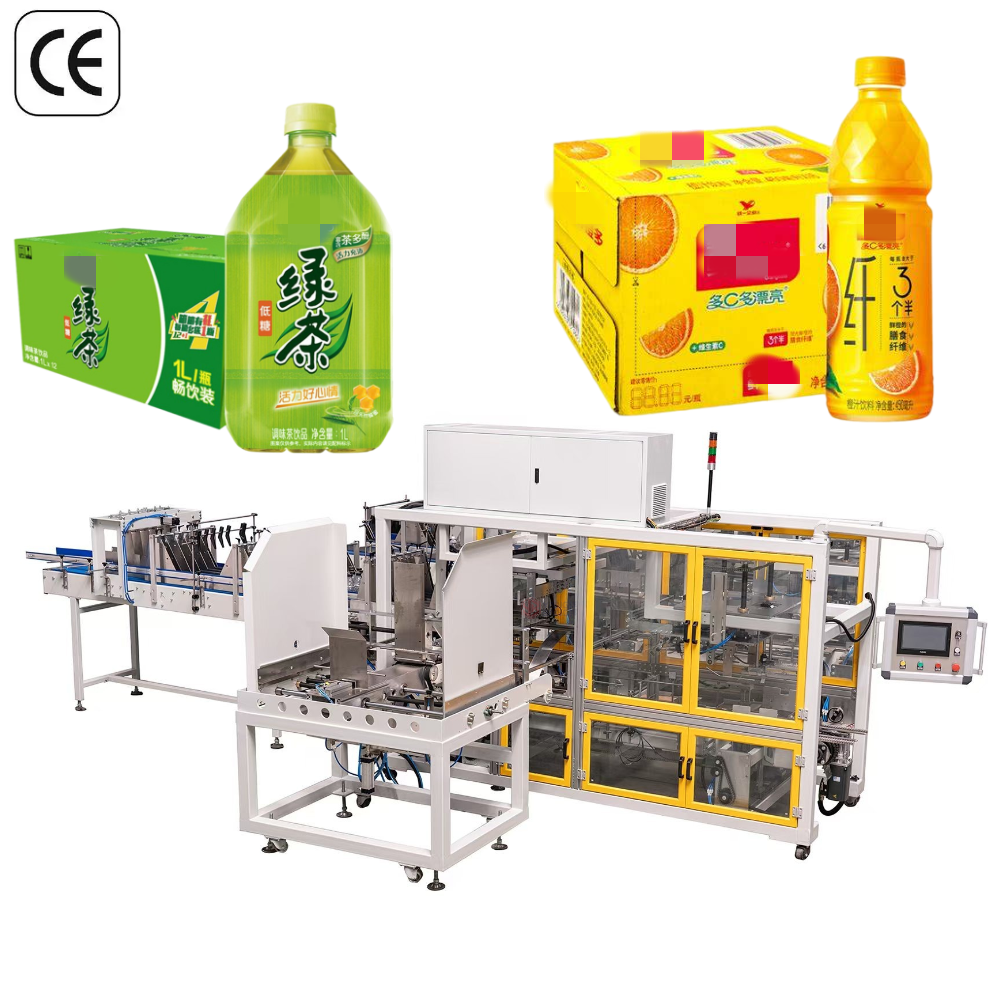

YB-YZX Automatic Wrap-around Case Packer One-piece Cardboard Casing Machine for Beverage and Canned Food Production Line

YB-YZX Automatic Wrap-around Case Packer One-piece Cardboard Casing Machine for Beverage and Canned Food Production Line

Submit
Product Specifications
Technical parameter
Details Images

YB-YZX Automatic Wrap-around Case Packer One-piece Cardboard Casing Machine for Beverage and Canned Food Production Line

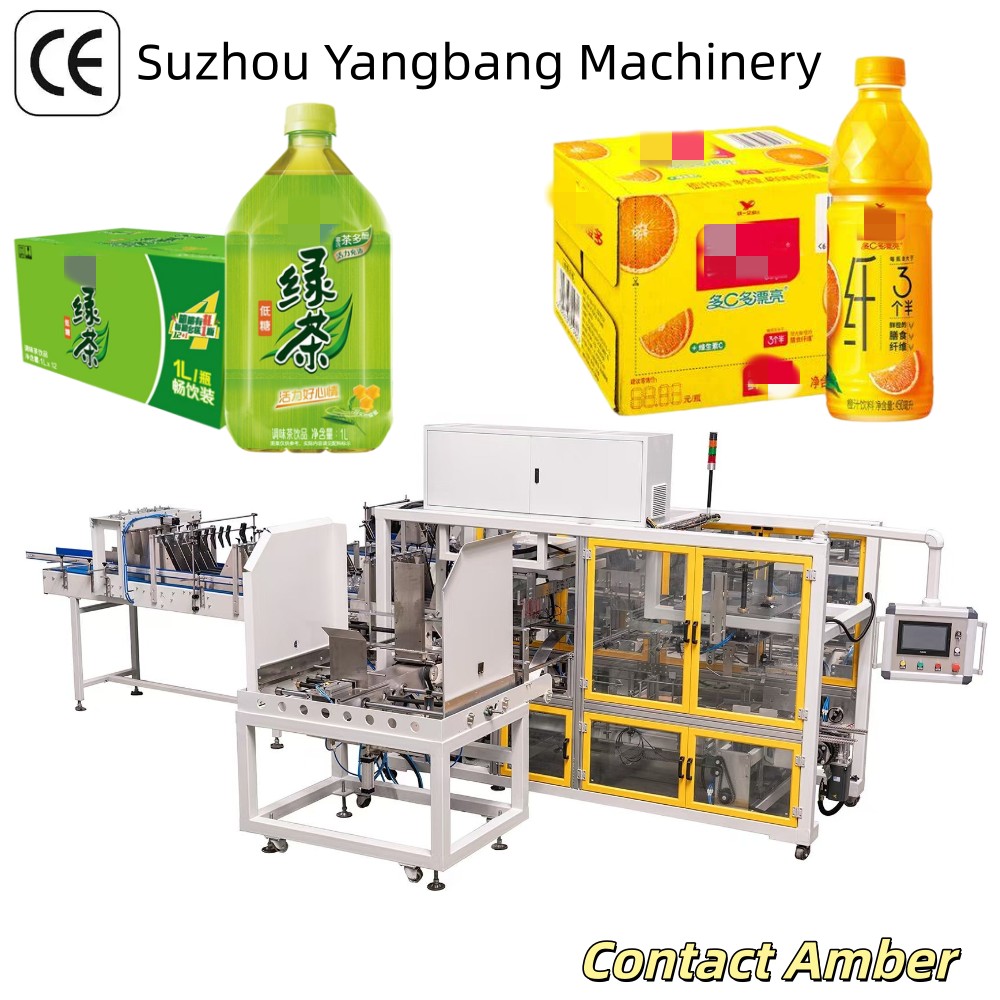

YXZ 13

Usage
The side-push type loading, sealing and packing integrated machine is equipped with a servo drive system, numerical control positioning, signal detection mechanism, programmable centralized controller (PLC), and human-machine interface parameter adjustment. It is an automated equipment for automatically loading unpackaged products or small packaging products into corrugated cartons. Its working principle involves using the conveying system to sort the products according to specifications, forming the cartons, loading the products into the cartons, folding the covers of the cartons, and sealing the box openings. Yes Reduce the number of operational staff and lower the labor intensity of the staff, thereby enhancing the competitiveness of the enterprise.

Performance and Feature
The products are sorted by specifications through the conveying system, the cartons are formed, the products are placed in the cartons, the cartons are folded at the covers, and the box mouths are sealed. This effectively reduces the number of workers required and lowers the labor intensity of the personnel.


Technical parameter
Model
YB-YZX
Power
8.0KW
Speed
12-17Boxes/min
Packaging format
3*4,3*5,4*5,4*6
Working air pressure
0.6-0.8Mpa
suitable bottle specification
Diameter:50-100mm
Power supply
1Phase.220V, 50/60Hz
net weight
2500kg
number of packing layer
1
Machine dimension
L:6500*W2850*H1900mm
Box discharge conveying height
750mm


1787928402951974478442459136.png@!w400

1787928147951973410597826560.png@!w400


About Us

Our Suzhou Yangbang Machinery Co., Ltd factory covers an area of over 20 acres, with modern factories covering nearly 20000 square meters and more than 100 employees. Our factory has established the engineering technology research center for complete filling and packaging machines, with a team of over 20 R&D engineers. Our filling and production lines are widely used for eye drop, oral liquid, injection, disinfectant, capsules, tablets, health care products, protein powder, water, juice, energy drink, wine, medicinal wine, honey, food paste, yogurt, essential oil, perfume, mosquito repellent liquid, nail Polish, mascara, eyeliner liquid, lip gloss, lipstick, face cream, shampoo, bath cream, detergent, veterinary medicine, pesticide and other products. Our packaging and production lines are widely used for food, commodity, medince and cosmetic products. Over the years, Yangbang people have grown and grown in difficult environment, relying on the spirit of hard work, perseverance, and optimism, and have gradually formed a corporate culture with Yangbang characteristics.

Pictures of the gate of Yangbang Machinery Factory
稿定设计-2
Exterior view of Yangbang Machinery factory workshop

Production and Equipment

  • Yangbang Machinery Production Workshop
  • Packaging Machinery Workshop
  • Yangbang Machinery Workshop
  • machine tool
  • Machine Tool Machining
  • Milling
  • CNC Machine Tool Milling
  • Yangbang Machinery Product Showcase
  • Packaging Machinery Workshop

FAQ

Q1: Are you a factory or trading company?
A:Suzhou Yangbang Machinery is a factory who has 25 years experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 25 years, and now we have our own brands and own designed machines for sale!
Q2: How long you need to ship the machines after order?
A: All machines can be ready and shipped in 15 or 30 days after order!
Q3: What's the payment you prefer?
A: We accept TT/Western union/Cash/LC, Trade assurance order.
Q4:Why should I choose your packing and filling machine ?
A:We have been specialized in filling and packing machine for more then ten years,and until now have exported machines to more than 100 countries.
Q5:What is your warranty and after-sale service?
A:One year warranty and lifelong after-sale service via skype/email/mobile/whatsapp/etc. Also technical service overseas is available.
Q6:Can I visit your factory and send team for learning and inspect?
A: Yes sure no problem.We will do our best to teaching you how to use the machine.
Q7:What is our advantages?
1. Competitive price.
2. Excellent technical support.
3. Best service and best after-sale service.
4. Over 25 years experience.
