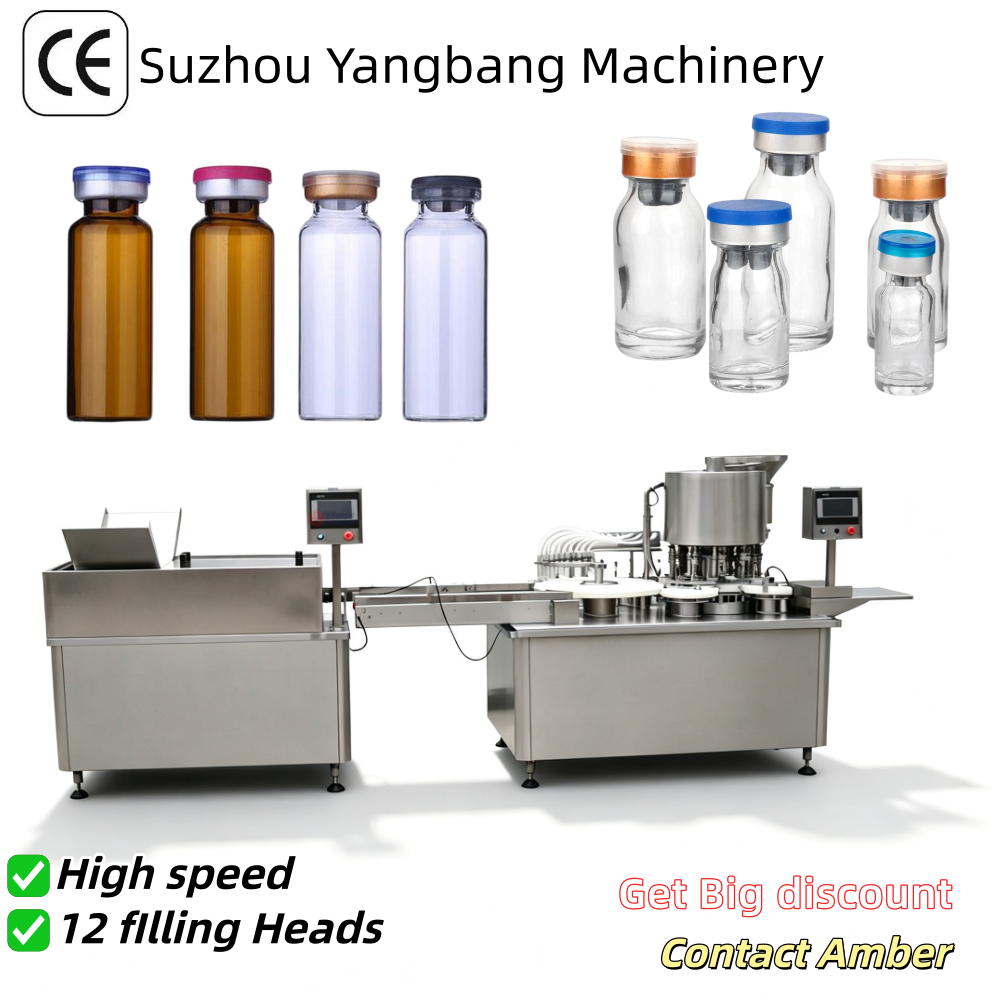

YB-K12A Fully Automatic 12 Heads Filling Rotary 5ml 10ml 30ml Syrup Ampoule Oral Liquid Vial Filling and Sealing Machine

YB-K12A Fully Automatic 12 Heads Filling Rotary 5ml 10ml 30ml Syrup Ampoule Oral Liquid Vial Filling and Sealing Machine

Submit
Product Specifications
Technical parameter
Details Images

YB-K12A Fully Automatic 12 Heads Filling Rotary 5ml 10ml 30ml Syrup Ampoule Oral Liquid Vial Filling and Sealing Machine

K12A 1

1. This machine uses PLC control system, color touch screen display.
2. Mainly used for straight tube bottle (with easy pull cap or aluminum cap) filling, adding cap and capping.

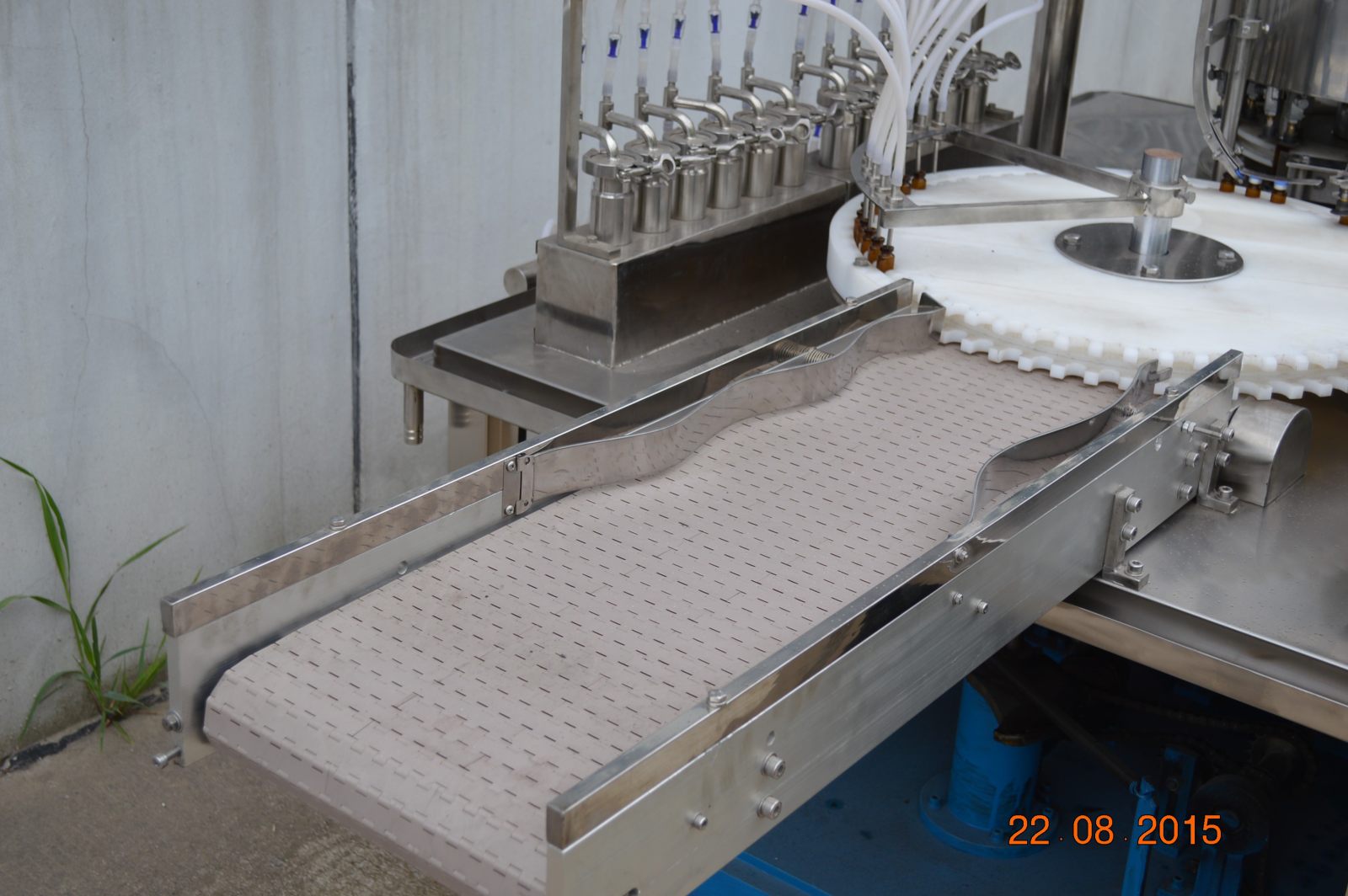

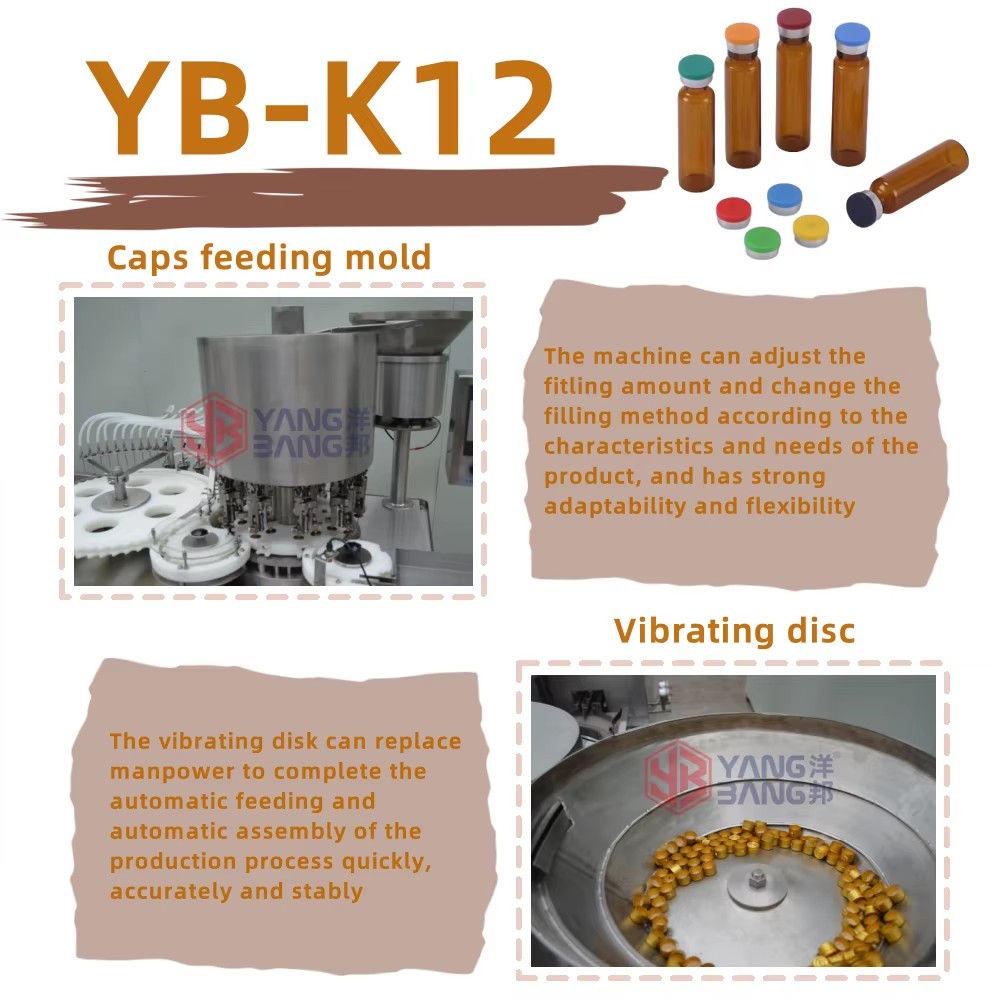

3. Achieve reliable bottle transporting and tracking filling by screw, which is not easy to produce foam. It transports the cap by electromagnetic vibration, high capping rate.
4. Machine shell is made of 304 stainless steel (optional 306), meets GMP standard.

Technical parameter
Model
YB-K12A
Filling head number
12
Capping head number
10
Filling volume
5-30ml
Capacity
120-200bottles/min
Filling accuracy
≤±1%(depends on product)
Pass rate
≥99%
Power supply
1Ph,220v,50/60Hz
Total power
4.5kw
Net weight
1000KG
Overall dimension
3000*1440*1620

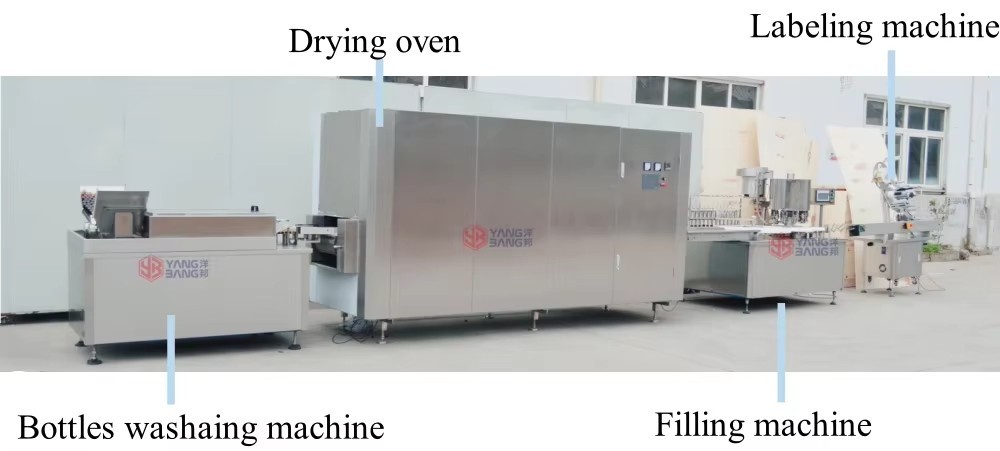

1788613852954849464254005248.jpg@!w400

1788613946954849860334718976.png@!w400

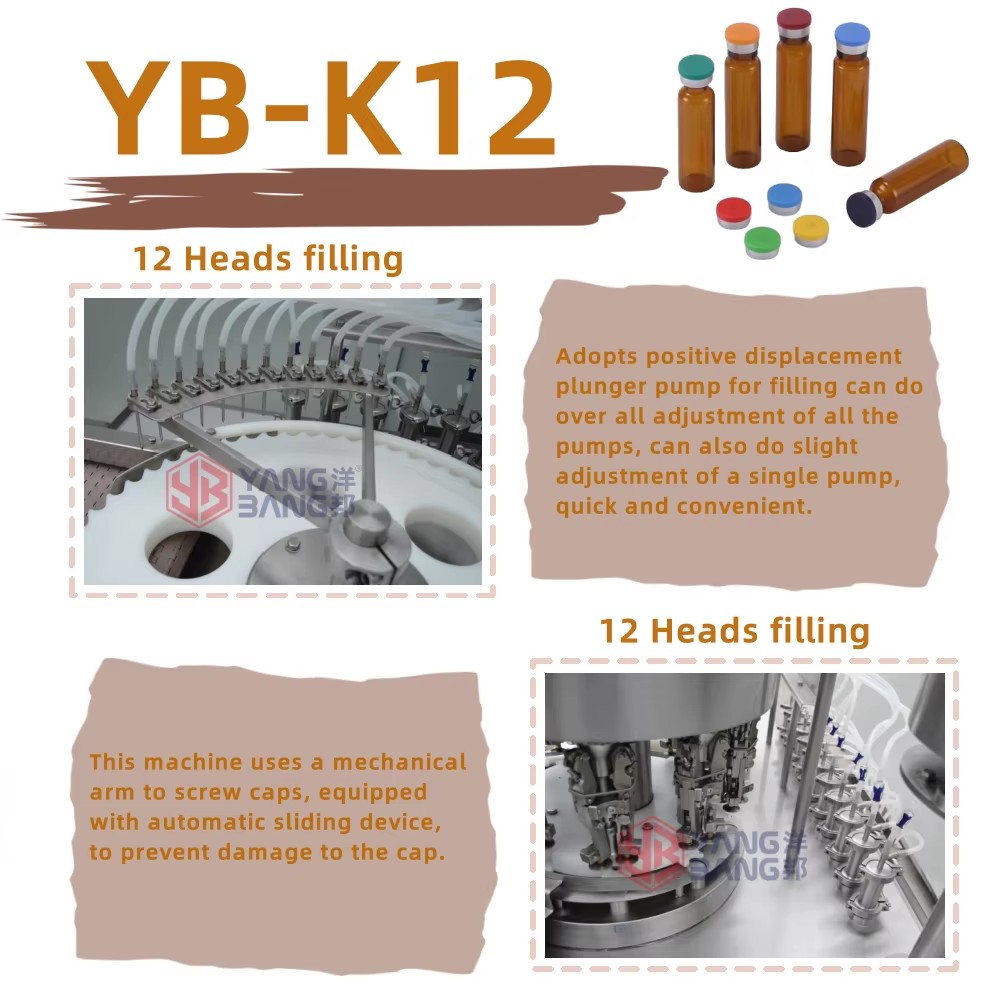

1788613851954849461888421888.png@!w400

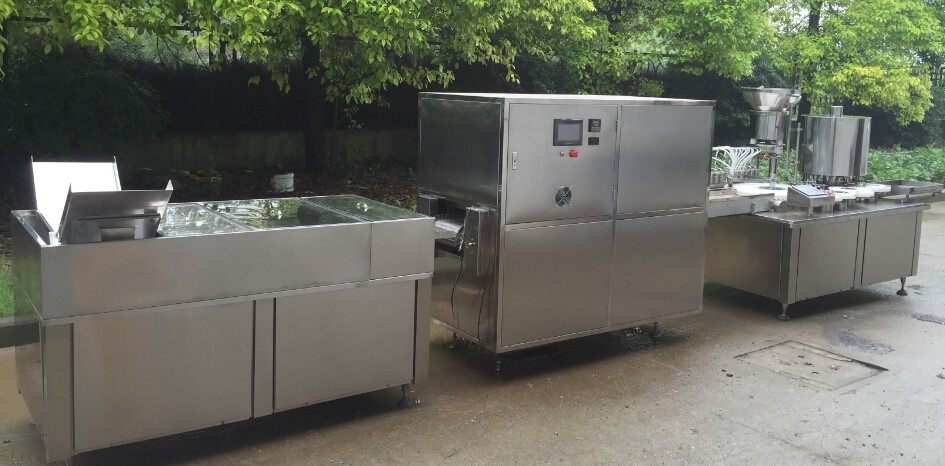

1788614063954850347285024768.jpg@!w400


About Us

Our Suzhou Yangbang Machinery Co., Ltd factory covers an area of over 20 acres, with modern factories covering nearly 20000 square meters and more than 100 employees. Our factory has established the engineering technology research center for complete filling and packaging machines, with a team of over 20 R&D engineers. Our filling and production lines are widely used for eye drop, oral liquid, injection, disinfectant, capsules, tablets, health care products, protein powder, water, juice, energy drink, wine, medicinal wine, honey, food paste, yogurt, essential oil, perfume, mosquito repellent liquid, nail Polish, mascara, eyeliner liquid, lip gloss, lipstick, face cream, shampoo, bath cream, detergent, veterinary medicine, pesticide and other products. Our packaging and production lines are widely used for food, commodity, medince and cosmetic products. Over the years, Yangbang people have grown and grown in difficult environment, relying on the spirit of hard work, perseverance, and optimism, and have gradually formed a corporate culture with Yangbang characteristics.

Pictures of the gate of Yangbang Machinery Factory
稿定设计-2
Exterior view of Yangbang Machinery factory workshop

Production and Equipment

  • Yangbang Machinery Production Workshop
  • Packaging Machinery Workshop
  • Yangbang Machinery Workshop
  • machine tool
  • Machine Tool Machining
  • Milling
  • CNC Machine Tool Milling
  • Yangbang Machinery Product Showcase
  • Packaging Machinery Workshop

FAQ

Q1: Are you a factory or trading company?
A:Suzhou Yangbang Machinery is a factory who has 25 years experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 25 years, and now we have our own brands and own designed machines for sale!
Q2: How long you need to ship the machines after order?
A: All machines can be ready and shipped in 15 or 30 days after order!
Q3: What's the payment you prefer?
A: We accept TT/Western union/Cash/LC, Trade assurance order.
Q4:Why should I choose your packing and filling machine ?
A:We have been specialized in filling and packing machine for more then ten years,and until now have exported machines to more than 100 countries.
Q5:What is your warranty and after-sale service?
A:One year warranty and lifelong after-sale service via skype/email/mobile/whatsapp/etc. Also technical service overseas is available.
Q6:Can I visit your factory and send team for learning and inspect?
A: Yes sure no problem.We will do our best to teaching you how to use the machine.
Q7:What is our advantages?
1. Competitive price.
2. Excellent technical support.
3. Best service and best after-sale service.
4. Over 25 years experience.
