YB-TB200 Automatic Customizable Bottle Cup Sizes Speed Beverage Yogurt Cup Shrink Sleeve Labeling Machine

YB-TB200 Automatic Customizable Bottle Cup Sizes Speed Beverage Yogurt Cup Shrink Sleeve Labeling Machine

Boost beverage and yogurt packaging efficiency with the YB-TB200 automatic shrink sleeve labeling machine for bottles and cups, supporting 30–200 products/min.
Submit
Product Specifications
Technical parameter
Details Images

YB-TB200 Automatic Customizable Bottle Cup Sizes Speed Beverage Yogurt Cup Shrink Sleeve Labeling Machine

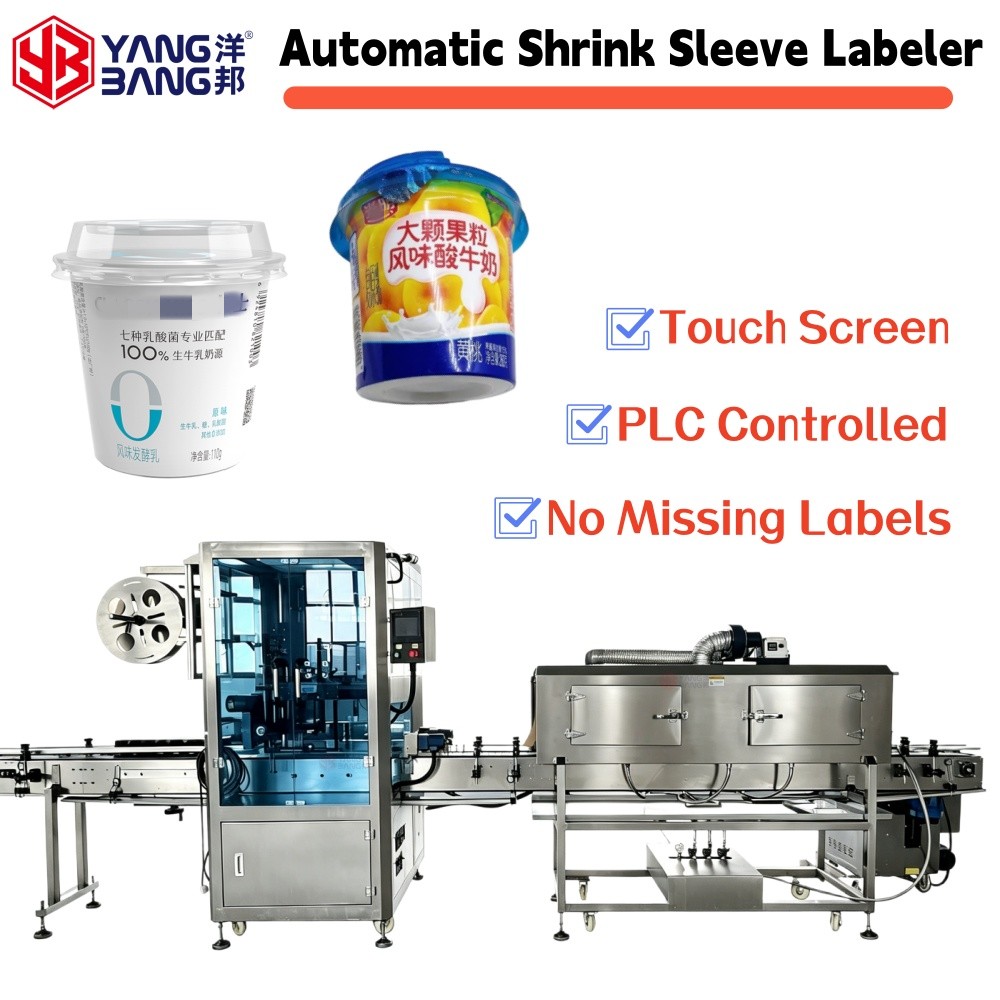

yogurt cup labeler


Technical Parameter

NameShrink application
ModelYB-TB200
Control systemPLC
Capacity30-200 bottles/min
Label length30-300mm
Label thickness0.03-0.06mm
Pass rate≥99% (Depends on quality of packing material)
Power2.0KW
Power supply1Ph 220V, 50/60Hz
Machine dimensionL1800*W900*H2100mm
Machine weight350kg


NameShrinkage furnace
ModelYB-LZ1800
Heating typeSteam type
Electric heat type
Furnace lengthL: 1500-1800mm
Conveying speed0-35m/min
Steam consumption18kg/hour0
Power

26-40KW

(Can be customized)

24K

W(Can be customized)

Power supply1Ph.220V or 3Ph.380V, 50/60Hz
Net weight≈180kg
Overall dimensionAbout L3000*W600*H1600mm


Application:


This machine is widely used in food, beverage and pharmaceutical industries, such as juice, milk, edible oil, soy sauce, vinegar, condiments, essential oil, face cream, eye drops, injections, etc.

Performance features:

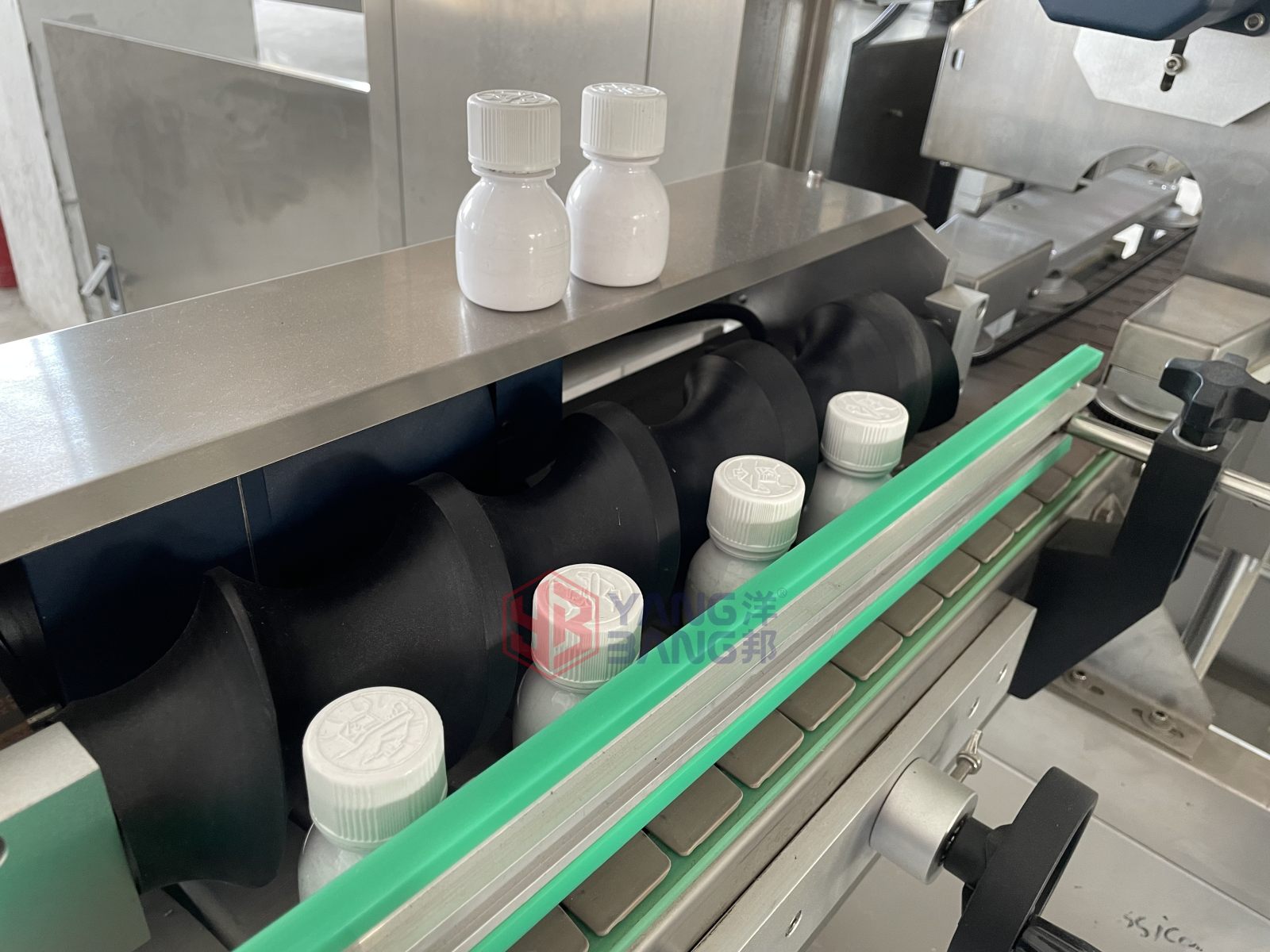

1. Workflow: entering the bottle→screw device to split bottle→ label cutting→sleeve labeling→label positioning→label shrinkage (optional with steam or electric heating shrinkage furnace) →output finished product.


2. PLC control, color touch screen display, machine has function of counting automatically.

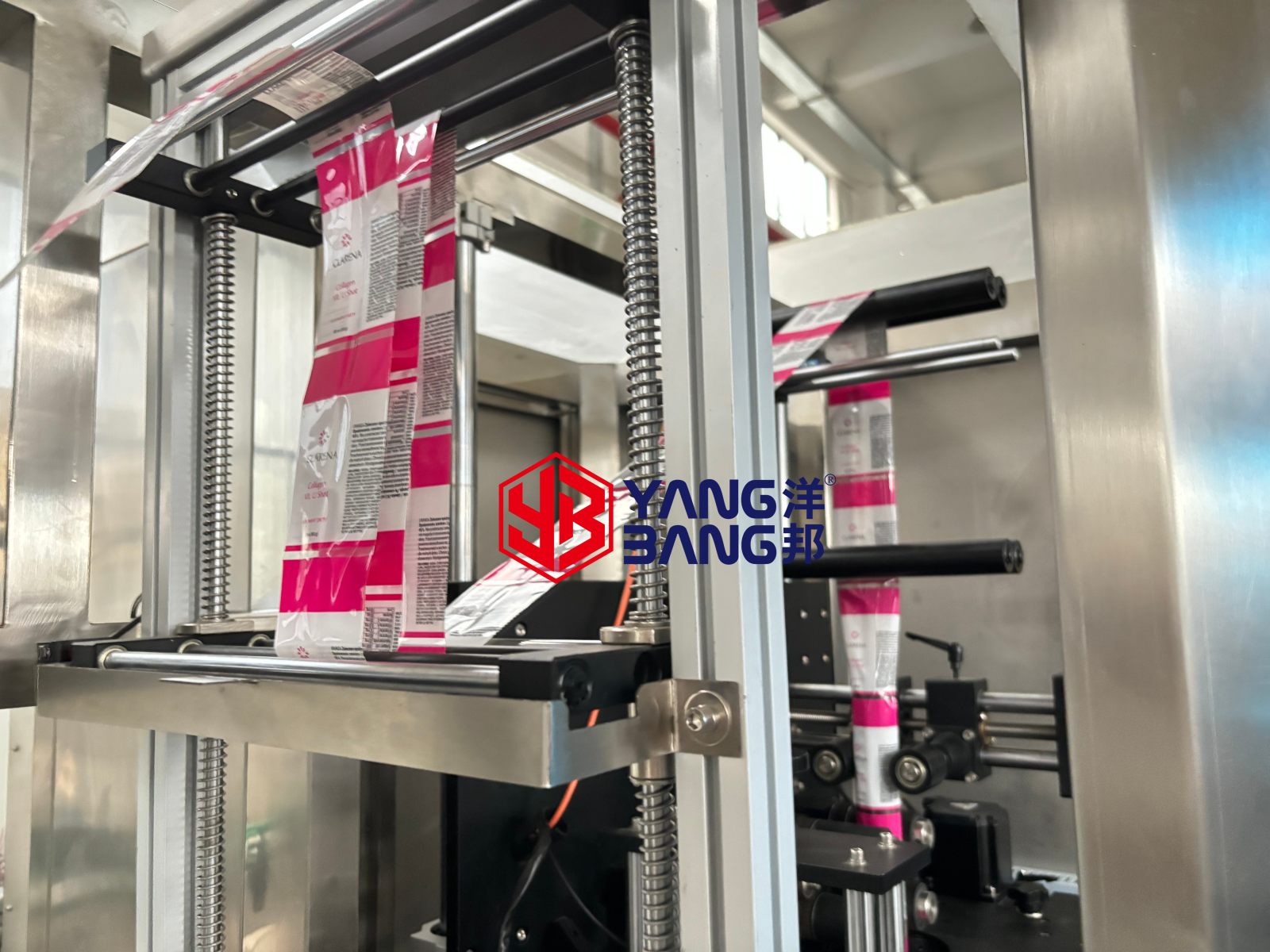

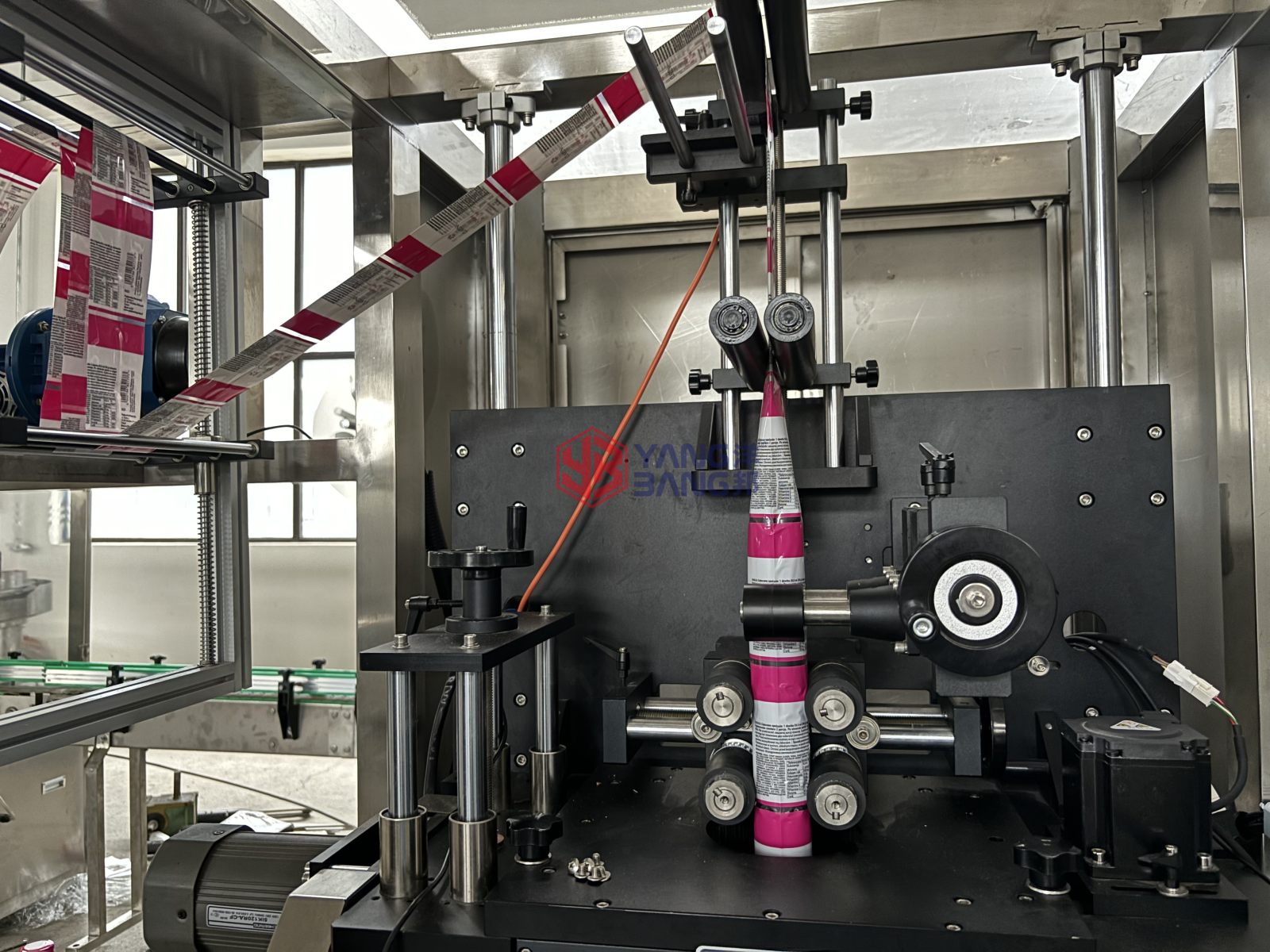

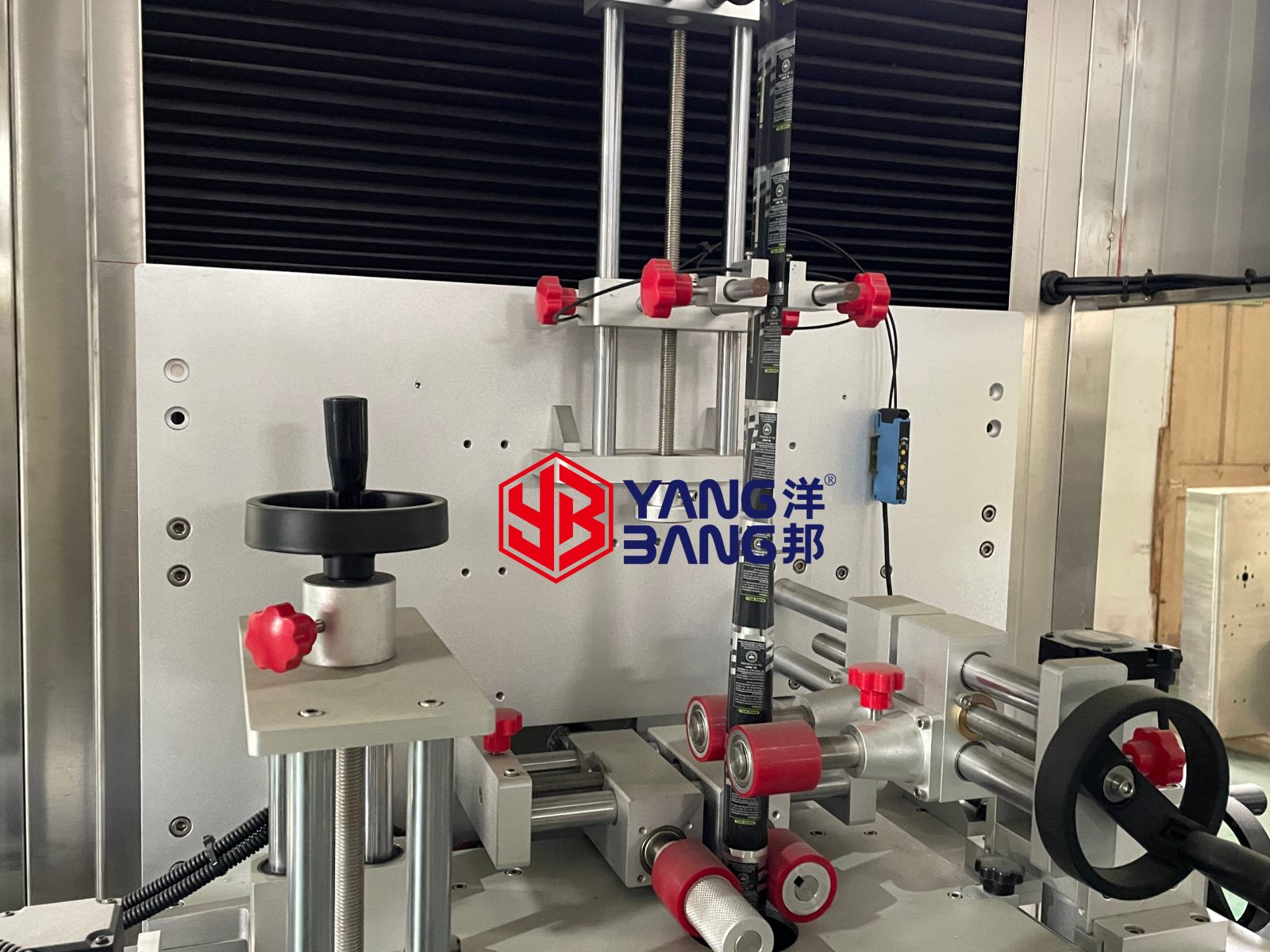

3.High performance servo motor control for label delivery, with accurate position, no missing or stuck labels.

4. Positioned central column makes label conveying more stable.

5. Machine has function of automatic fault detection and alarm.

6. Main electrical components adopt foreign well-known brands.

7.Machine frame is made of high quality 304 stainless steel, meets GMP standard.

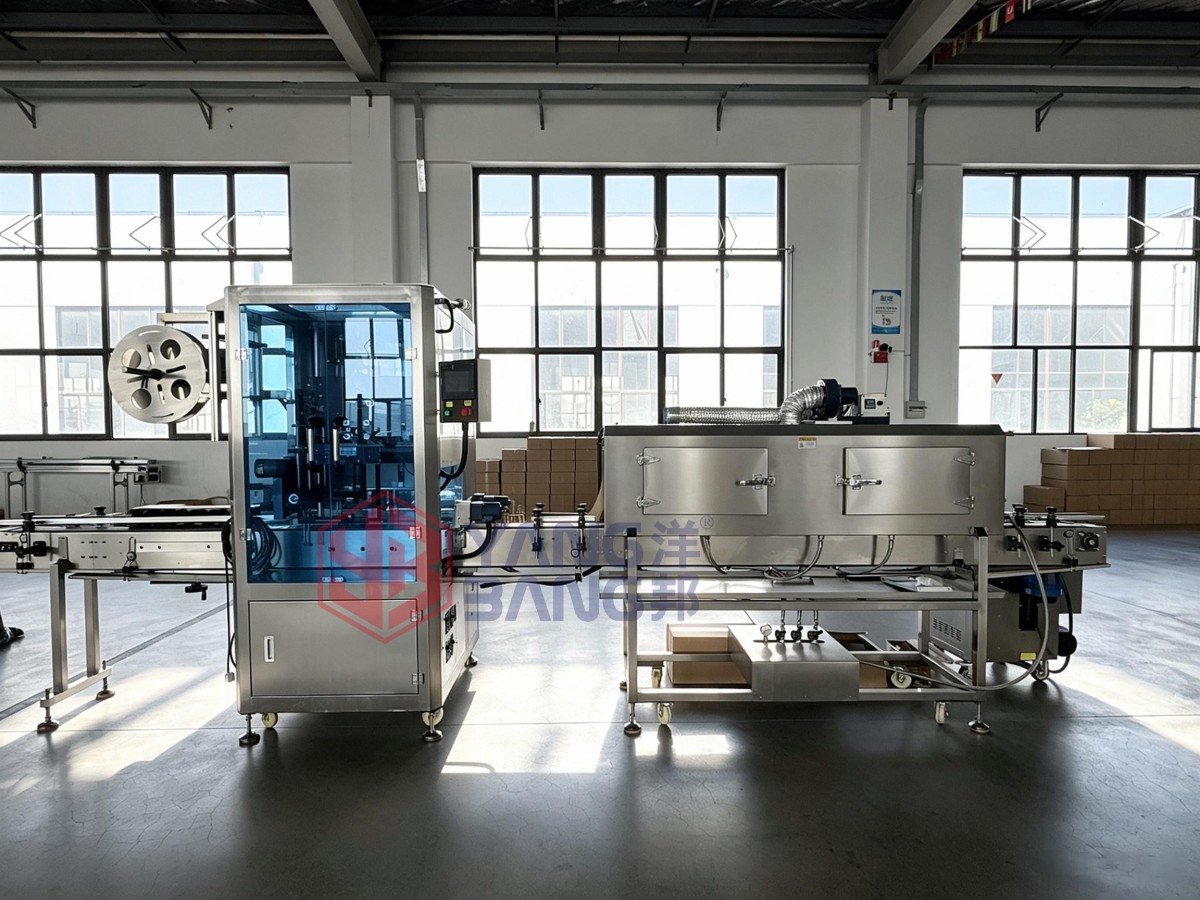

1788163269952959581817839616.jpg@!w400

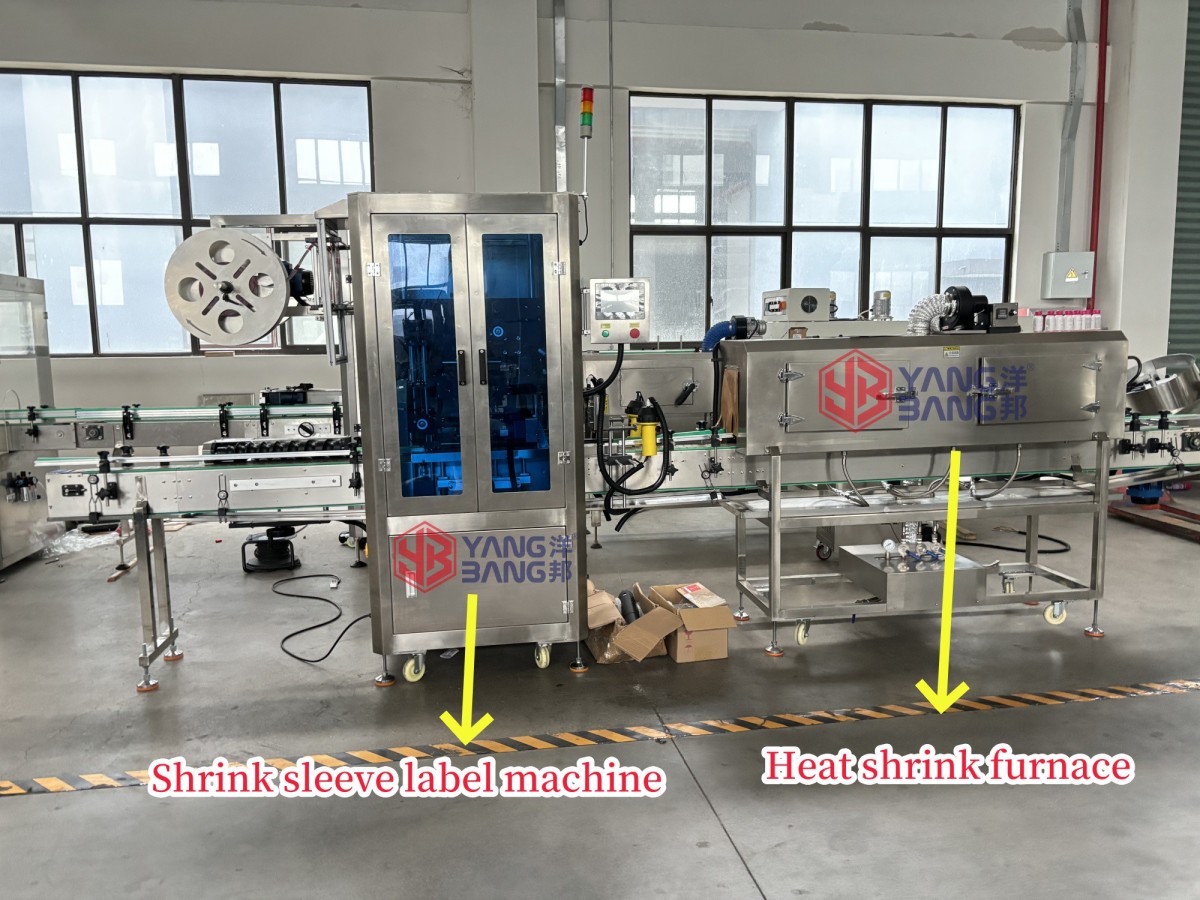

1788163268952959577640312832.jpg@!w400

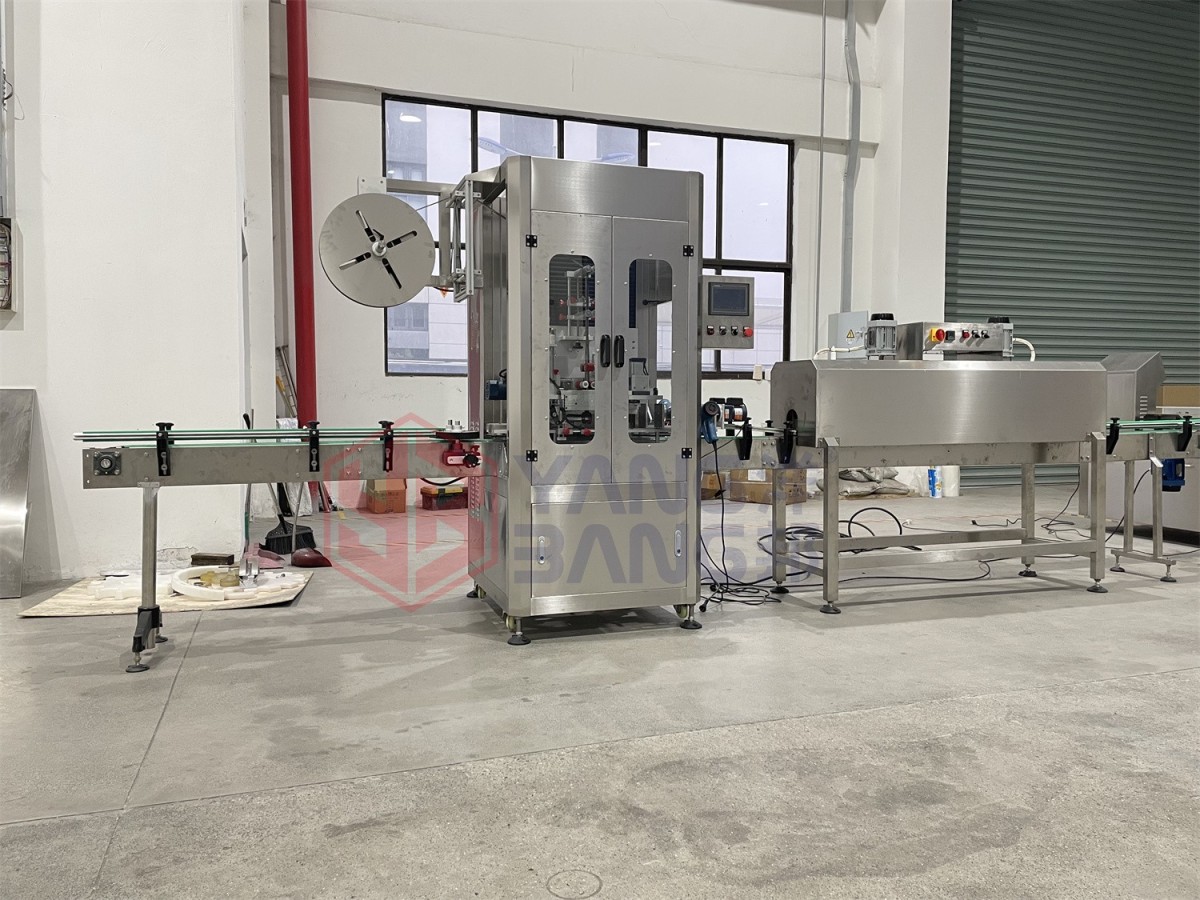

1788163269952959580542771200.jpg@!w400

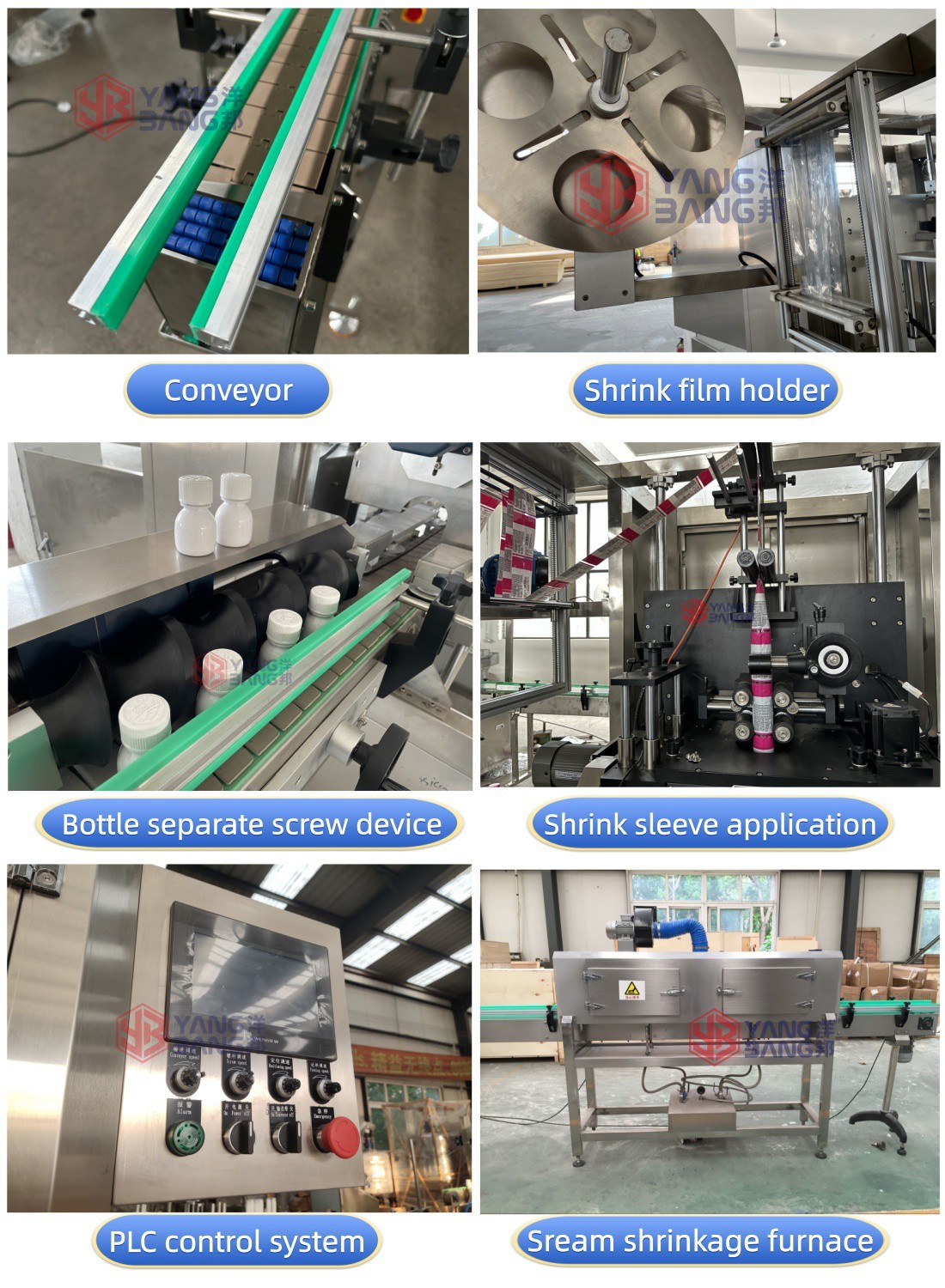

1788163393952960101991292928.jpg@!w400
