YB-ZX100 Rotary Drum Bottle Washing Machine Automatic Cleaner for Glass Plastic Wine and Beverage Bottles High Pressure Washing

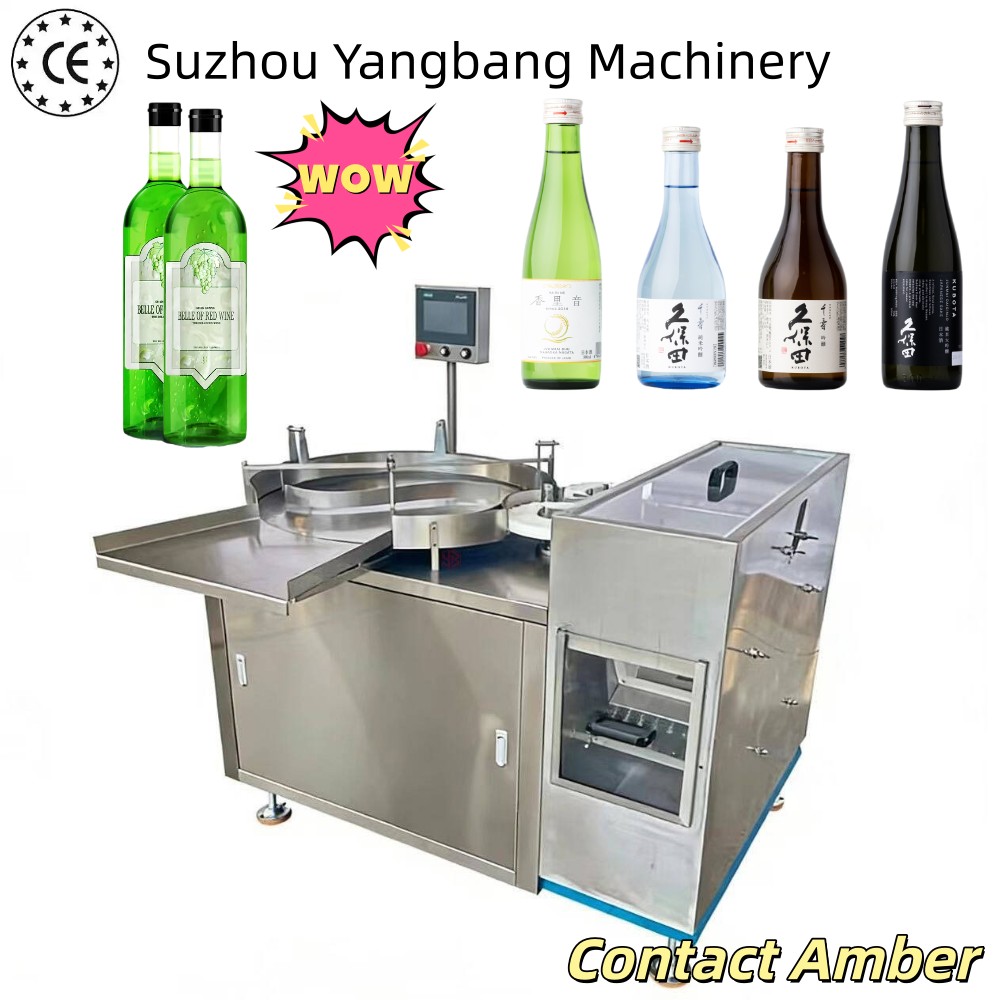

ZX100 24_

This machine is mainly used for clean the inside and outside of various material round or square bottle with filling range of 30-500ml by "two water and one gas" (water, ion water, oil free compressed air) alternately washing. So that make sure the bottles meets requirements of production process, and it has function of initial drying the bottles.

Machine features:
1.PLC control system, color touch screen display.
2.Unique and compact structure, reasonable cleaning process.
3.Bottle spotlessness after washing, less water consumption.
4.Main electrical elements adopt foreign well-known brands.
5.Machine shell is made of 304 stainless steel, completely meets GMP requirements.


Technical parameter
Model
YB-ZX100
Bottle size
Can be customized
Speed
30-100 bottles/min
Working air pressure
0.6-0.8Mpa
Gas consumption
15m³/h
Circulating water consumption
1.0-2.0m³/h
Power
2.0KW
Power supply
1Ph. 220V, 50-60Hz
Net weight
500kg
Overall dimension
About L1500*W1100*H1500mm


1788530769954500988164890624.jpeg@!w400


About Us

Our Suzhou Yangbang Machinery Co., Ltd factory covers an area of over 20 acres, with modern factories covering nearly 20000 square meters and more than 100 employees. Our factory has established the engineering technology research center for complete filling and packaging machines, with a team of over 20 R&D engineers. Our filling and production lines are widely used for eye drop, oral liquid, injection, disinfectant, capsules, tablets, health care products, protein powder, water, juice, energy drink, wine, medicinal wine, honey, food paste, yogurt, essential oil, perfume, mosquito repellent liquid, nail Polish, mascara, eyeliner liquid, lip gloss, lipstick, face cream, shampoo, bath cream, detergent, veterinary medicine, pesticide and other products. Our packaging and production lines are widely used for food, commodity, medince and cosmetic products. Over the years, Yangbang people have grown and grown in difficult environment, relying on the spirit of hard work, perseverance, and optimism, and have gradually formed a corporate culture with Yangbang characteristics.

Pictures of the gate of Yangbang Machinery Factory
稿定设计-2
Exterior view of Yangbang Machinery factory workshop

Production and Equipment

  • Yangbang Machinery Production Workshop
  • Packaging Machinery Workshop
  • Yangbang Machinery Workshop
  • machine tool
  • Machine Tool Machining
  • Milling
  • CNC Machine Tool Milling
  • Yangbang Machinery Product Showcase
  • Packaging Machinery Workshop

FAQ

Q1: Are you a factory or trading company?
A:Suzhou Yangbang Machinery is a factory who has 25 years experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 25 years, and now we have our own brands and own designed machines for sale!
Q2: How long you need to ship the machines after order?
A: All machines can be ready and shipped in 15 or 30 days after order!
Q3: What's the payment you prefer?
A: We accept TT/Western union/Cash/LC, Trade assurance order.
Q4:Why should I choose your packing and filling machine ?
A:We have been specialized in filling and packing machine for more then ten years,and until now have exported machines to more than 100 countries.
Q5:What is your warranty and after-sale service?
A:One year warranty and lifelong after-sale service via skype/email/mobile/whatsapp/etc. Also technical service overseas is available.
Q6:Can I visit your factory and send team for learning and inspect?
A: Yes sure no problem.We will do our best to teaching you how to use the machine.
Q7:What is our advantages?
1. Competitive price.
2. Excellent technical support.
3. Best service and best after-sale service.
4. Over 25 years experience.
