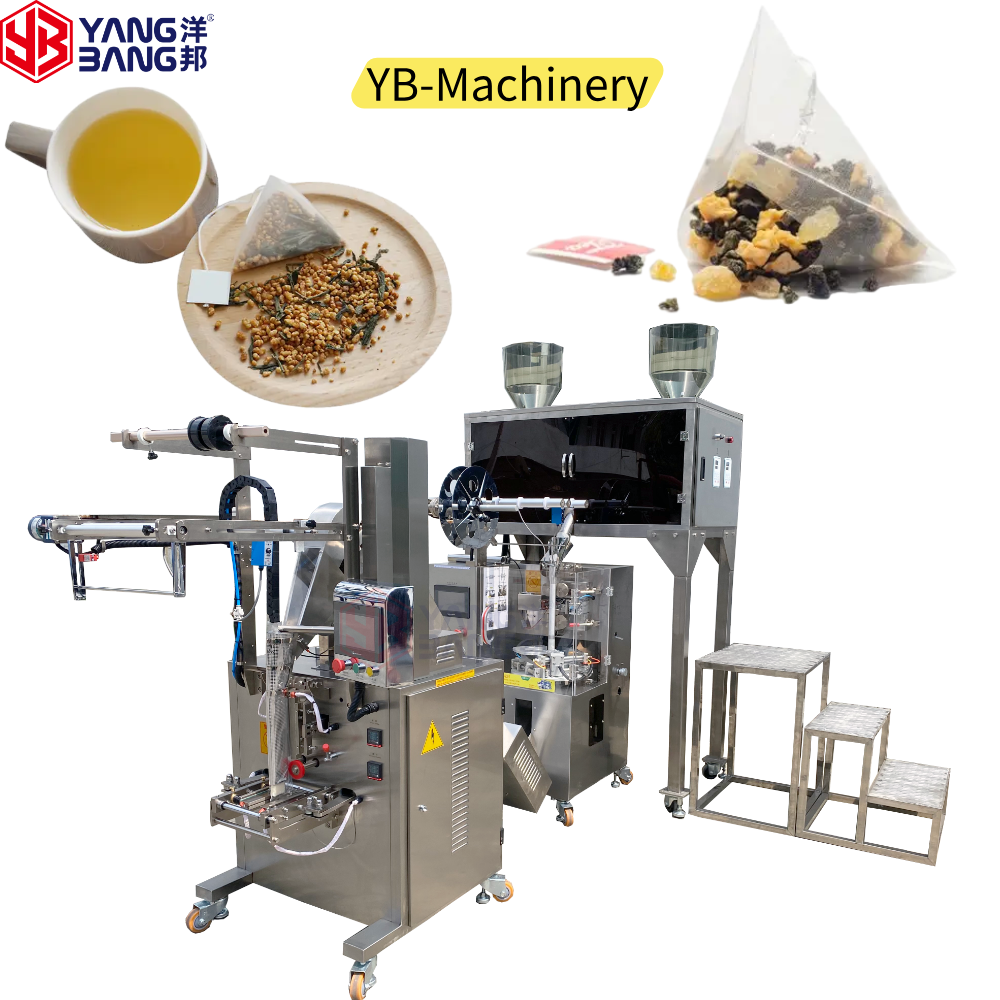

YB-160SC Tea Bag Making Machine Vertical Triangle Coffee Filling Machine Small Tea Bag Packaging Machine

YB-160SC Tea Bag Making Machine Vertical Triangle Coffee Filling Machine Small Tea Bag Packaging Machine

  • YB-160SC Tea Bag Making Machine Vertical Triangle Coffee Filling Machine Small Tea Bag Packaging Machine
  • YB-160SC Tea Bag Making Machine Vertical Triangle Coffee Filling Machine Small Tea Bag Packaging Machine
  • YB-160SC Tea Bag Making Machine Vertical Triangle Coffee Filling Machine Small Tea Bag Packaging Machine
  • YB-160SC Tea Bag Making Machine Vertical Triangle Coffee Filling Machine Small Tea Bag Packaging Machine
  • YB-160SC Tea Bag Making Machine Vertical Triangle Coffee Filling Machine Small Tea Bag Packaging Machine
  • YB-160SC Tea Bag Making Machine Vertical Triangle Coffee Filling Machine Small Tea Bag Packaging Machine

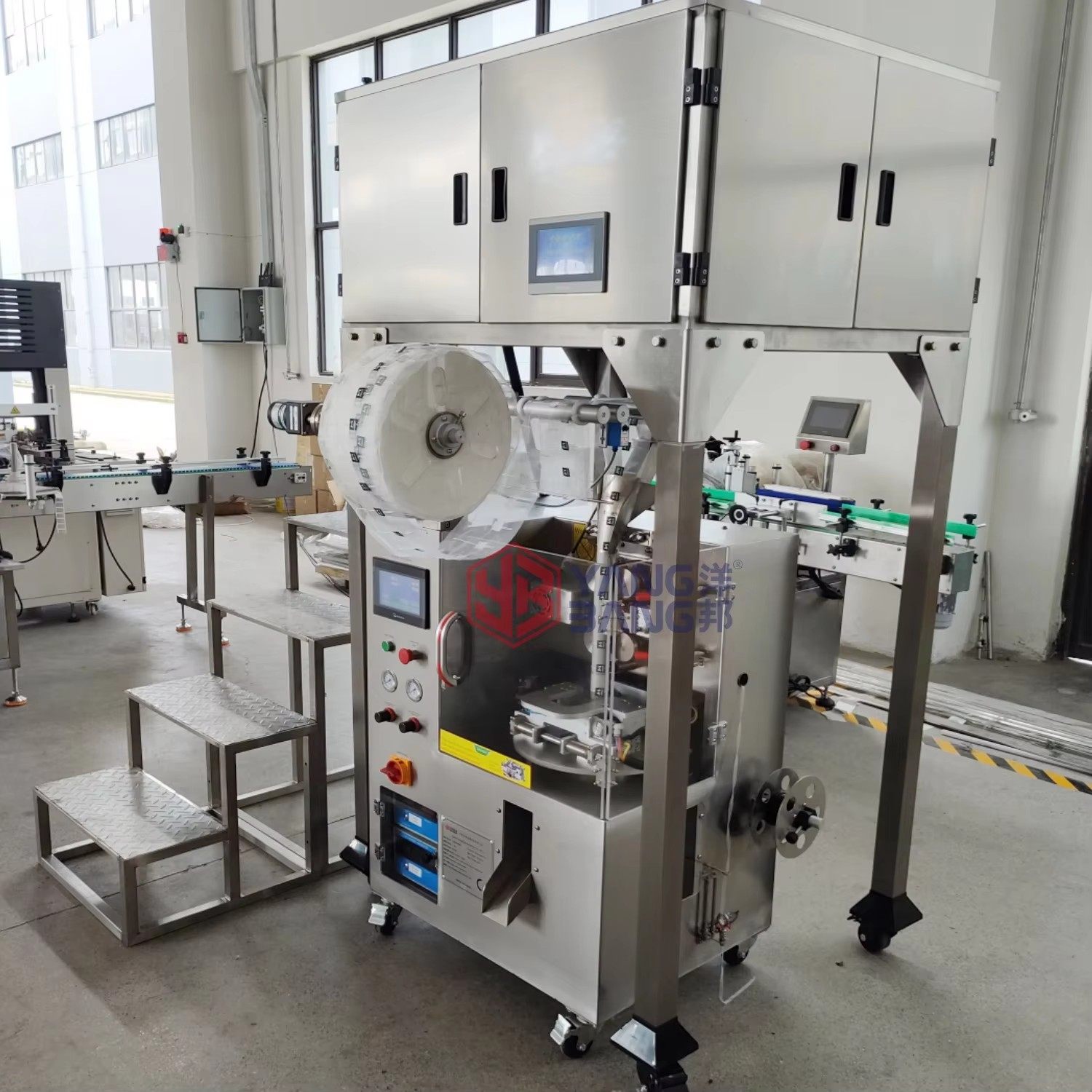

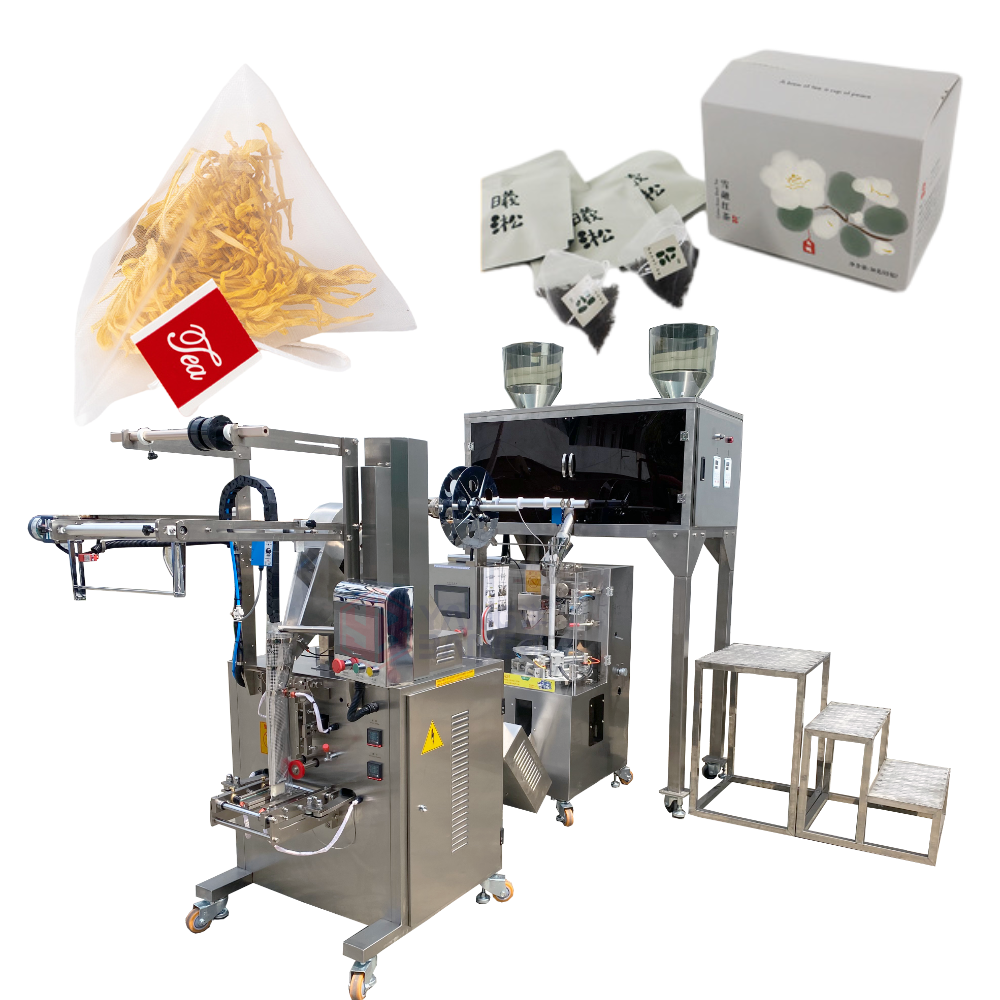

YB-160SC tea bag packaging machine for triangle and pillow bags. Ideal for tea, coffee and herbs with PLC control and ultrasonic sealing.
Submit
PRODUCT SPECIFICATIONS
Technical parameter
Details Images

Usages:

This machine is mainly used for packing various tea, coffee, herbs tea, etc.

Features:
1.The machine can be used for pillow bags, triangular bags packaging.
2.PLC control, touch screen display, simple to operate, easy to adjust.
3.bag length using servo motor drive,positioning accuracy,easy to adjust machine;the sealing used imported ultra-sound,stable
performance.
4.Machine body and all product touching parts are made of 304 stainless steel.


Model
YB-160CS
Packing speed
15-30bags/min
Packing range
1-7g
Bag size
L:60-80mm W:40-80mm
Nylon  film width
120/140/160mm
Thread length
100/125/140/165mm
Packing accuracy
≥97%
Air consumption
0.6-0.8Mpa
Power
3.5Kw
Power supply
1Ph 220V 50/60Hz
packing  type
Triangle typpe bag
Net weight
1000kg
Machine dimension
L1350*W1400*H2400mm

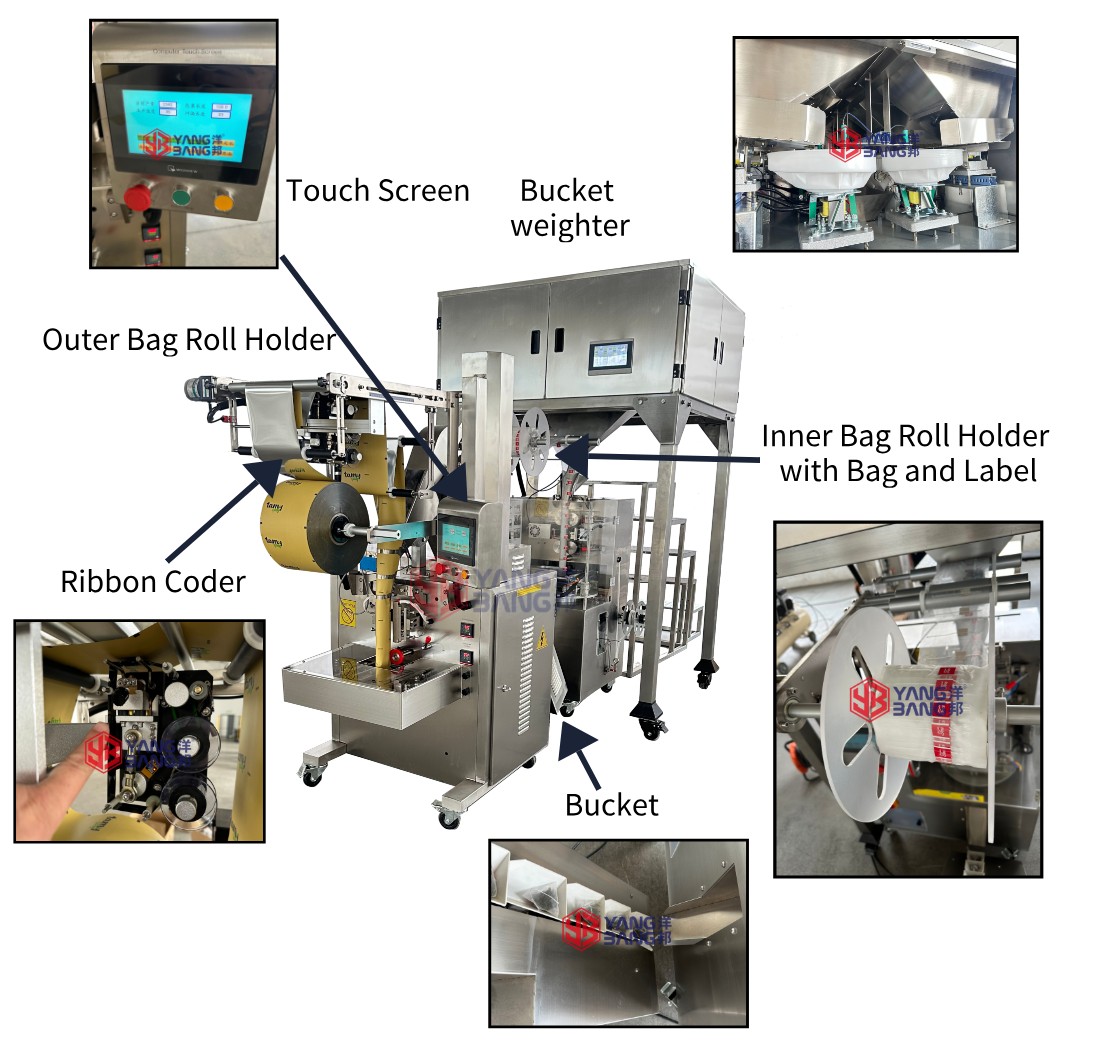

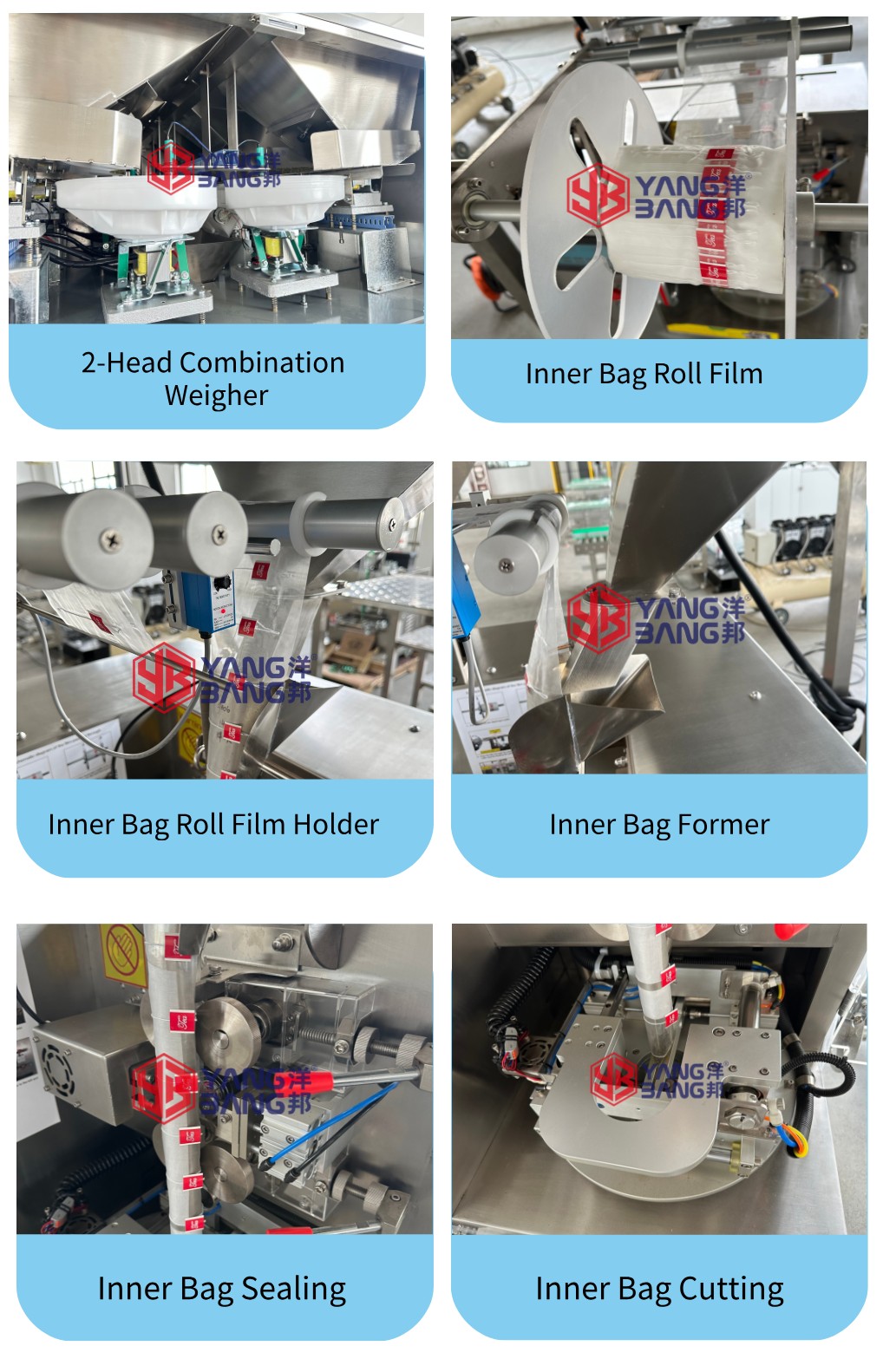

Details Images

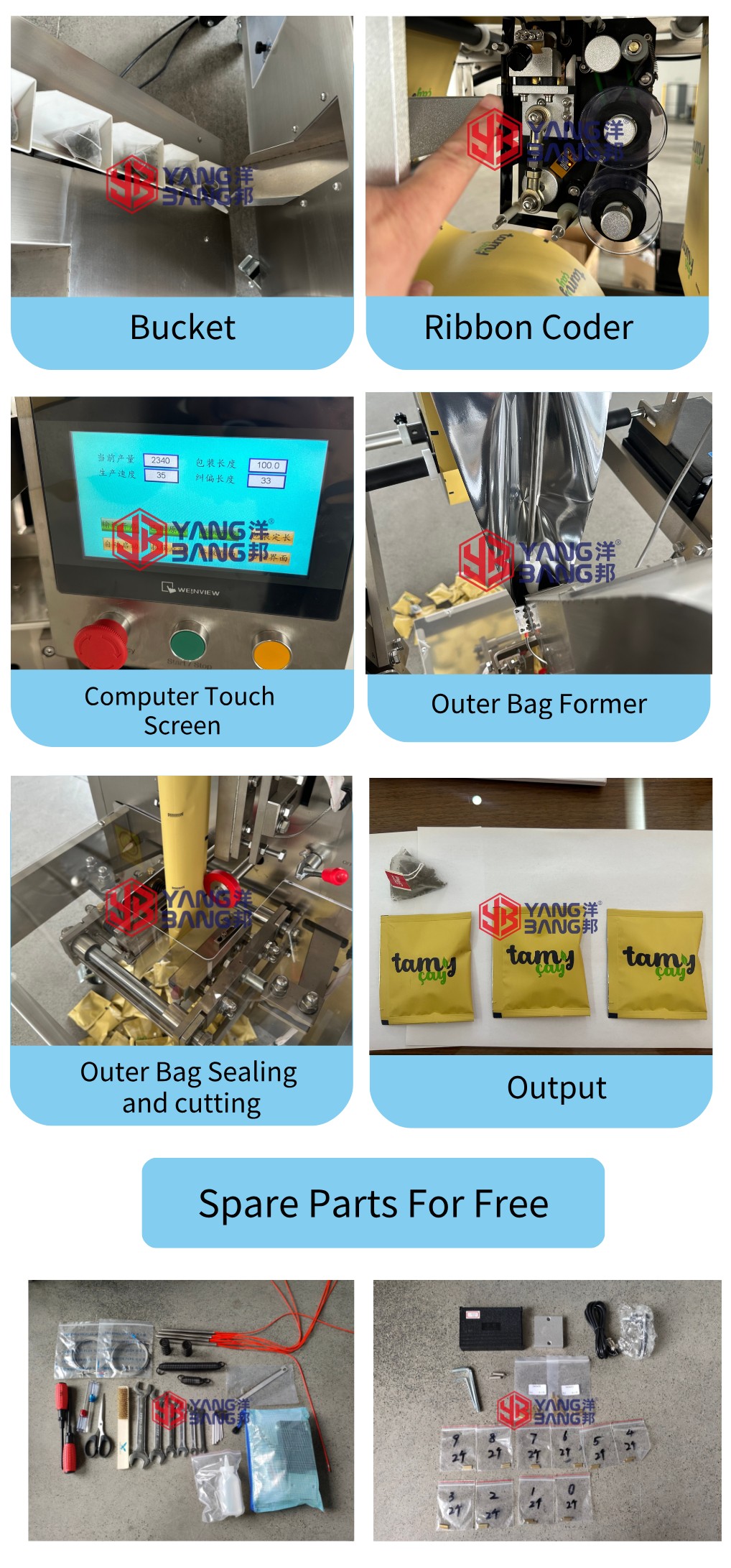

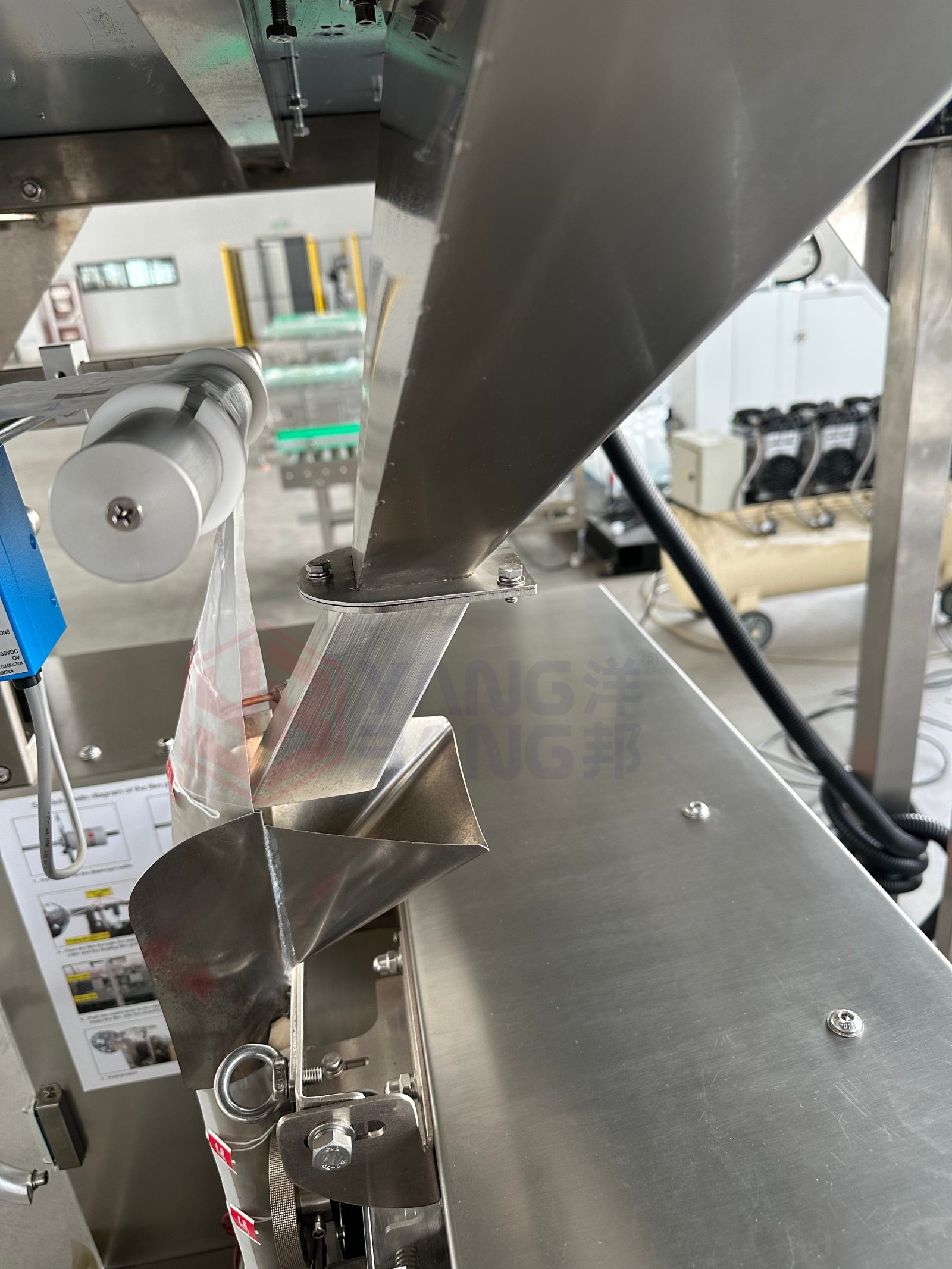

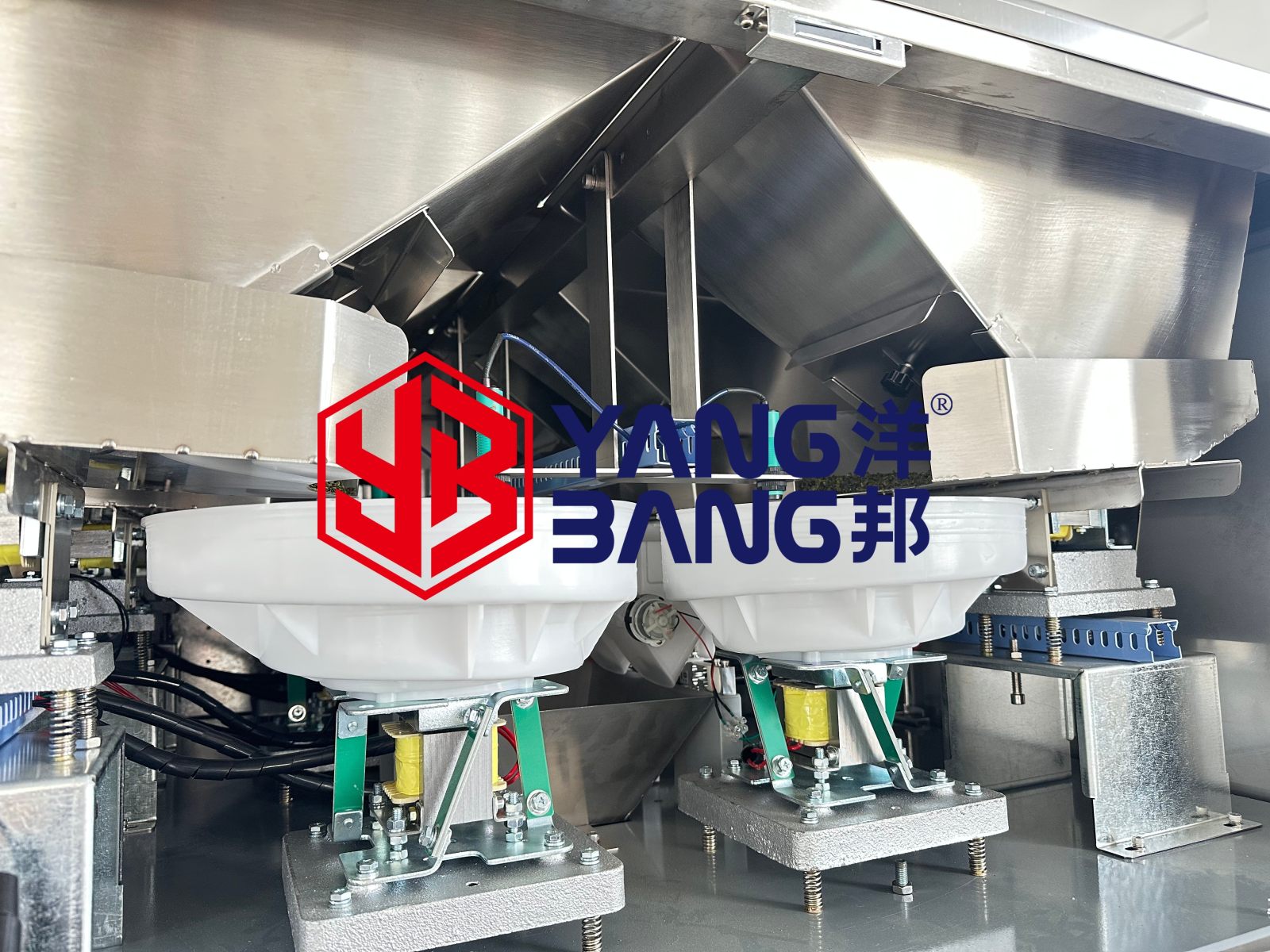

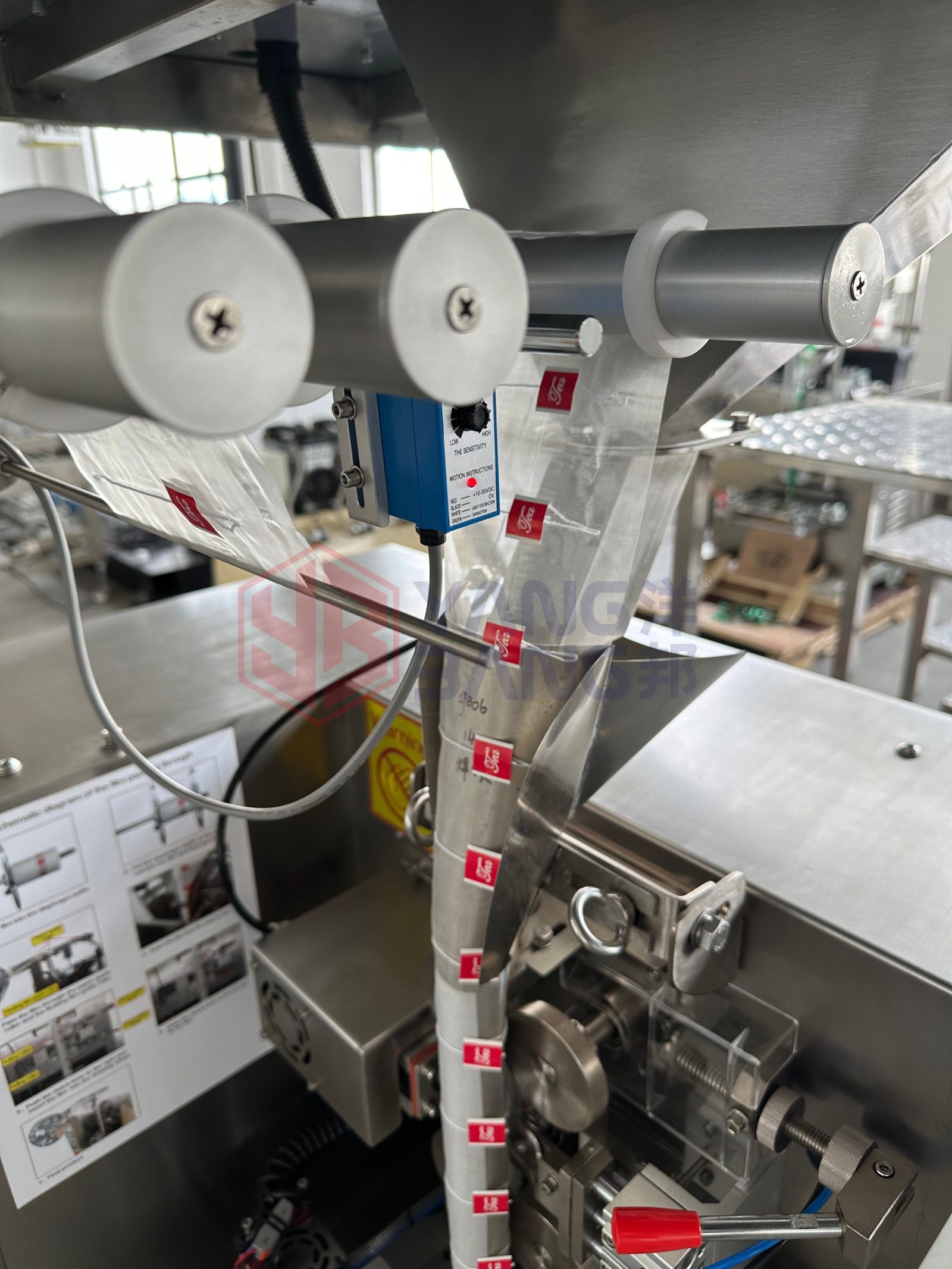

Working process: electronic weighing metering → inner bag forming → filing → inner bag ultrasonic sealing and cutting → inner bag conveying → outer bag forming → inserting inner bag into outer bag → outer bag sealing and cutting → counting → finished product output.
