YB-DK500 Automatic High Output Mobile Casters Equipped Heavy Duty Carton Forming Erector Continuous Working Easy to Operate

YB-DK500 Automatic High Output Mobile Casters Equipped Heavy Duty Carton Forming Erector Continuous Working Easy to Operate

  • YB-DK500 Automatic High Output Mobile Casters Equipped Heavy Duty Carton Forming Erector Continuous Working Easy to Operate
  • YB-DK500 Automatic High Output Mobile Casters Equipped Heavy Duty Carton Forming Erector Continuous Working Easy to Operate
  • YB-DK500 Automatic High Output Mobile Casters Equipped Heavy Duty Carton Forming Erector Continuous Working Easy to Operate
  • YB-DK500 Automatic High Output Mobile Casters Equipped Heavy Duty Carton Forming Erector Continuous Working Easy to Operate
  • YB-DK500 Automatic High Output Mobile Casters Equipped Heavy Duty Carton Forming Erector Continuous Working Easy to Operate
  • YB-DK500 Automatic High Output Mobile Casters Equipped Heavy Duty Carton Forming Erector Continuous Working Easy to Operate

YB-DK500 automatic carton erector delivers 5-15 cartons/min with servo control, easy operation and continuous work for packaging lines.
Submit
PRODUCT SPECIFICATIONS
Technical parameter
Details Images
Model
YB-DK500
Packing speed5-15 cartons/min
Carton length280-500mm
Carton width150-400mm
Carton height150-400mm
Voltage1Phase.220V
Power1.0KW
Machine weight350kg
Machine dimensionL2000mm, W1900mm, H1400mm


Application:
This machine is mainly used for opening various types of cardboard boxes automatically.
Performance feature:
1.This machine has a simple structure, convenient operation, easy maintenance, and is widely used in various industries.

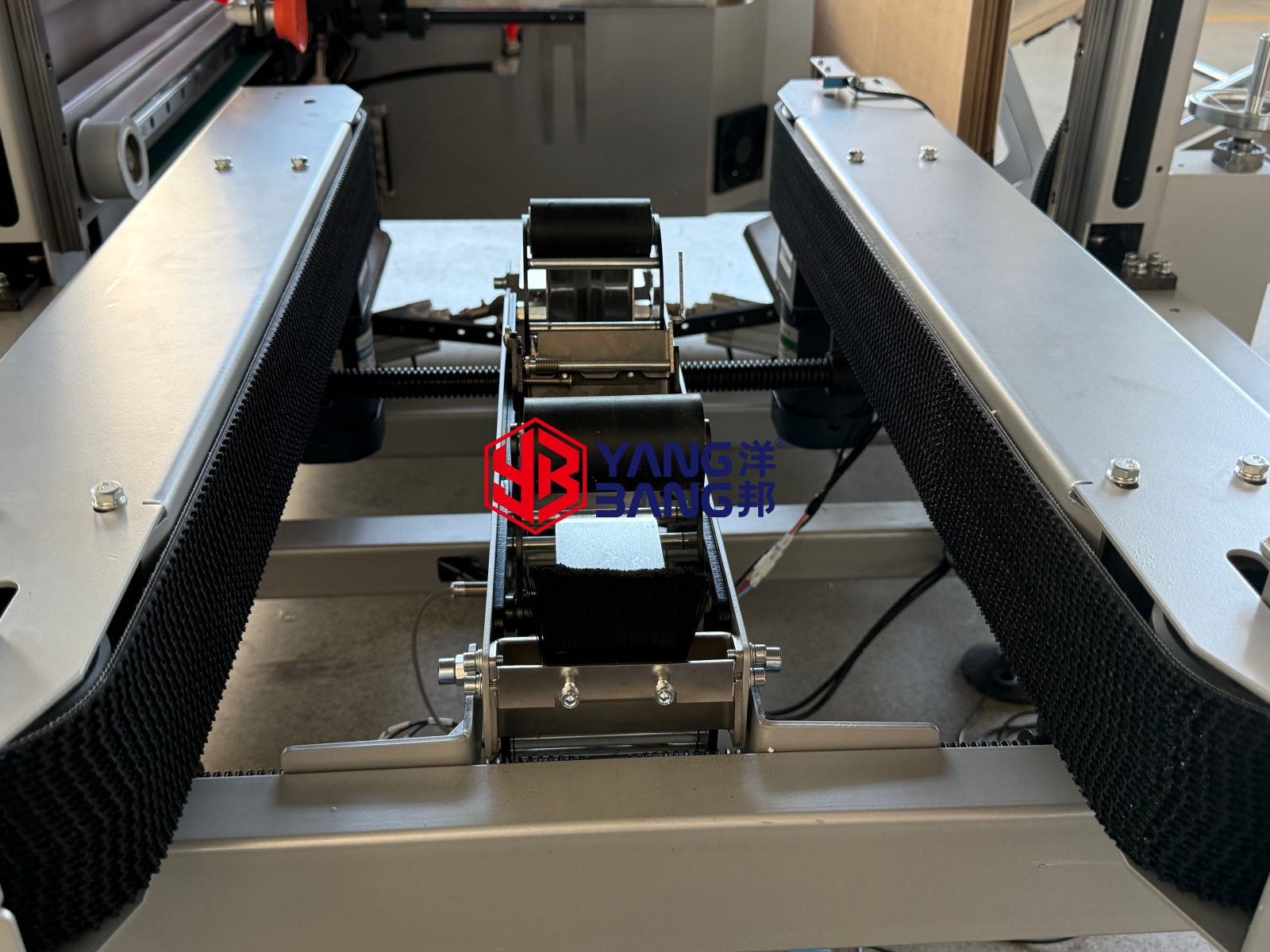

2.The box adopts two servo motors to drive the belts on both sides, which can better ensure the synchronous operation of the belts on both-sides and ensure that the cardboard box is square.
3.The two sides of the box adopt an open structure, which provides better visibility and more convenient operation for the operator.
4.The whole machine is highly automated when paired with a robotic arm, reducing manual labor.
5.Low noise, smooth operation, and does not damage the cardboard box.
6.The box storage adopts a tilted unpowered box storage design, which can replenish cardboard boxes at any time without stopping the machine.
7.It can achieve seamless docking with front-end and back-end devices.
8.The standard model is carbon steel spray painted (frosted silver), which can be customized according to customer needs.

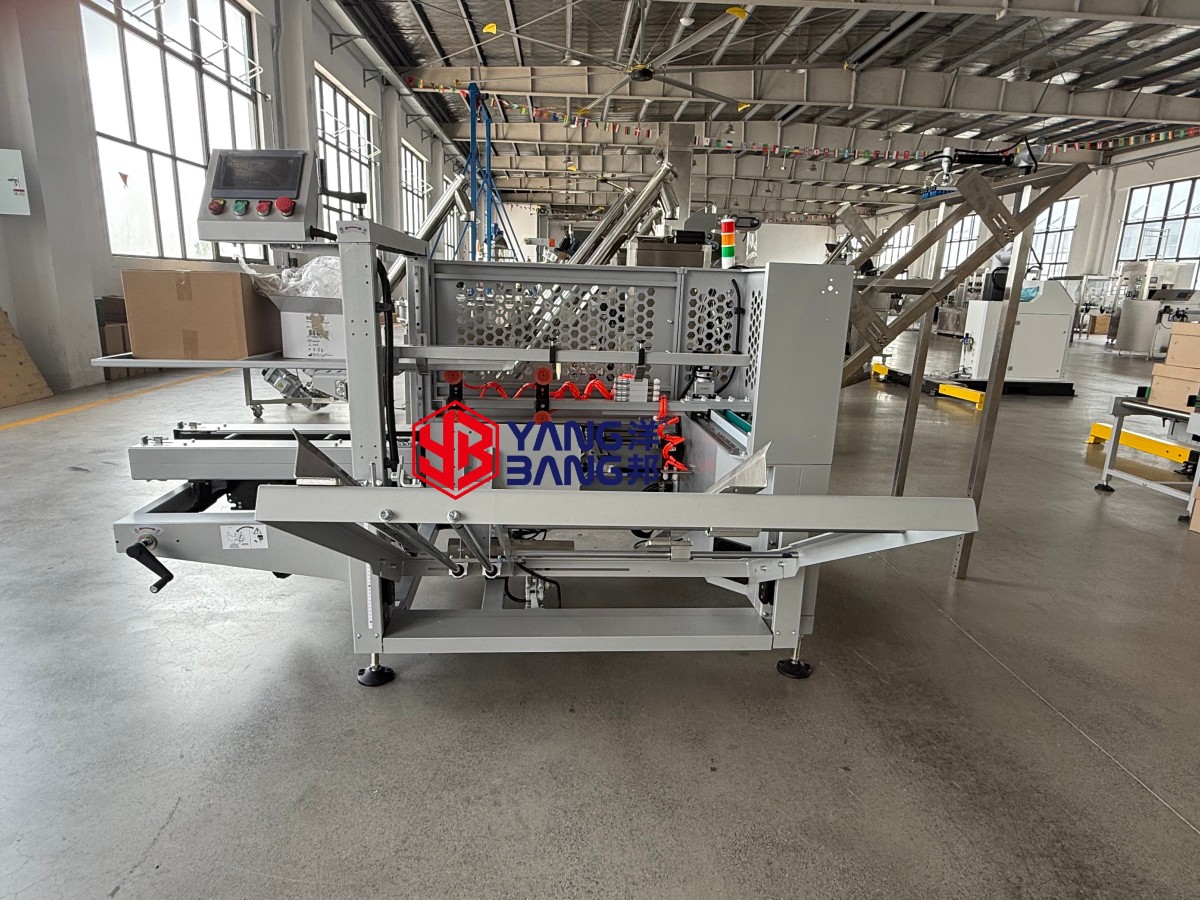

5.4DK500实拍12

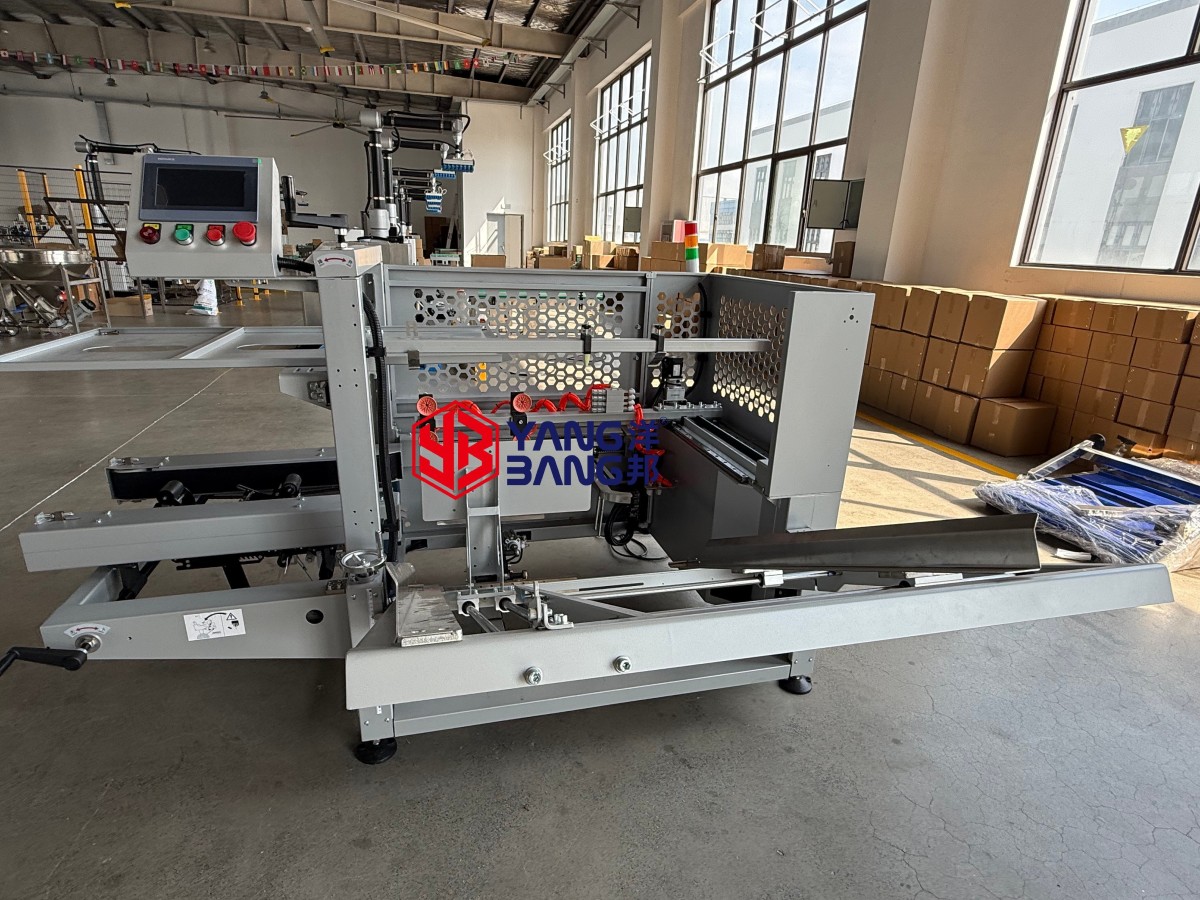

5.4DK500实拍5

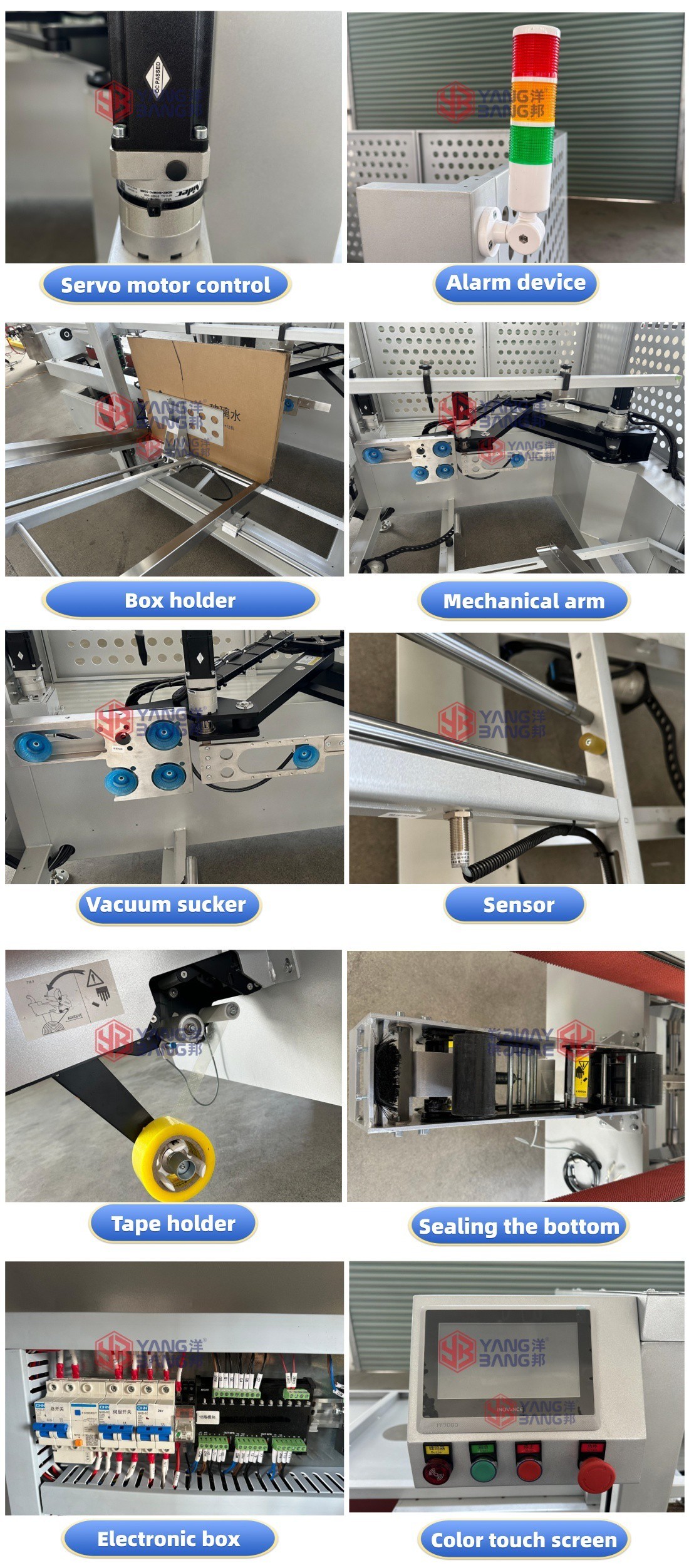

DK500细节图
