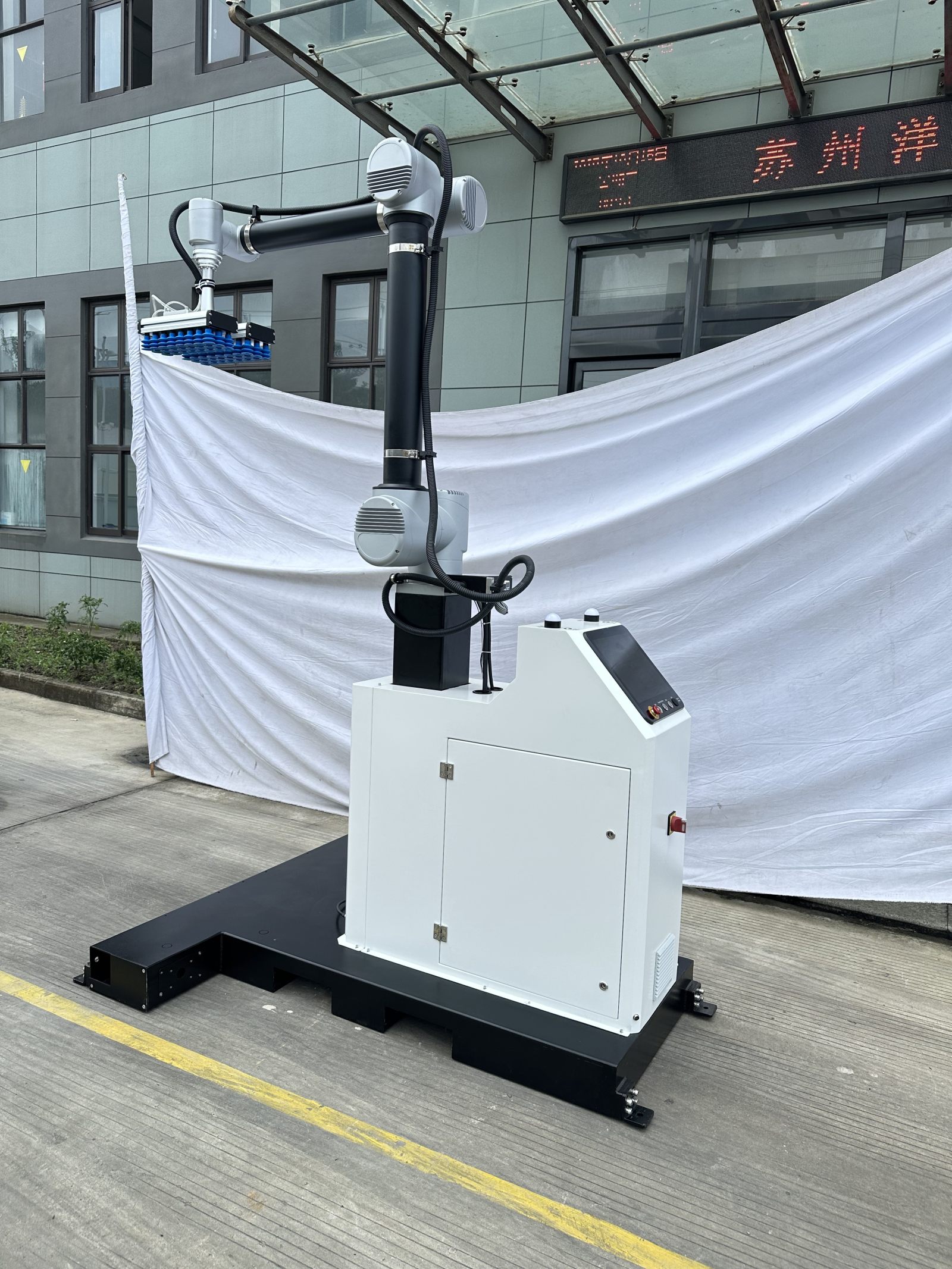

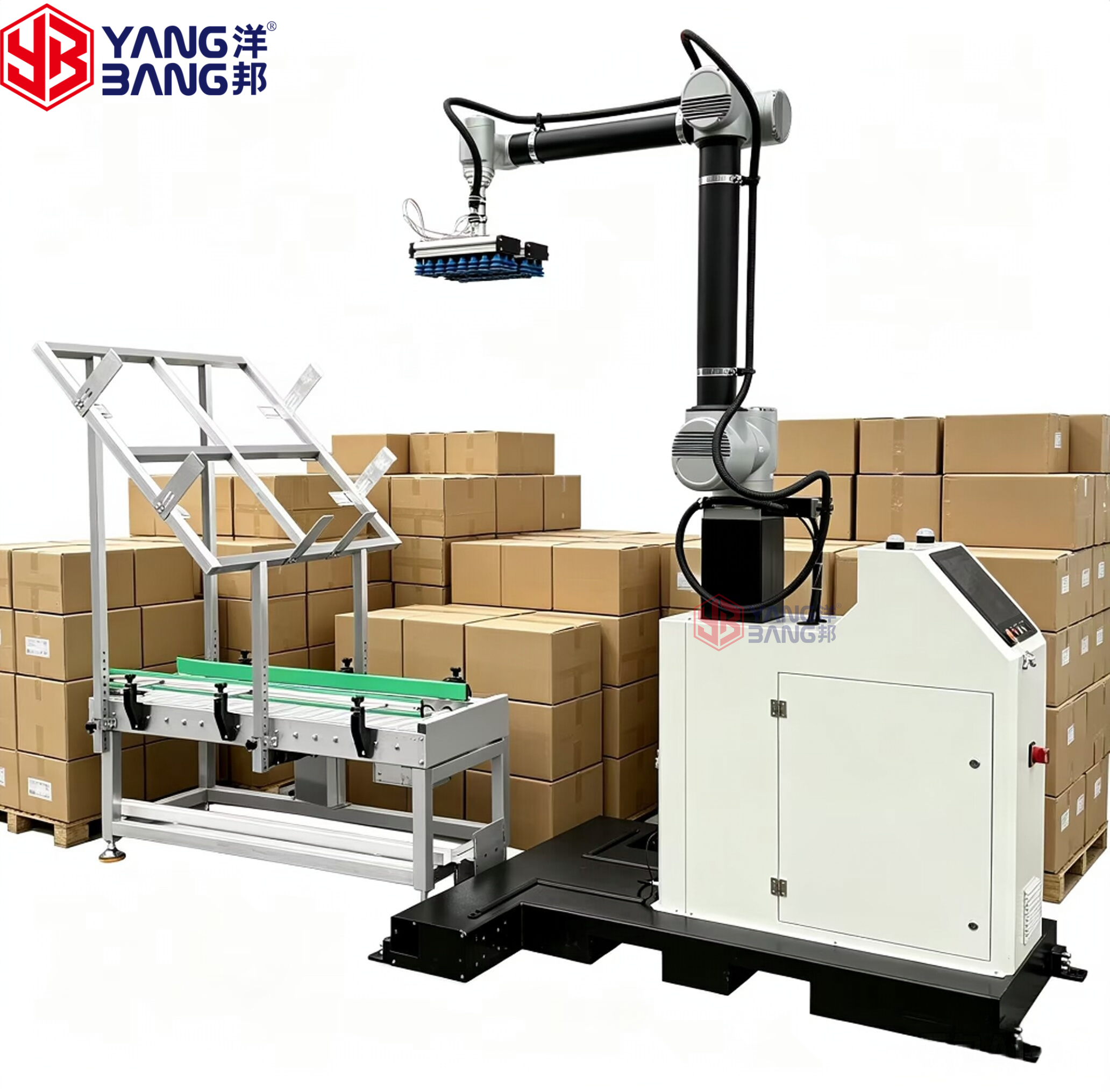

YB-MD35F Automatic Huge Payload Flexible Production Collaborative Stacking Palletizing Robot Can be Customized

YB-MD35F Automatic Huge Payload Flexible Production Collaborative Stacking Palletizing Robot Can be Customized

YB-MD35F collaborative palletizing robot handles 35kg loads for carton stacking in food and chemical packaging lines with safe, flexible automation.
Submit
PRODUCT SPECIFICATIONS
Technical parameter
Details Images

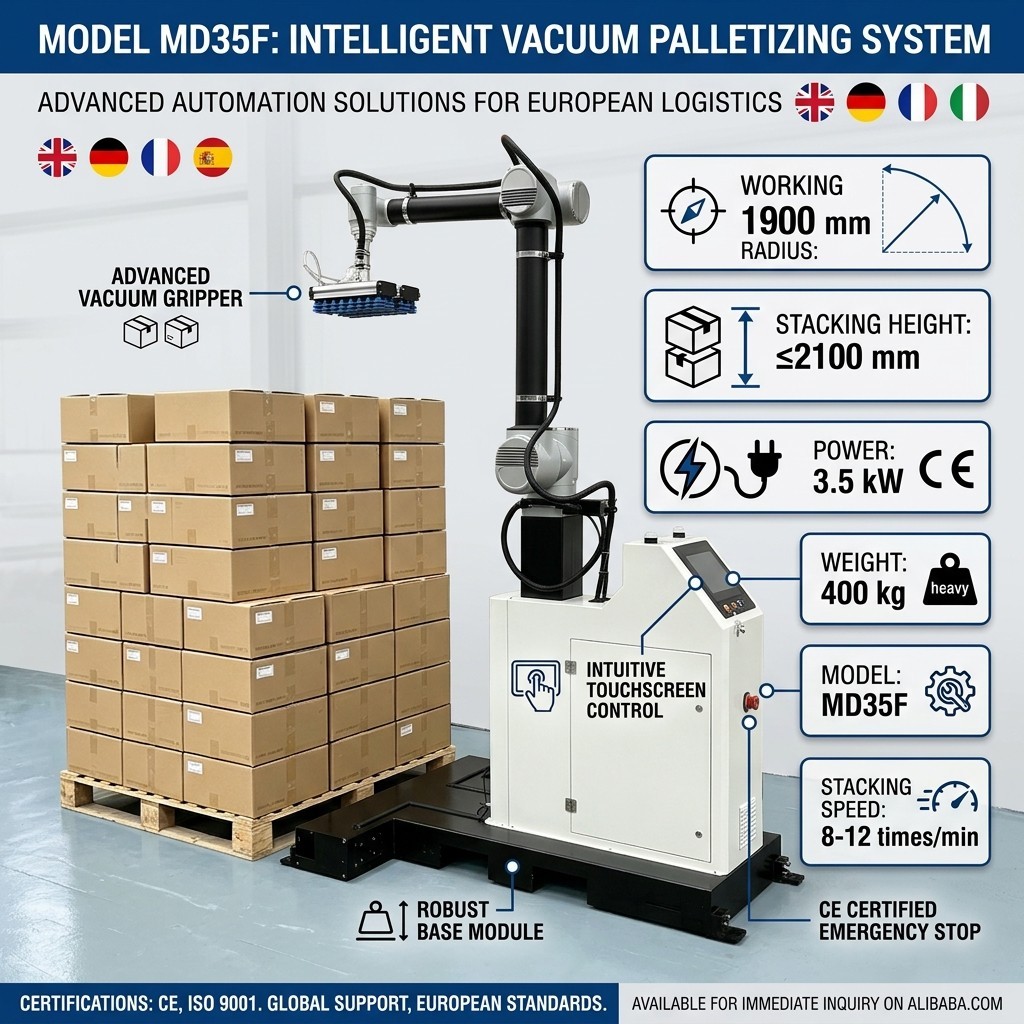

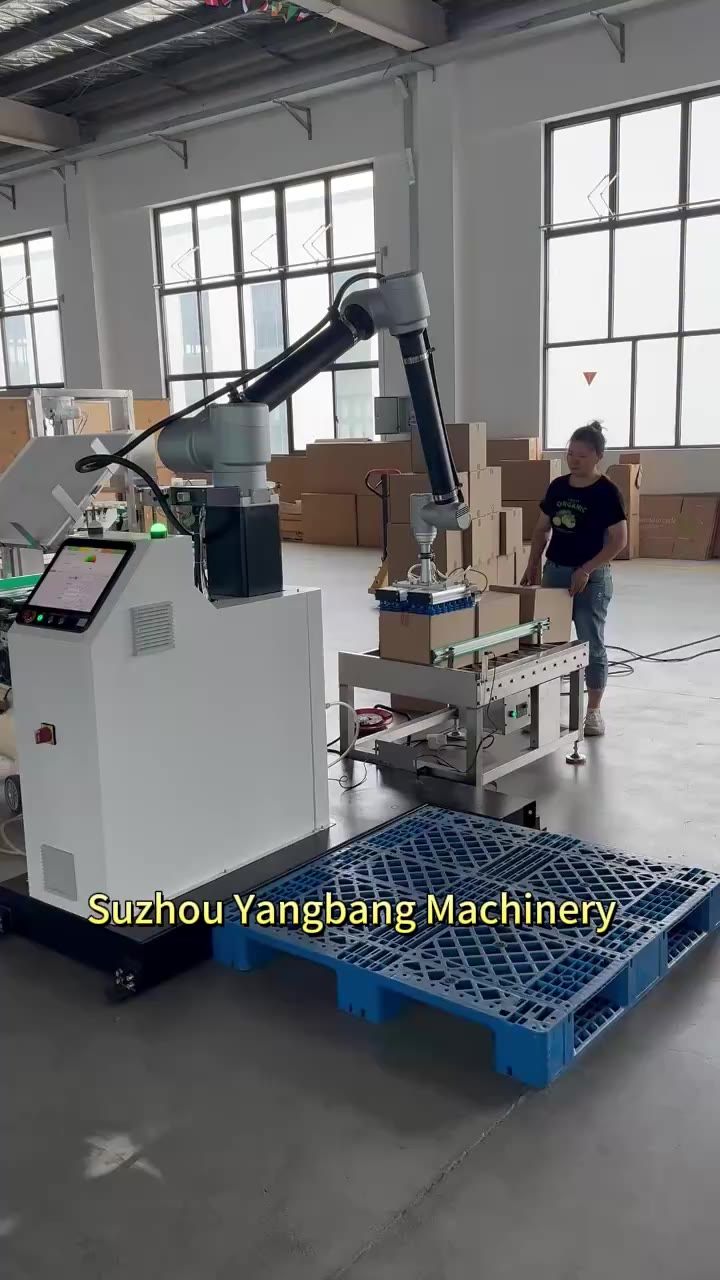

YB-MD35F Collaborative Robot Palletizer 35kg Payload Human Multi Robot Collaboration for Food Daily Chemical Carton Palletizing
Hb62cab59e5154494abba00ab4e8ce39bI
Technical parameter
No
Model
YB-MD35F
1
Power
3.5KW
2
Capacity
8-12times/min
3
Carton box size
L(260-500)mm * W(200-450)mm* H(150-400)mm
4
Maximum stack height
2100mm
5
Max working diameter
1900mm
6
Voltage
1 Phase 220V
7
Payload
35kg
8
Net weight
≈400kg
9
Communication method
TCP/IP
10
Repetitive positioning accuracy
±0.04mm
11
Floor area
About L2000 × W1800
PRODUCT SPECIFICATIONS

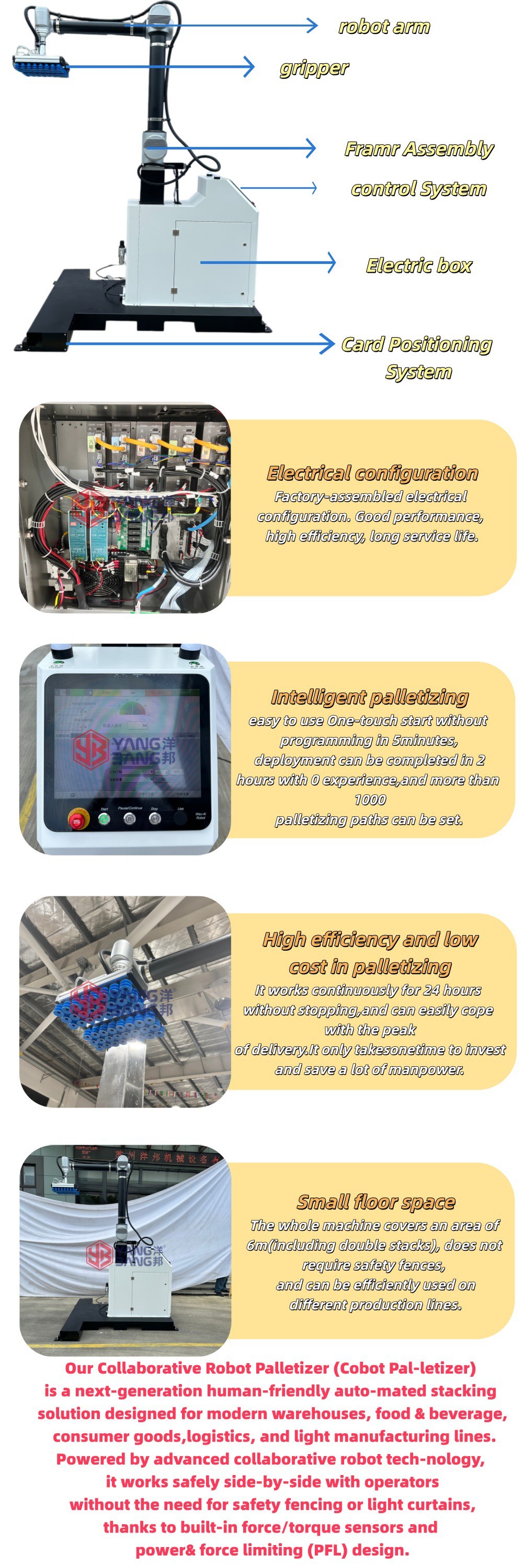

Performance feature:
1. Safe and stable: equipped with industrial-grade force control sensors with high reliability and safety.
2.Supports 10-level collision detection and sensor safety detection, safety functions will not be lost in case of a single fault.
3.Integrated design,light and flexible, with small footprint.
4.New task deployment at the workstation is simple and efficient.
5.Easy programming:graphical programming, simple and efficient, the robot can be operated easily without proficiency in programming languages.
6.Flexible production: fast switching between multiple functional scenarios, flexible production can be realized via human-machine
collaboration, dual-robot collaboration, multi-robot collaboration, etc.
7.The machine casing is made of carbon steel / spray-coated plastic material.
8.Optional: conveyor line, partition device, laser radar sensor, safety fence and light grating sensor, etc.

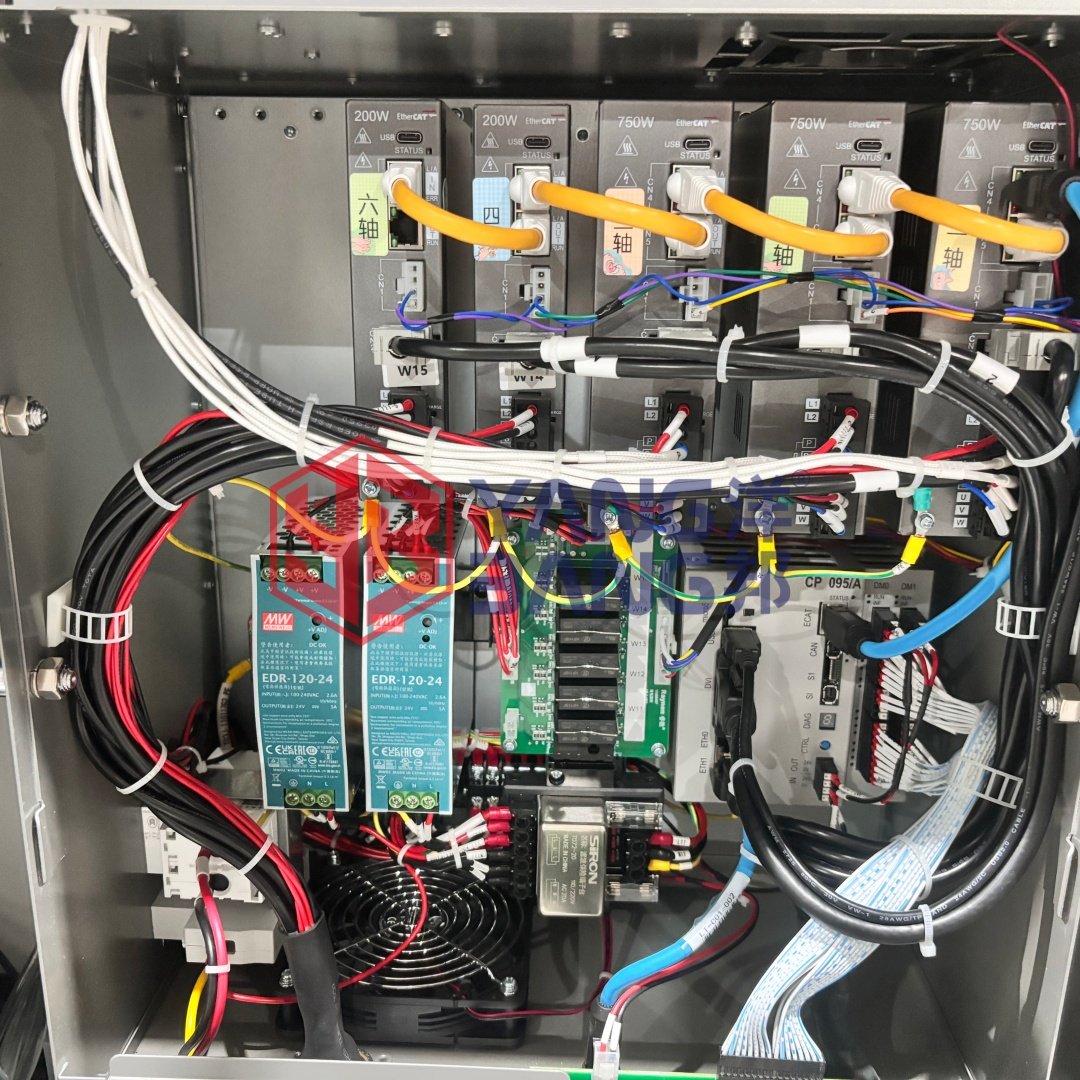

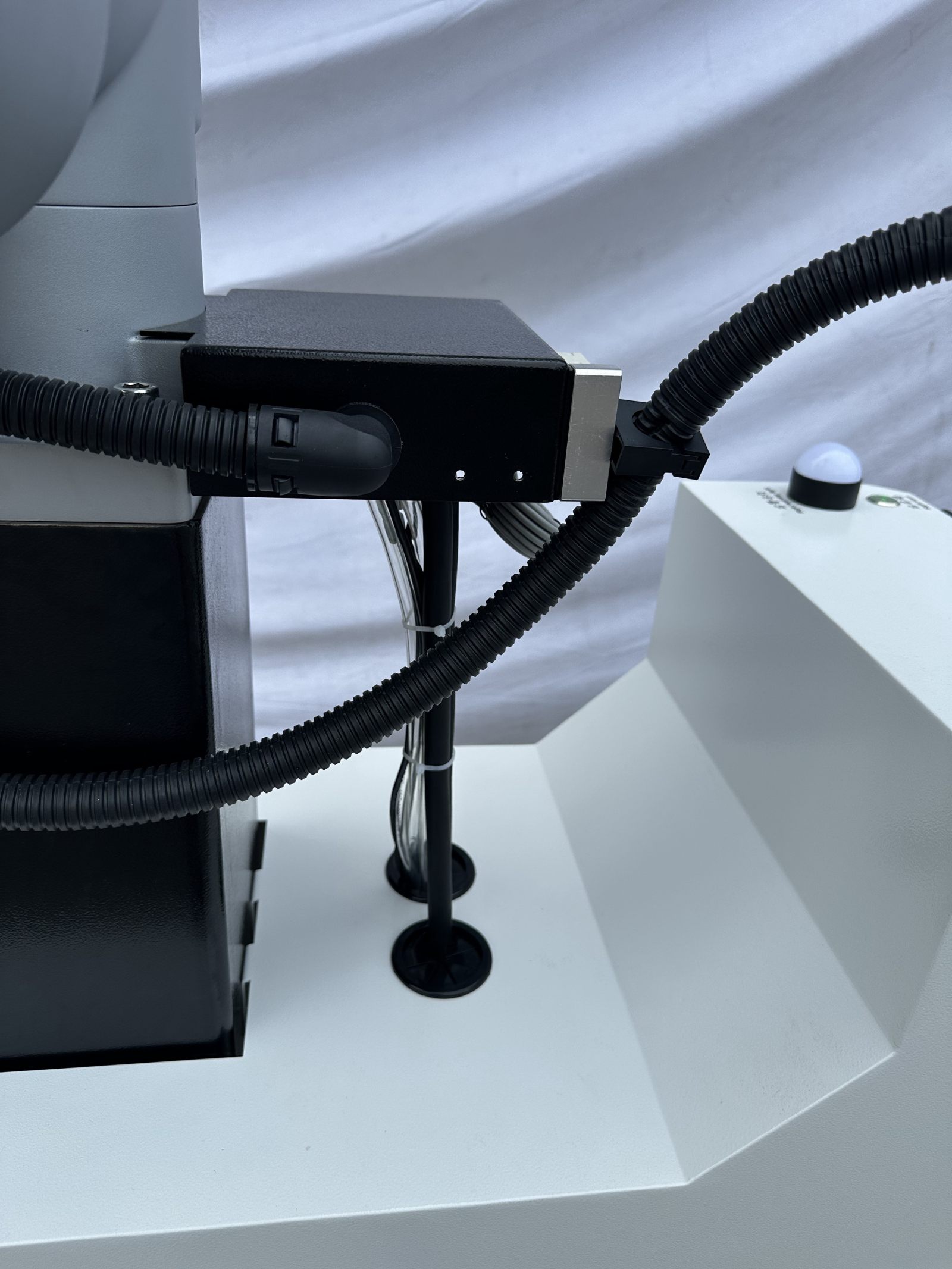

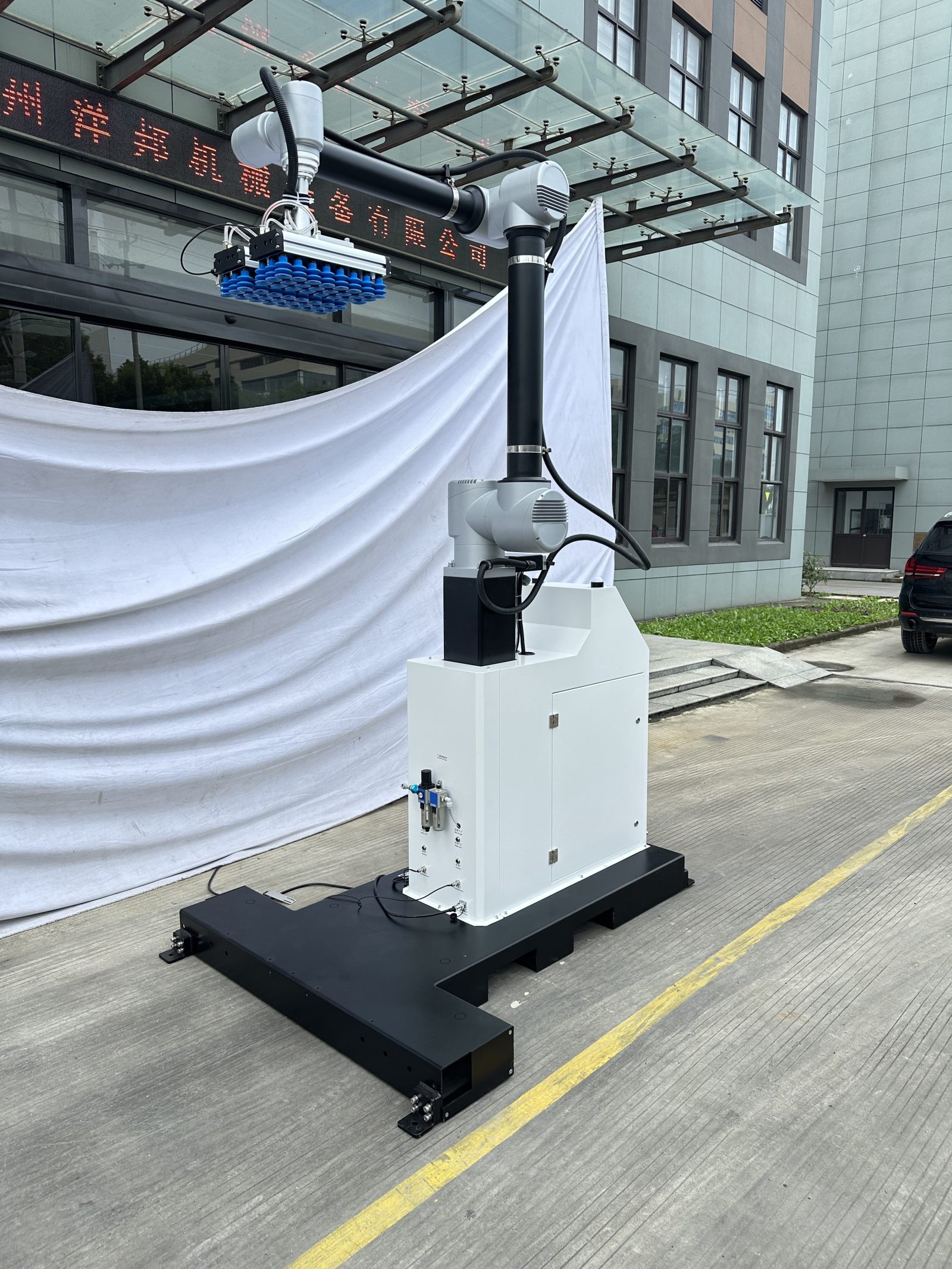

Details Images

Contact Cindy!!



Customize A Machine Specifically For You

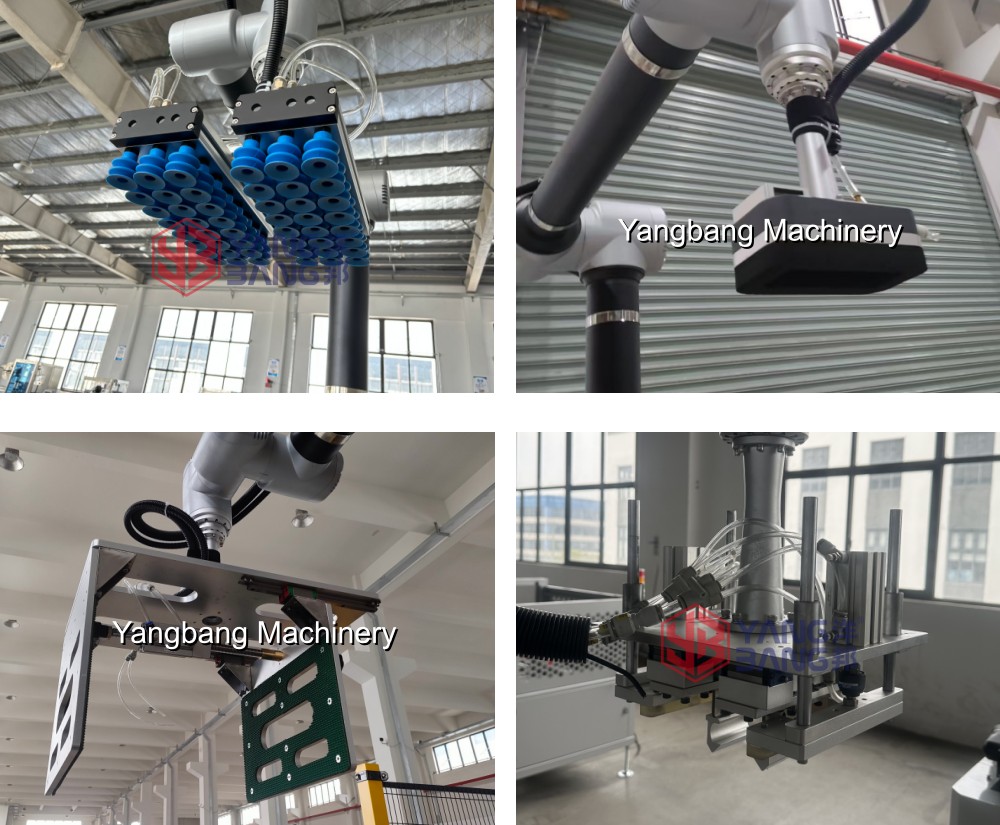

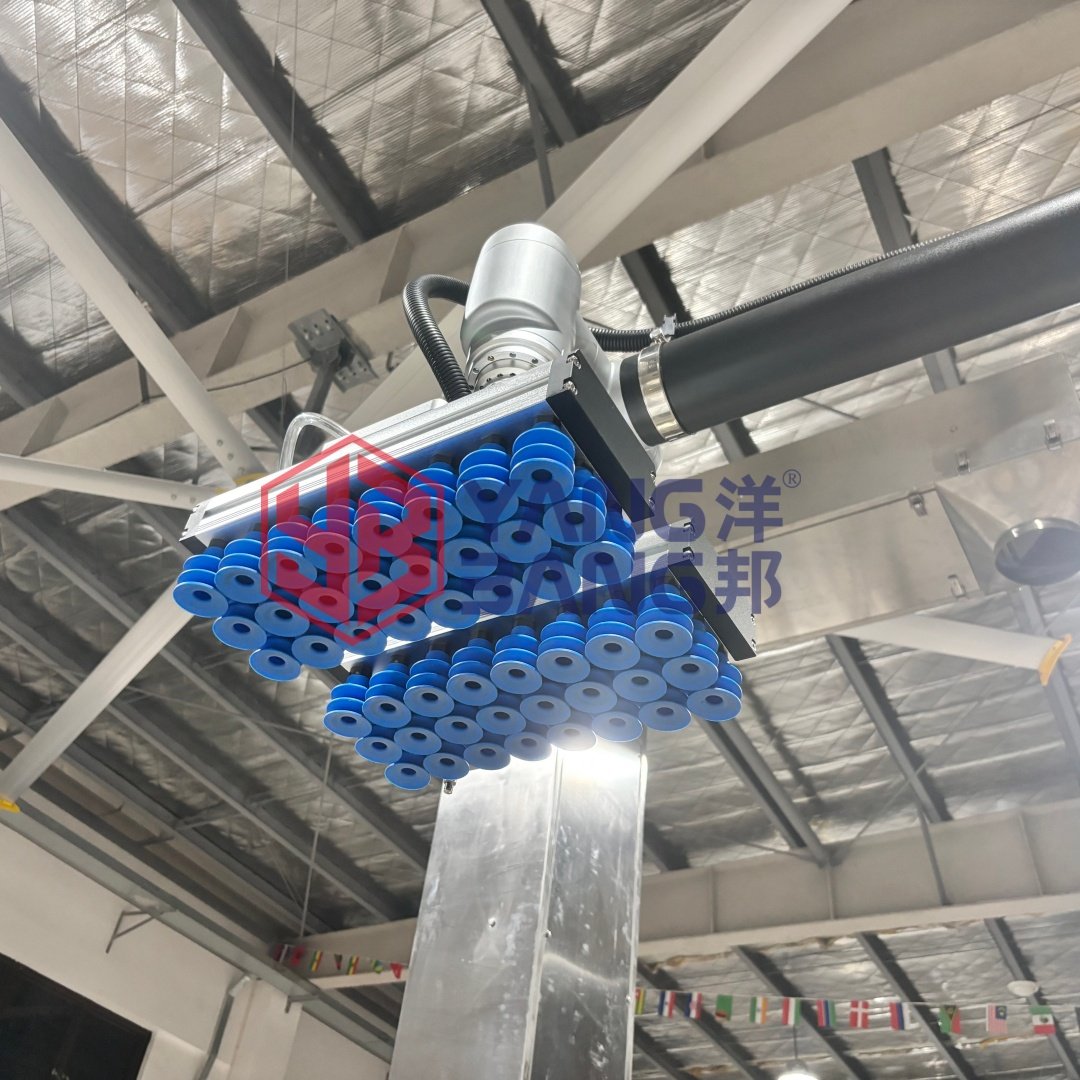

Optional clamping device
Recommend Products

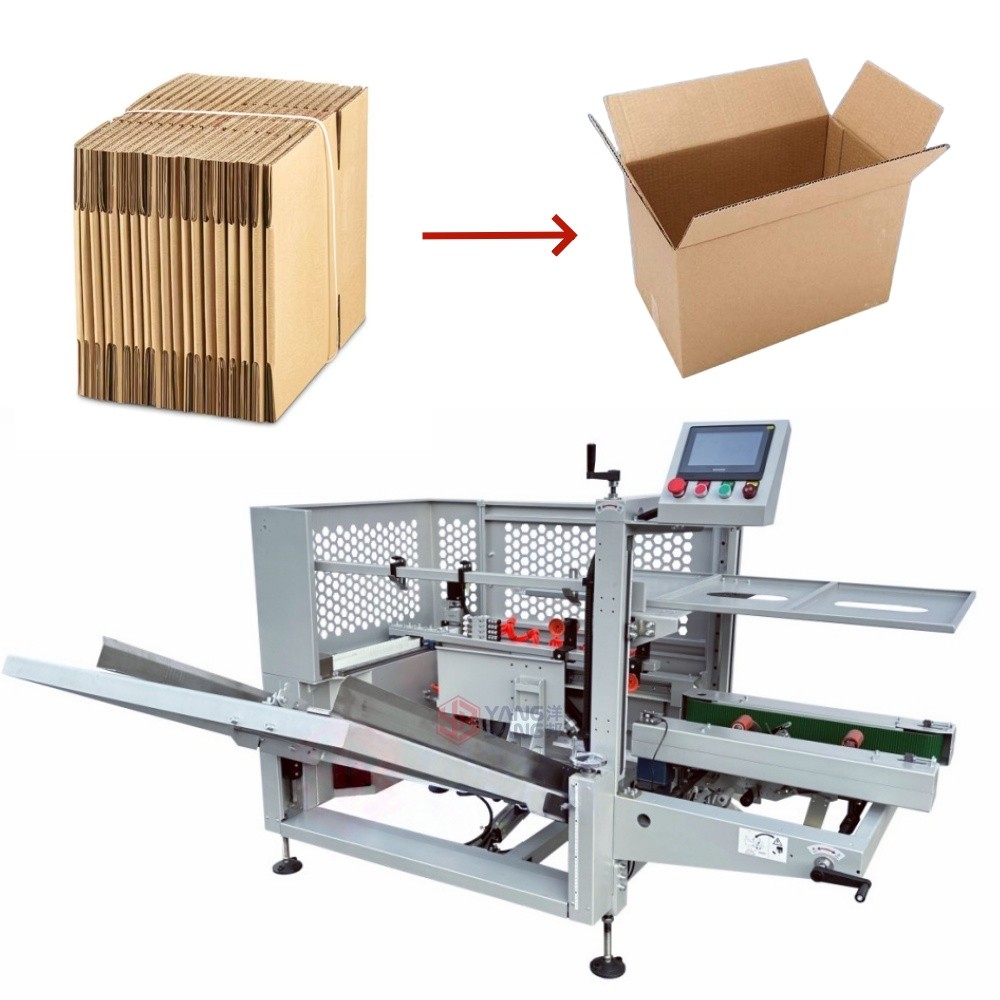

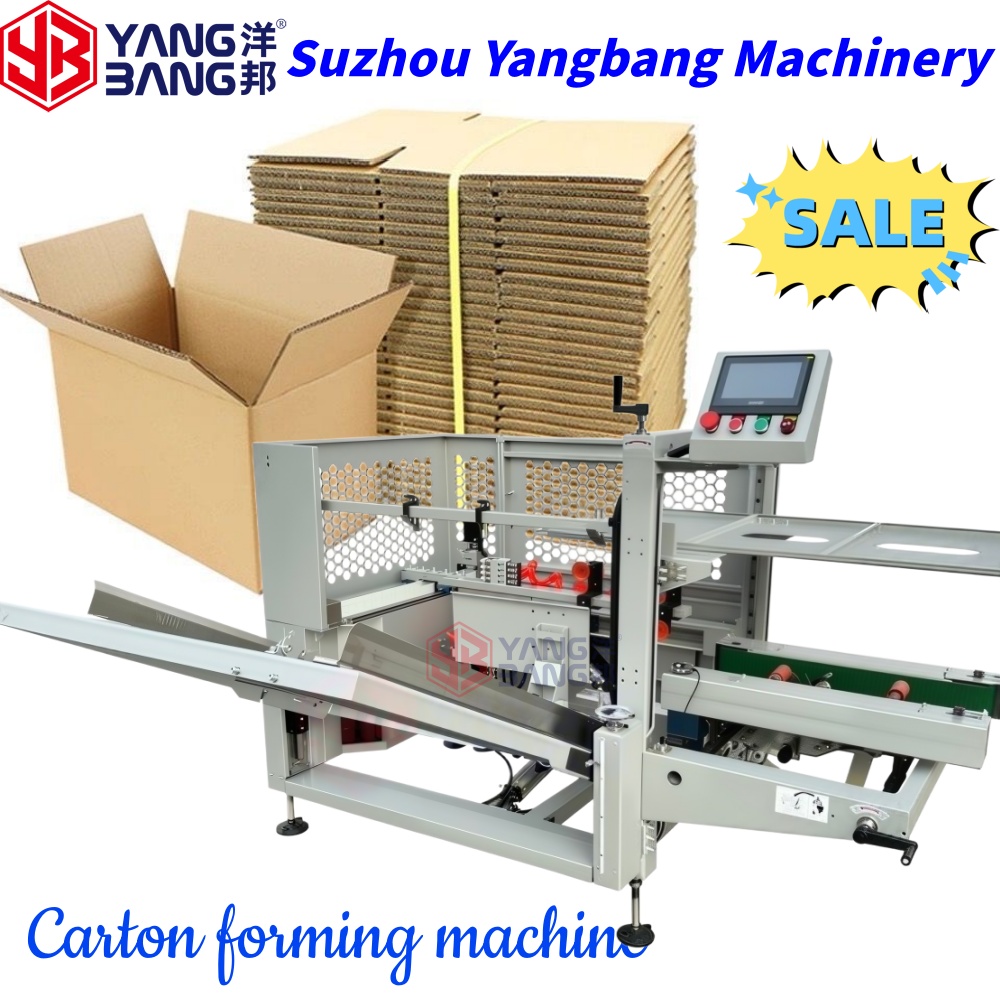

Multi Function YB-DK500 Small Robot Automatic Cartoon Erector Packaging Machine Adhesive Tape Sealing Packing Machine
Click it

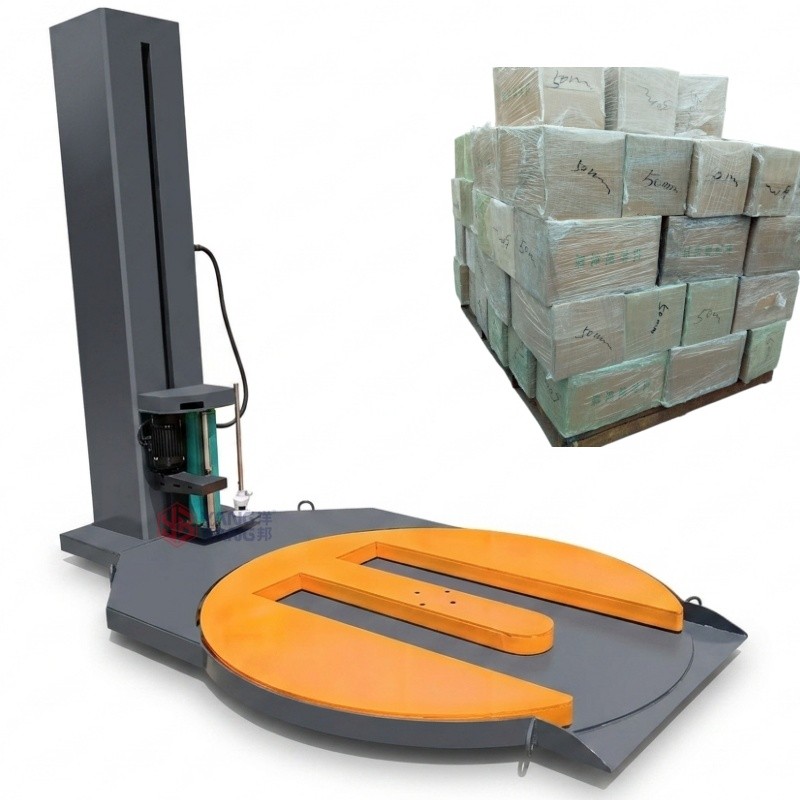

YYB-CR1500 Wound Film Packaging Machine One Click Start Automatic Film Cutting Multiple Items Do Not Require Separate Settings
Click it

  More Machine!!


               More Discount!!


Contact Cindy!!

Company Profile
Certifications
Exhibition

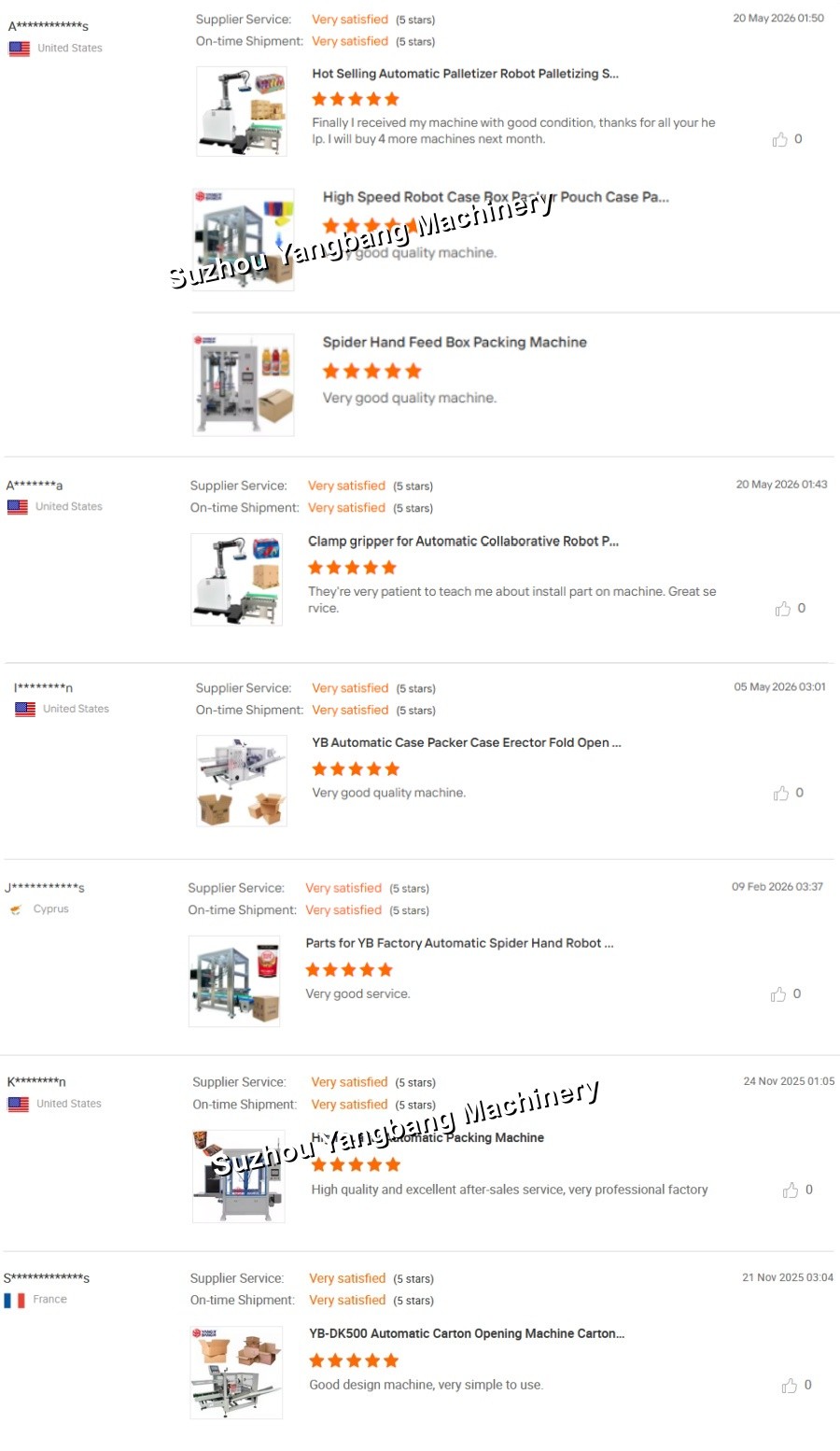

Buyer's feedback


About Us

Our Suzhou Yangbang Machinery Co., Ltd factory covers an area of over 20 acres, with modern factories covering nearly 20000 square meters and more than 100 employees. Our factory has established the engineering technology research center for complete filling and packaging machines, with a team of over 20 R&D engineers. Our filling and production lines are widely used for eye drop, oral liquid, injection, disinfectant, capsules, tablets, health care products, protein powder, water, juice, energy drink, wine, medicinal wine, honey, food paste, yogurt, essential oil, perfume, mosquito repellent liquid, nail Polish, mascara, eyeliner liquid, lip gloss, lipstick, face cream, shampoo, bath cream, detergent, veterinary medicine, pesticide and other products. Our packaging and production lines are widely used for food, commodity, medince and cosmetic products. Over the years, Yangbang people have grown and grown in difficult environment, relying on the spirit of hard work, perseverance, and optimism, and have gradually formed a corporate culture with Yangbang characteristics.
Pictures of the gate of Yangbang Machinery Factory
稿定设计-2

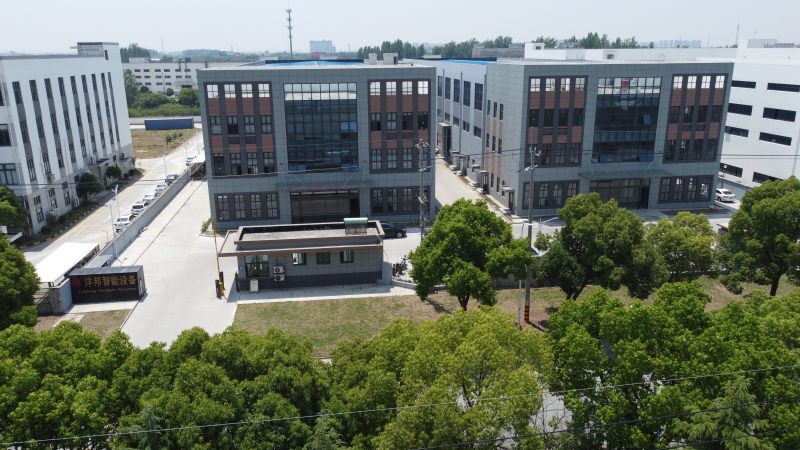

Exterior view of Yangbang Machinery factory workshop

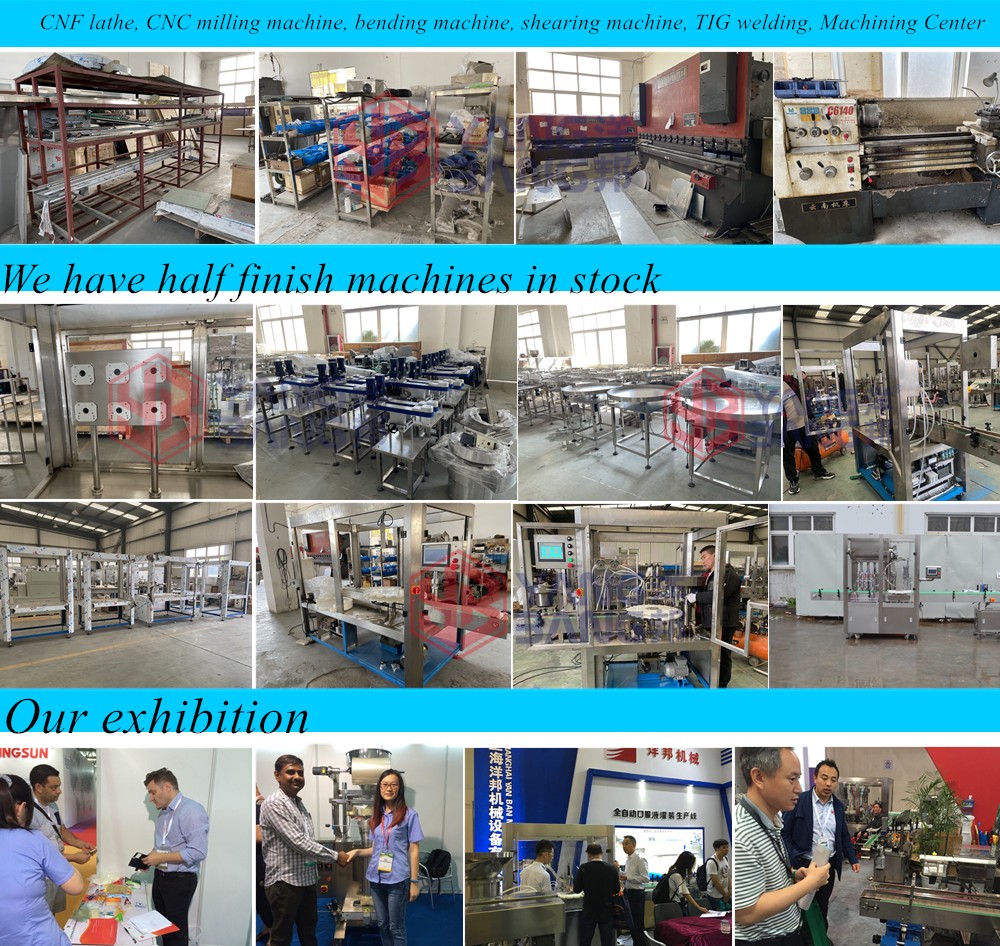

Production and Equipment
