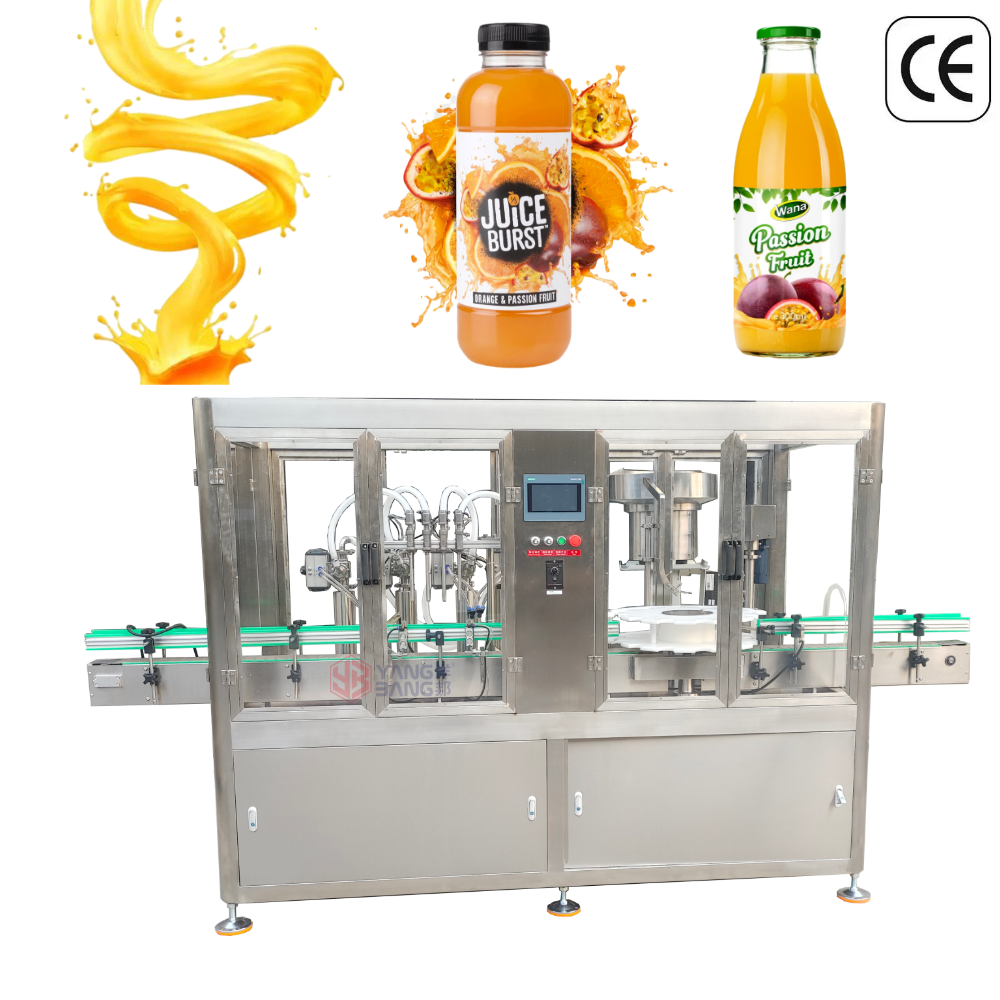

YB-YG4 Series High Precision Automatic Juice Bottling Plant with Rotary Capping Machine for PET and Glass Bottles Juice Filler

YB-YG4 Series High Precision Automatic Juice Bottling Plant with Rotary Capping Machine for PET and Glass Bottles Juice Filler

Submit
Product Specifications
Technical parameter
Details Images

YB-YG4 Series High Precision Automatic Juice Bottling Plant with Rotary Capping Machine for PET and Glass Bottles Juice Filler

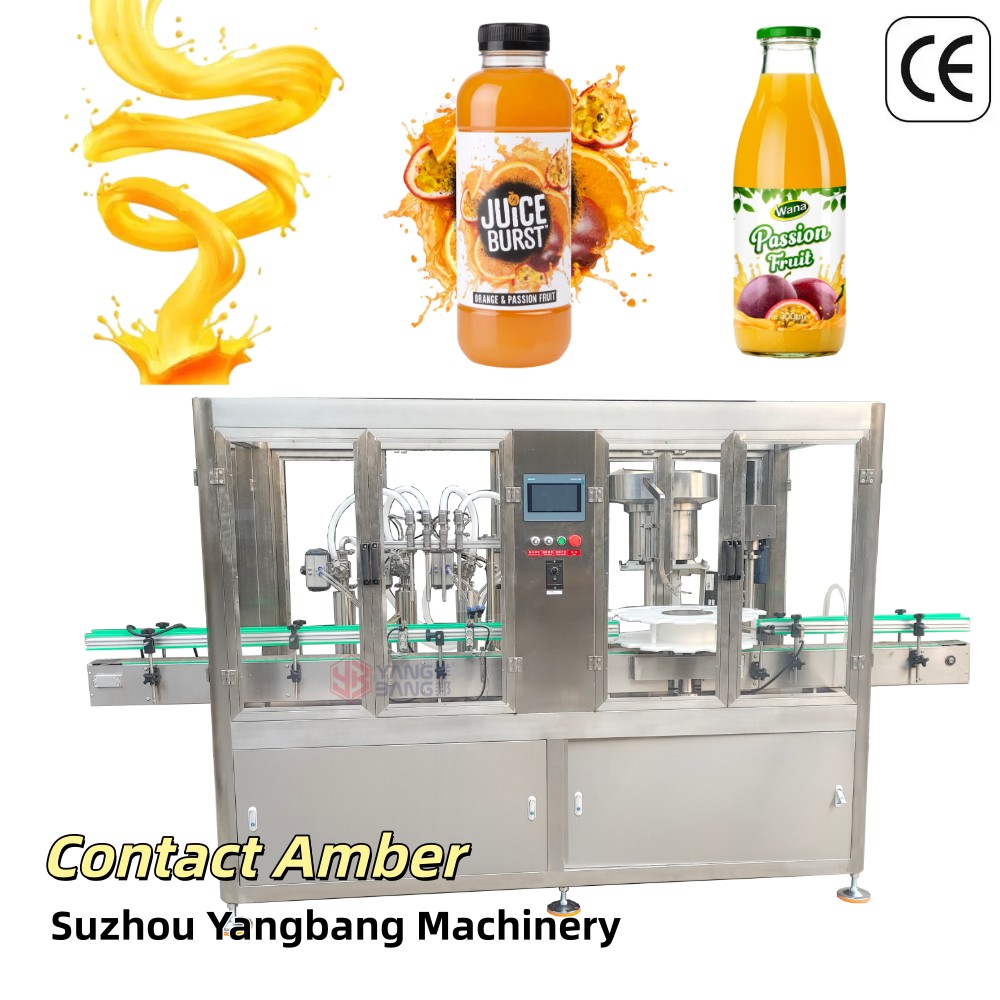

YG4 Juice Main Image 2_Copy

Usage

This machine is mainly used for essential oil, syrup, drinks, soybean sauce, vinegar, cod-liver oil, olive oil, liquid calcium, wine, liquid fertilizer, toner, hair oil, laundry detergent, ink, disinfectant, injection, industrial alcohol and various medical liquid filling and capping.


Features
1. Adopts plunger type metering pump filling, high precision;The structure of pump adopts fast disassembly institutions,   easy to clean and disinfect.
2. PLC control system, color touch screen display, machine has function of counting automatically.
3. The filling nozzle was equipped with drip-proof device.
4. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent bubbles.
5. Machine body is made of 304 stainless steel, full compliance with GMP standard.


Model
YB-YG4
Filling head number
4
Capping head number
1
Filling volume
50-500ml
Capacity
10-40bottles/min
Filling accuracy
≥99%(depends on product)
Power supply
1Ph.220V, 50/60Hz
Power
2.5 kw
Net weight
700kg
Overall dimension
L2500*W1800*H2000mm


Full Automatic Filling Machine Production Line Essential Oils Bottle Liquid Filling Capping Machine

1787407005949787581066153984.png@!w400

Machine can work alone or connect with whole work line

1787406701949786304437456896.jpg@!w400

1787405801949782529521913856.png@!w400

1787405801949782531245760512.png@!w400


About Us

Our Suzhou Yangbang Machinery Co., Ltd factory covers an area of over 20 acres, with modern factories covering nearly 20000 square meters and more than 100 employees. Our factory has established the engineering technology research center for complete filling and packaging machines, with a team of over 20 R&D engineers. Our filling and production lines are widely used for eye drop, oral liquid, injection, disinfectant, capsules, tablets, health care products, protein powder, water, juice, energy drink, wine, medicinal wine, honey, food paste, yogurt, essential oil, perfume, mosquito repellent liquid, nail Polish, mascara, eyeliner liquid, lip gloss, lipstick, face cream, shampoo, bath cream, detergent, veterinary medicine, pesticide and other products. Our packaging and production lines are widely used for food, commodity, medince and cosmetic products. Over the years, Yangbang people have grown and grown in difficult environment, relying on the spirit of hard work, perseverance, and optimism, and have gradually formed a corporate culture with Yangbang characteristics.

Pictures of the gate of Yangbang Machinery Factory
稿定设计-2
Exterior view of Yangbang Machinery factory workshop

Production and Equipment

  • Yangbang Machinery Production Workshop
  • Packaging Machinery Workshop
  • Yangbang Machinery Workshop
  • machine tool
  • Machine Tool Machining
  • Milling
  • CNC Machine Tool Milling
  • Yangbang Machinery Product Showcase
  • Packaging Machinery Workshop

FAQ

Q1: Are you a factory or trading company?
A:Suzhou Yangbang Machinery is a factory who has 25 years experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 25 years, and now we have our own brands and own designed machines for sale!
Q2: How long you need to ship the machines after order?
A: All machines can be ready and shipped in 15 or 30 days after order!
Q3: What's the payment you prefer?
A: We accept TT/Western union/Cash/LC, Trade assurance order.
Q4:Why should I choose your packing and filling machine ?
A:We have been specialized in filling and packing machine for more then ten years,and until now have exported machines to more than 100 countries.
Q5:What is your warranty and after-sale service?
A:One year warranty and lifelong after-sale service via skype/email/mobile/whatsapp/etc. Also technical service overseas is available.
Q6:Can I visit your factory and send team for learning and inspect?
A: Yes sure no problem.We will do our best to teaching you how to use the machine.
Q7:What is our advantages?
1. Competitive price.
2. Excellent technical support.
3. Best service and best after-sale service.
4. Over 25 years experience.
