YB-GD210K-08 doypack packing machine for coffee beans, tea and granules with PLC control, accurate weighing and reliable zipper bag sealing.
Submit
PRODUCT SPECIFICATIONS
Technical parameter
Details Images
Performance characteristics:

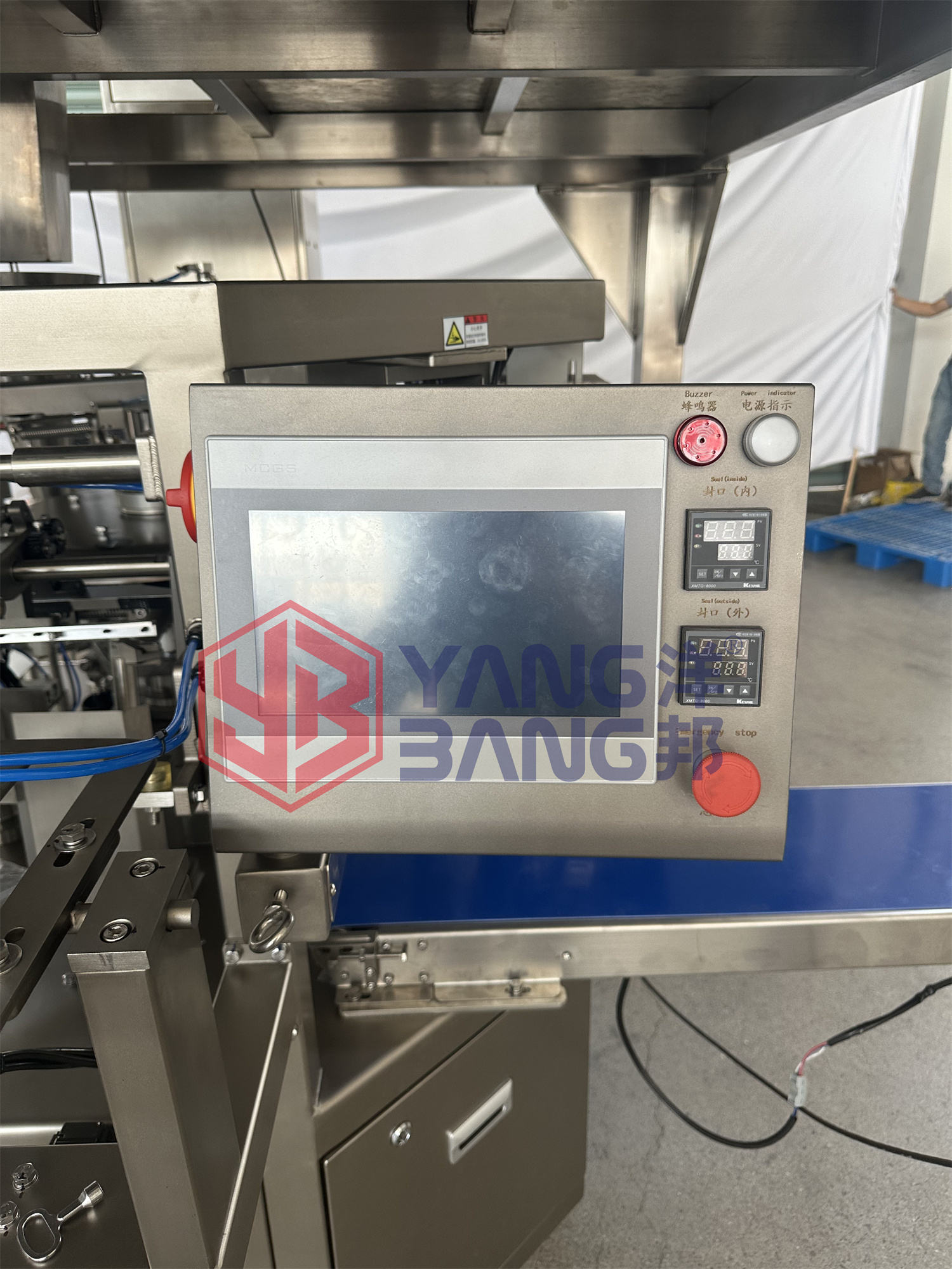

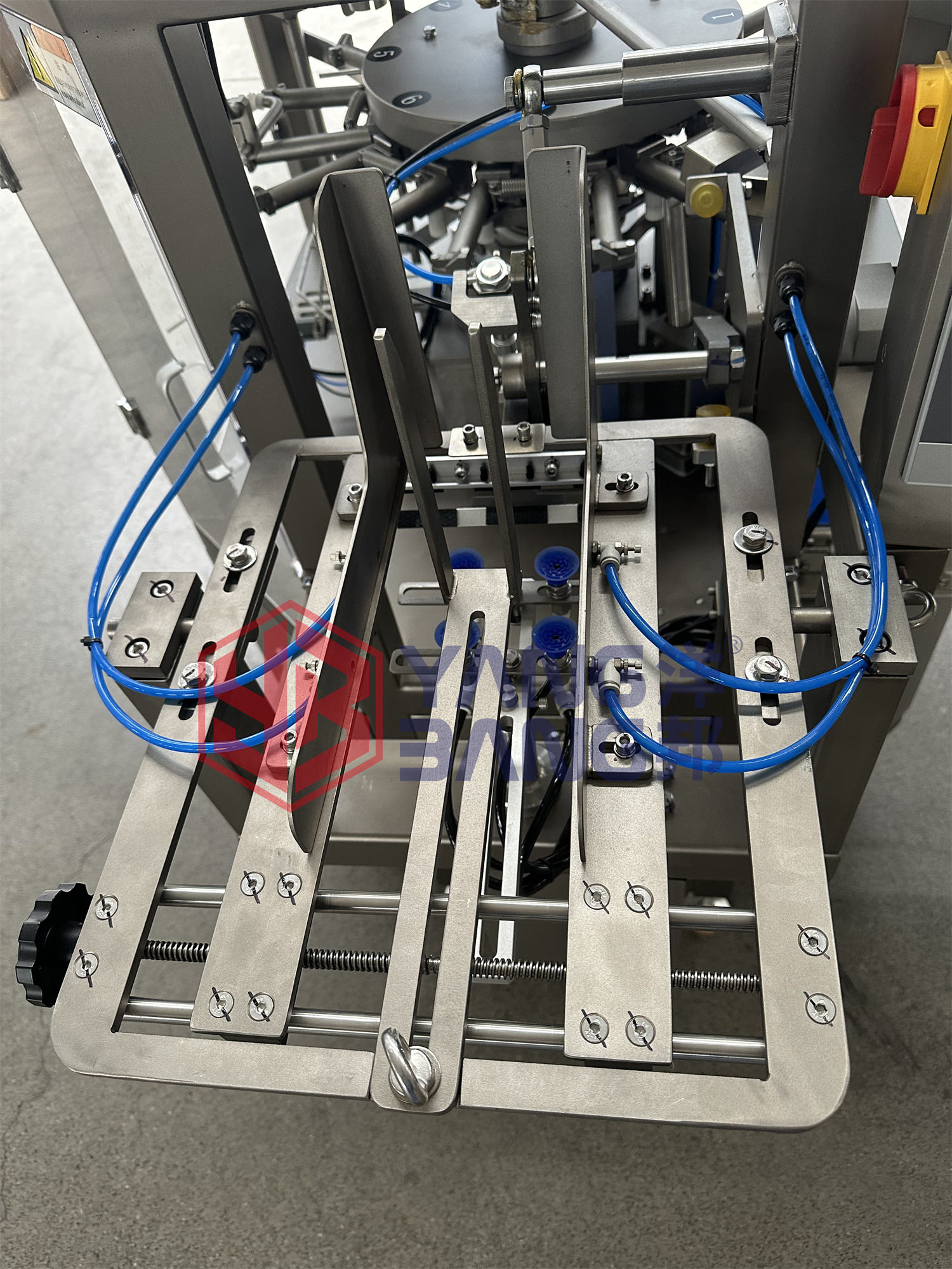

1. Adopt German Siemens PLC control, touch screen man-machine interface control system; high reliability and intelligence, and equipped with safety protection. 2. In the automatic operation mode of the packaging machine: no feeding when there is a bag missing, unsuccessful bag opening without feeding and sealing, automatic shutdown function under low air pressure. 3. The advantages of the automatic detection function: if the bag is not opened or the bag is incomplete, no material is added, no heat sealing, the bag can be reused, no material is wasted, and the production cost is saved for the user. 4. Safety device: when the working air pressure is abnormal or the heating tube is faulty, it will give an alarm prompt. 5. Bag width adjustment: There is an automatic adjustment device to facilitate product replacement. 6. The contact part between the equipment and the material is made of 304 stainless steel. 7. The machine can be installed with different cutting devices to pack different products: such as linear scale, combined scale, screw device, piston pump device, etc.

Work flow:feed bags manually-automatic bag retrieval-automatic date printing-automatic bag opening-electronic metering and filling-inspection-sealing-sealing and shaping-finished product output.


NoModelYB-GD210K-08
1Packing weight10-1000g
2Bag length90-250mm
3Bag width100-210mm
4Application productGranular products
5Packing accuracy≤±1%
6Power2.2KW
7Machine weight1500kg
7Machine dimensionL1650mm, W1550mm, H3000mm
